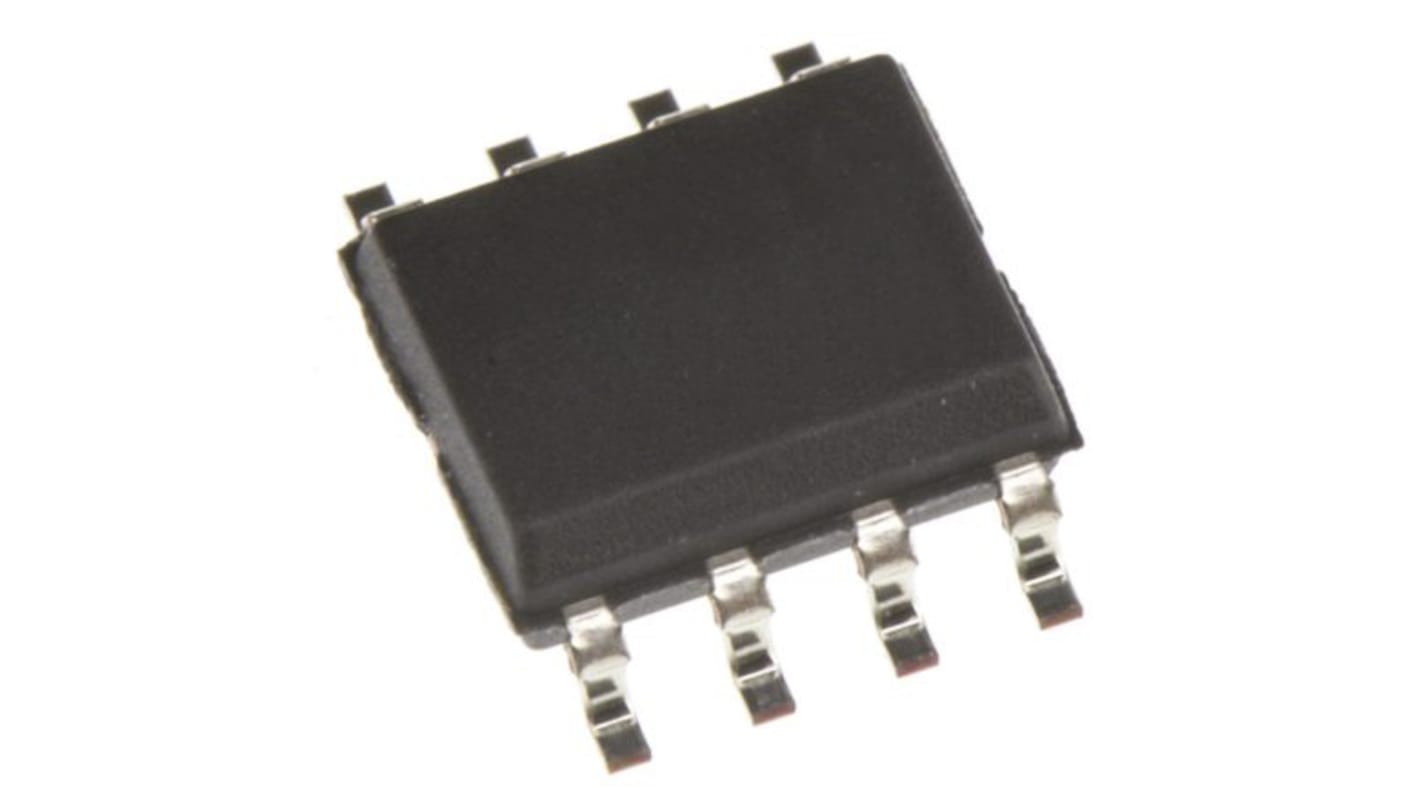

STMicroelectronics Voltage Supervisor 8-Pin SO, STM706TM6F
- RS Stock No.:
- 189-1877
- Mfr. Part No.:
- STM706TM6F
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£1,125.00
(exc. VAT)
£1,350.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.45 | £1,125.00 |
*price indicative
- RS Stock No.:
- 189-1877
- Mfr. Part No.:
- STM706TM6F
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Number of Supervisors | 1 | |
| Watchdog Timer | Yes | |
| Manual Reset | Yes | |
| Power Fail Detection | Yes | |
| Output Driver | Active High | |
| Mounting Type | Surface Mount | |
| Maximum Reset Active Time | 200ms | |
| Package Type | SO | |
| Pin Count | 8 | |
| Dimensions | 5 x 4 x 1.5mm | |
| Maximum Monitored Voltage | 3.15V | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Monitored Voltage | 3V | |
| Minimum Operating Supply Voltage | 1 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Number of Supervisors 1 | ||
Watchdog Timer Yes | ||
Manual Reset Yes | ||
Power Fail Detection Yes | ||
Output Driver Active High | ||
Mounting Type Surface Mount | ||
Maximum Reset Active Time 200ms | ||
Package Type SO | ||
Pin Count 8 | ||
Dimensions 5 x 4 x 1.5mm | ||
Maximum Monitored Voltage 3.15V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Monitored Voltage 3V | ||
Minimum Operating Supply Voltage 1 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
The STM70x supervisors are self-contained devices which provide microprocessor supervisory functions. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the case of RST). These devices also offer a watchdog timer (except for STM708T/S/R) as well as a power-fail comparator to provide the system with an early warning of impending power failure. The STM706P device is identical to the STM706R device, except its reset output is active high. These devices are available in a standard 8-pin SOIC package or a space-saving 8-pin TSSOP package.
Precision VCC monitor
T: 3.00 V ≤ VRST ≤ 3.15 V
S: 2.88 V ≤ VRST ≤ 3.00 V
R: STM706P: 2.59 V ≤ VRST ≤ 2.70 V
RST and RST outputs
200 ms (typ.) trec
Watchdog timer - 1.6 s (typ.)
Manual reset input (MR)
Power-fail comparator (PFI/PFO)
Low supply current - 40 μA (typ.)
GuaranteedRST(RST) assertion down to VCC = 1.0 V
Operating temperature: –40 °C to 85 °C (industrial grade)
T: 3.00 V ≤ VRST ≤ 3.15 V
S: 2.88 V ≤ VRST ≤ 3.00 V
R: STM706P: 2.59 V ≤ VRST ≤ 2.70 V
RST and RST outputs
200 ms (typ.) trec
Watchdog timer - 1.6 s (typ.)
Manual reset input (MR)
Power-fail comparator (PFI/PFO)
Low supply current - 40 μA (typ.)
GuaranteedRST(RST) assertion down to VCC = 1.0 V
Operating temperature: –40 °C to 85 °C (industrial grade)
