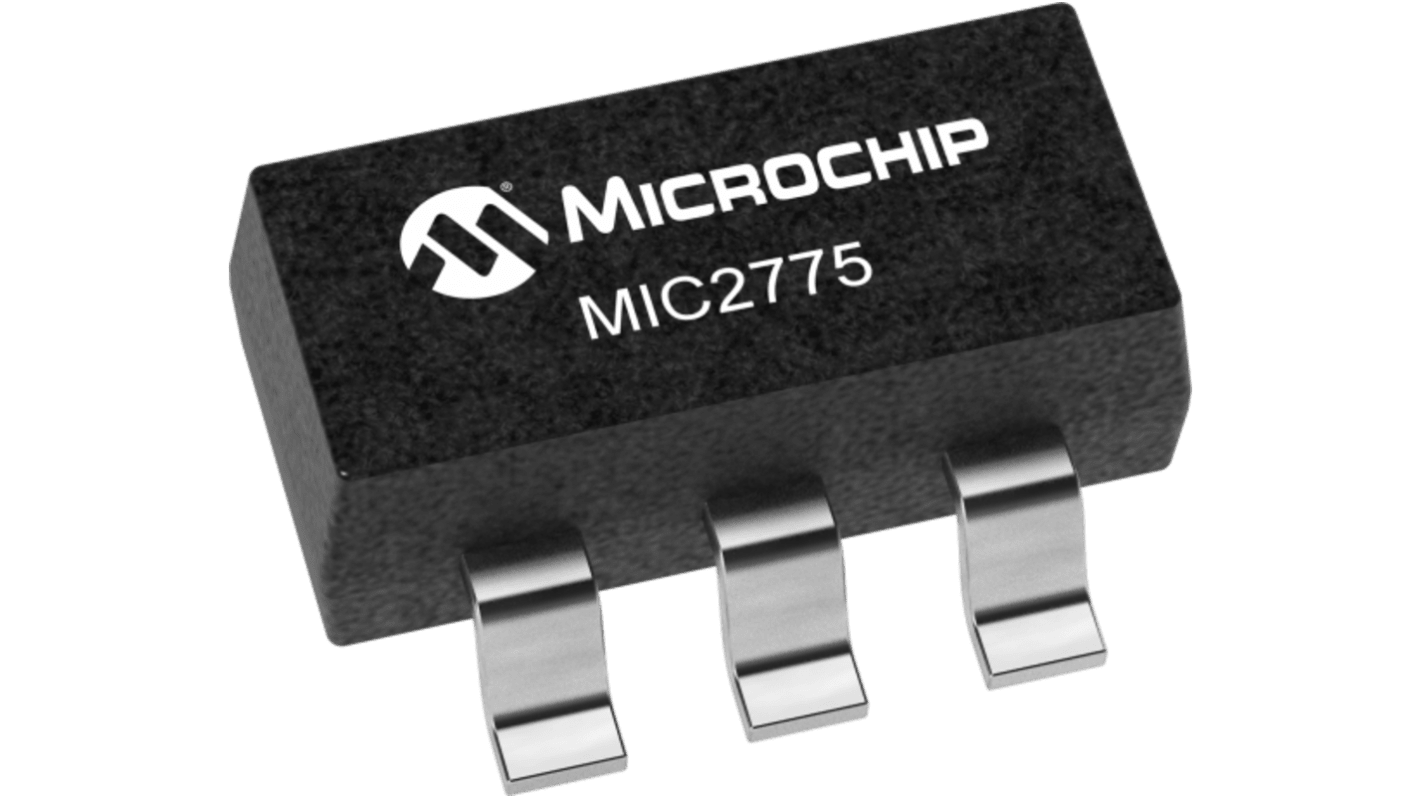

Microchip Voltage Supervisor 4.68V max. 5-Pin SOT-23, MIC2775-29YM5-TR
- RS Stock No.:
- 644-260
- Mfr. Part No.:
- MIC2775-29YM5-TR
- Brand:
- Microchip
Bulk discount available
Subtotal (1 tape of 5 units)*
£4.41
(exc. VAT)
£5.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
5 - 45 | £0.882 | £4.41 |
50 - 245 | £0.778 | £3.89 |
250 - 495 | £0.696 | £3.48 |
500 + | £0.602 | £3.01 |
*price indicative
- RS Stock No.:
- 644-260
- Mfr. Part No.:
- MIC2775-29YM5-TR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Voltage Supervisor Type | Power On Reset Circuit | |
Number of Supervisors | 1 | |
Watchdog Timer | No | |
Manual Reset | No | |
Maximum Reset Threshold Voltage | 4.68V | |
Power Fail Detection | No | |
Package Type | SOT-23 | |
Pin Count | 5 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Voltage Supervisor Type Power On Reset Circuit | ||
Number of Supervisors 1 | ||
Watchdog Timer No | ||
Manual Reset No | ||
Maximum Reset Threshold Voltage 4.68V | ||
Power Fail Detection No | ||
Package Type SOT-23 | ||
Pin Count 5 | ||
The Microchip Power supply supervisor that provides under voltage monitoring, manual reset capability, and power-on reset generation in a compact 5-pin SOT package. Features include an under voltage detector, a delay generator, a manual reset input, and both active-high and active-low reset outputs. The under voltage detector compares VDD against a fixed threshold. Ten factory-programmed thresholds are available.
Monitors power supply for under voltage conditions
Choice of factory-programmed thresholds
Generates 140ms (minimum) power-on RESET pulse
Manual reset capability
Both active-high and active-low RESET outputs
Choice of factory-programmed thresholds
Generates 140ms (minimum) power-on RESET pulse
Manual reset capability
Both active-high and active-low RESET outputs
