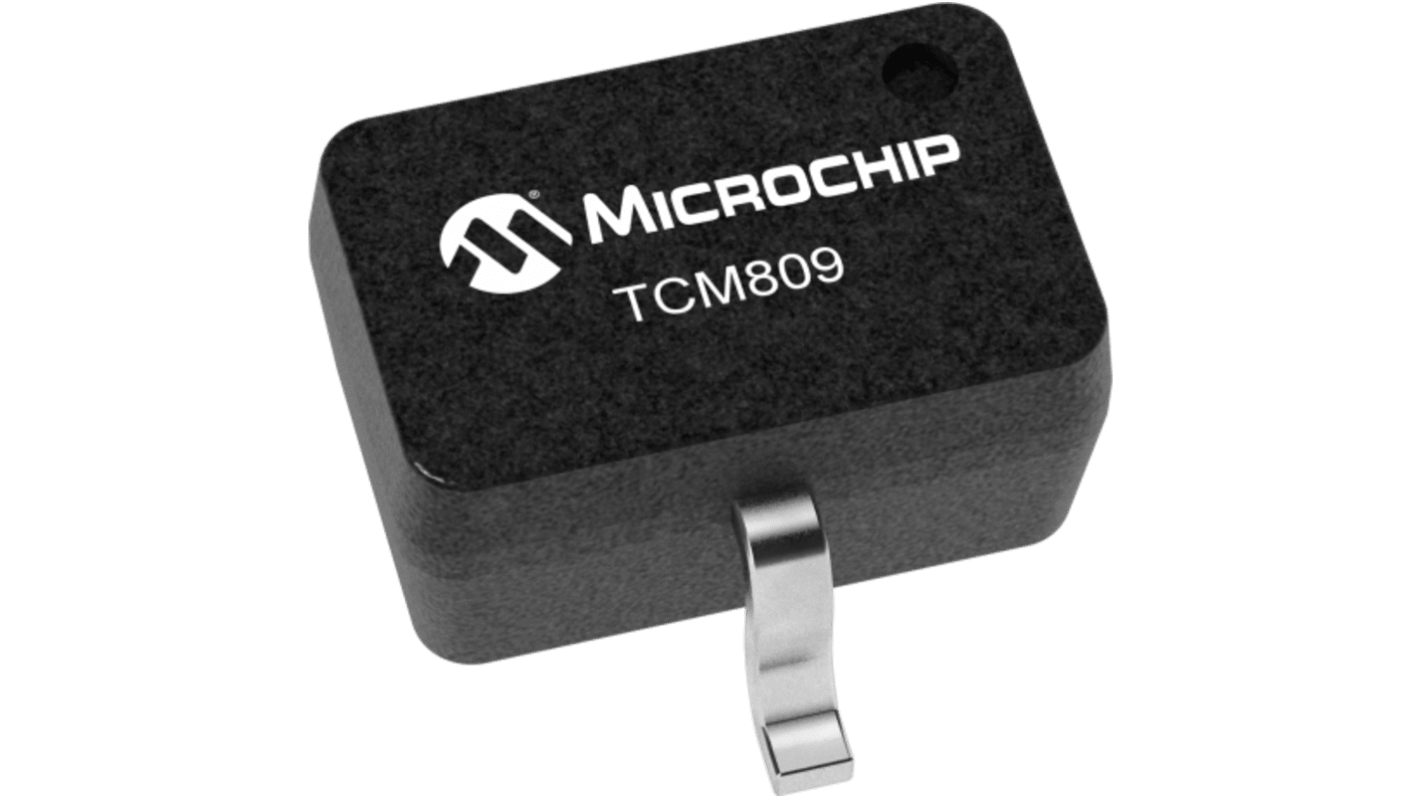

Microchip Voltage Supervisor 2.32V max. 3-Pin SOT-23B, TCM809ZVLB713
- RS Stock No.:
- 598-386
- Mfr. Part No.:
- TCM809ZVLB713
- Brand:
- Microchip
Subtotal (1 reel of 3000 units)*
£939.00
(exc. VAT)
£1,128.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
3000 + | £0.313 | £939.00 |
*price indicative
- RS Stock No.:
- 598-386
- Mfr. Part No.:
- TCM809ZVLB713
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Voltage Supervisor Type | Voltage Monitor | |
Number of Supervisors | 1 | |
Maximum Reset Threshold Voltage | 2.32V | |
Package Type | SOT-23B | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Voltage Supervisor Type Voltage Monitor | ||
Number of Supervisors 1 | ||
Maximum Reset Threshold Voltage 2.32V | ||
Package Type SOT-23B | ||
Pin Count 3 | ||
The Microchip Voltage supervisor circuit designed to monitor supply voltage levels and ensure reliable system resets in digital applications. It asserts a reset signal when the voltage drops below a preset threshold and maintains that signal for a defined duration after recovery. The device features an active-low push-pull output, eliminating the need for external pull-up resistors. With optimized glitch rejection and valid output down to very low supply levels, its well-suited for battery-powered and embedded systems.
Output duration
VDD transient immunity
No external components
VDD transient immunity
No external components
