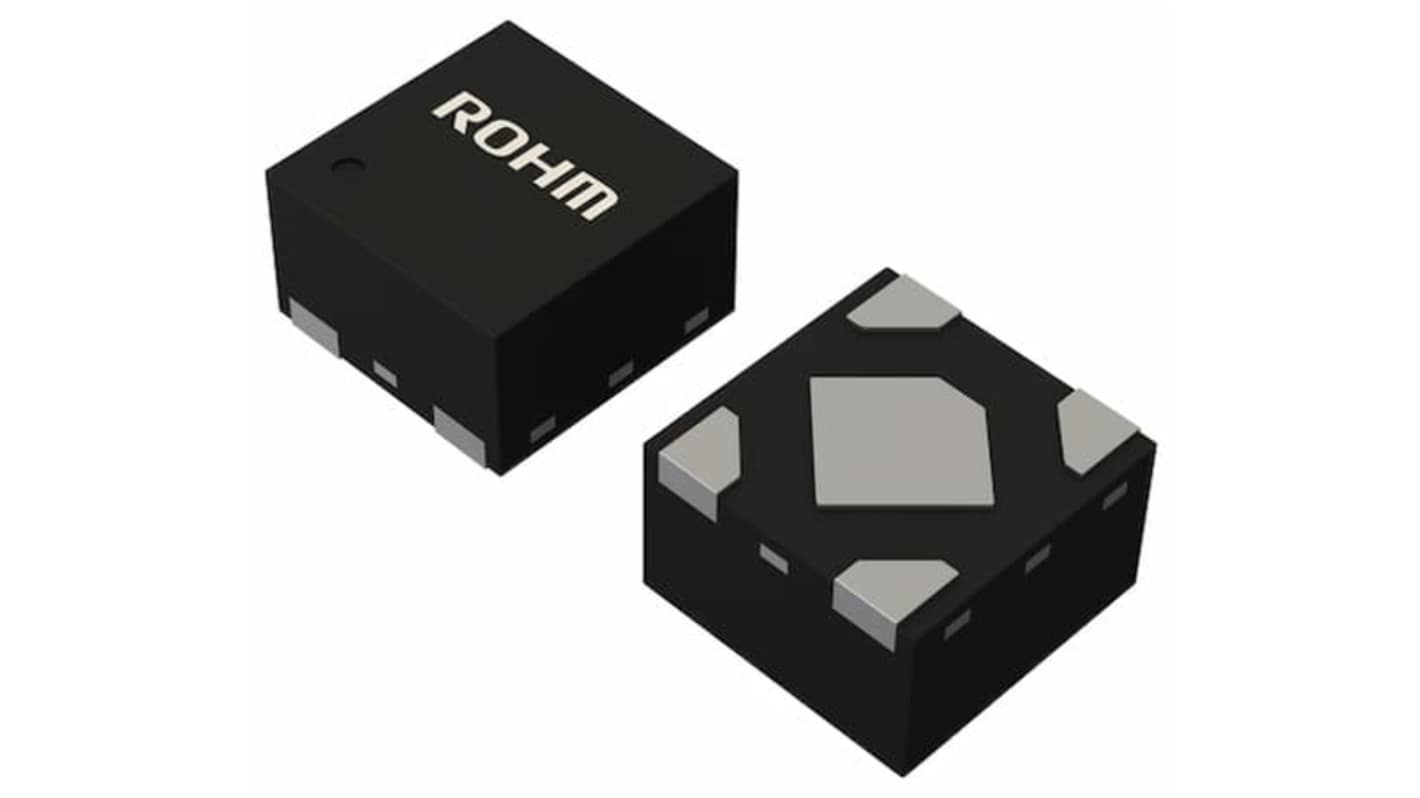

ROHM 1 Voltage Detector 4-Pin 2 V SSON004R1010, BD5320NVX-2CTL
- RS Stock No.:
- 265-384
- Mfr. Part No.:
- BD5320NVX-2CTL
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 25 units)*
£6.375
(exc. VAT)
£7.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.255 | £6.38 |
| 100 - 225 | £0.242 | £6.05 |
| 250 + | £0.224 | £5.60 |
*price indicative
- RS Stock No.:
- 265-384
- Mfr. Part No.:
- BD5320NVX-2CTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Sub Type | Free Time Delay Setting | |
| Product Type | Voltage Detector | |
| Number of Supervisors | 1 | |
| Watchdog Timer | No | |
| Manual Reset | No | |
| Power Fail Detection | No | |
| Output Driver | CMOS, N Channel Open Drain | |
| Mount Type | Surface | |
| Package Type | SSON004R1010 | |
| Pin Count | 4 | |
| Minimum Operating Temperature | -40°C | |
| Reset Threshold Voltage | 2V | |
| Maximum Operating Temperature | 125°C | |
| Width | 1.00mm | |
| Length | 1.00mm | |
| Height | 0.6mm | |
| Standards/Approvals | AEC-Q100 | |
| Automotive Standard | AEC-Q100 | |
| Minimum Supply Voltage | 0.8V | |
| Maximum Supply Voltage | 6V | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Sub Type Free Time Delay Setting | ||
Product Type Voltage Detector | ||
Number of Supervisors 1 | ||
Watchdog Timer No | ||
Manual Reset No | ||
Power Fail Detection No | ||
Output Driver CMOS, N Channel Open Drain | ||
Mount Type Surface | ||
Package Type SSON004R1010 | ||
Pin Count 4 | ||
Minimum Operating Temperature -40°C | ||
Reset Threshold Voltage 2V | ||
Maximum Operating Temperature 125°C | ||
Width 1.00mm | ||
Length 1.00mm | ||
Height 0.6mm | ||
Standards/Approvals AEC-Q100 | ||
Automotive Standard AEC-Q100 | ||
Minimum Supply Voltage 0.8V | ||
Maximum Supply Voltage 6V | ||
The ROHM Free Time Delay Setting CMOS Voltage Detector IC is highly accurate, with ultra low current consumption feature that uses CMOS process. Delay time setting can be control by an external capacitor.
Nano Energy™
AEC-Q100 qualified
Delay time set by external capacitor
N channel open drain output
Miniature surface mount package
