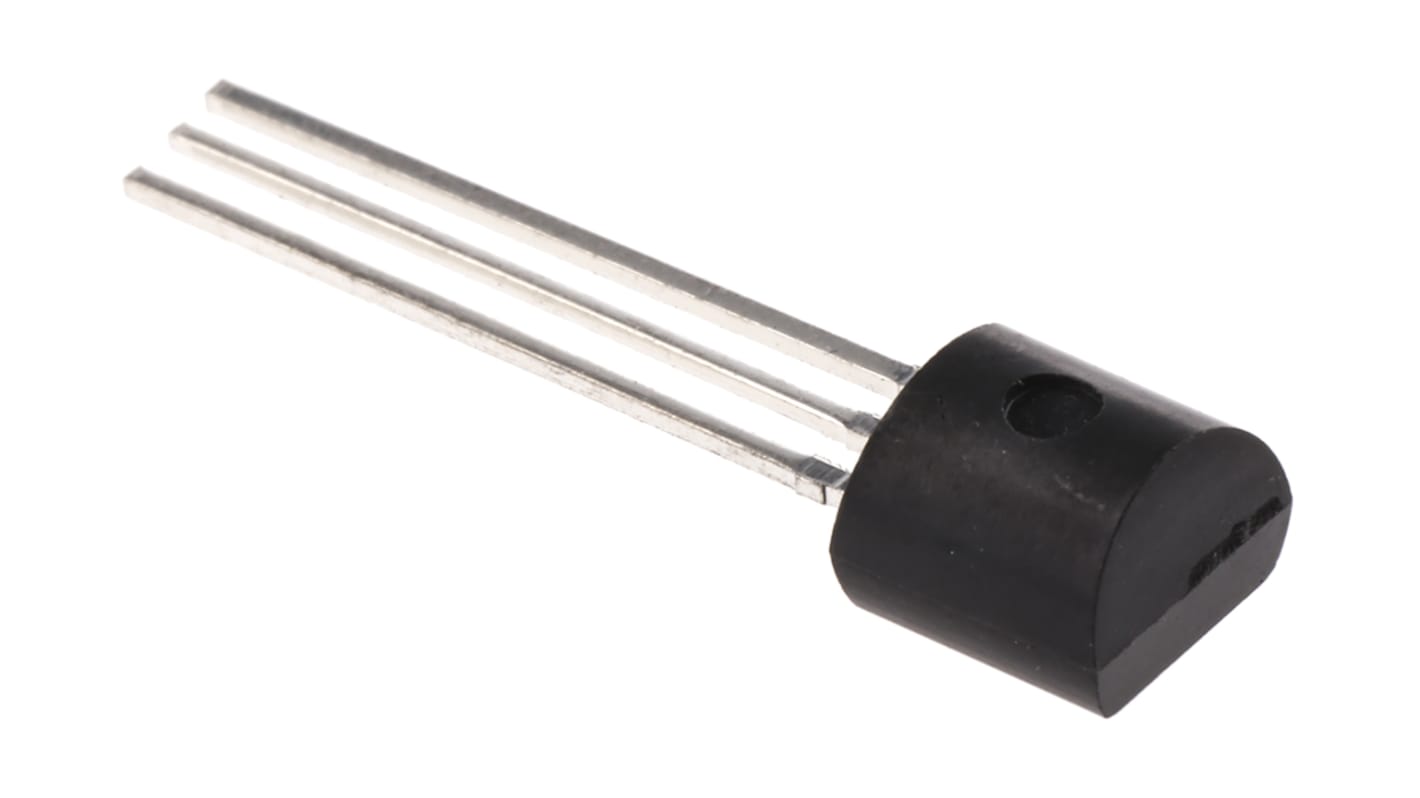

Texas Instruments, -37 → -1.2 V Linear Voltage Regulator, 100mA, 1-Channel Negative, Adjustable 3-Pin, TO-92

View all Voltage Regulators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
533-5812P
Mfr. Part No.:
LM337LZ/NOPB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Regulator Type

Linear Voltage

Maximum Output Current

100mA

Number of Outputs

1

Output Voltage

-37 → -1.2 V

Line Regulation

0.04 %/V

Load Regulation

0.5 %

Mounting Type

Through Hole

Polarity

Negative

Package Type

TO-92

Reference Voltage

1.3V

Pin Count

3

Power Rating

0.625W

Output Type

Adjustable

Dimensions

5.2 x 4.19 x 5.2mm

Maximum Operating Temperature

+125 °C

Minimum Input Voltage

-40 V

Height

5.2mm

Maximum Input Voltage

-4.2 V

Minimum Operating Temperature

-25 °C

Length

5.2mm

Width

4.19mm

LM337 Linear Voltage Regulators, Texas Instruments


Texas Instruments LM337 adjustable negative voltage regulators offer the current rating of 1.5A and (100 mA on the LM337L) on the output voltage range of –1.2 V to –37 V. The linear voltage regulator requires only two external resistors to adjust the output voltage and a capacitor for frequency compensation.

Output Current: LM317 (1.5 A), LM317L (0.1 A)
Ripple Rejection 77 dB to 80 dB (Typical)


Linear Voltage Regulators, Texas Instruments


A range of fixed and adjustable Linear Voltage regulators from Texas Instruments. The range includes both positive and negative polarity devices with output current ratings from 100mA up to 5A.
