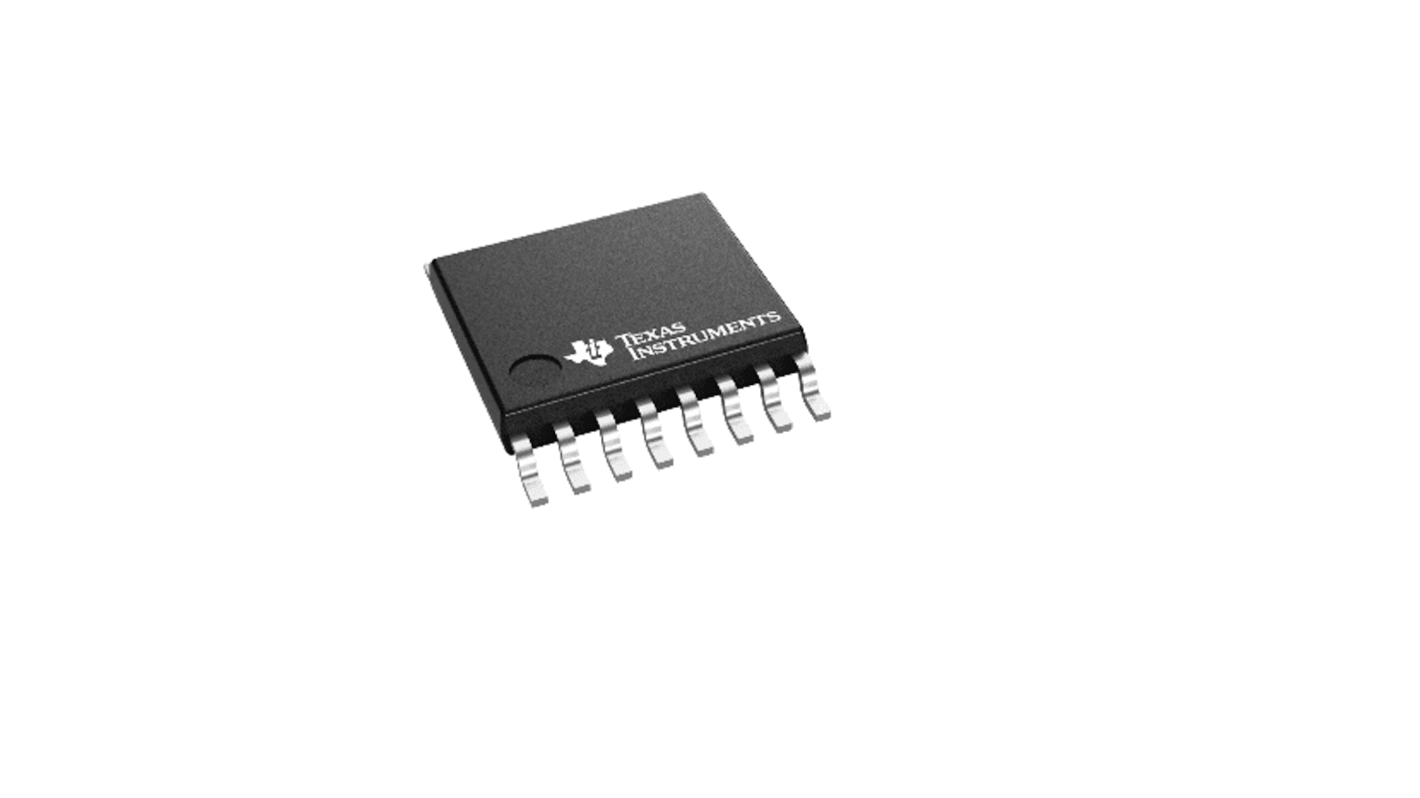

Texas Instruments LM20145MH/NOPB, 1-Channel Step-Down Converter, Buck Converter, 5 A, 3.3/5 V 750 kHz, HTSSOP 16-Pin

View all Voltage Regulators

Subtotal (1 tube of 92 units)*

£135.332

(exc. VAT)

£162.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 92 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
92 +£1.471£135.33

*price indicative

RS Stock No.:
268-7503
Mfr. Part No.:
LM20145MH/NOPB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Product Type

Buck Converter

Regulator Type

Step-Down Converter

Number of Outputs

1

Output Voltage

3.3/5 V

Switching Frequency

750kHz

Package Type

HTSSOP

Quiescent Current

6mA

Output Current

5A

Pin Count

16

Series

LM20145

Width

5.1 mm

Standards/Approvals

RoHS

Length

6.6mm

Height

1.2mm

Maximum Input Voltage

5.5V

Minimum Input Voltage

2.95V

Automotive Standard

AEC-Q100

The Texas Instruments synchronous buck regulator is designed to work well in multi rail power supply architectures. The output voltage of the device can be configured to track a higher voltage rail using the SS TRK pin. If the output of the regulator is pre biased at start up it will not sink current to pull the output low until the internal soft start ramp exceeds the voltage at the feedback pin.

Available in AEC Q100 temperature grade 1

Accurate current limit minimizes inductor size

Adjustable soft start with external capacitor

Precision enable pin with hysteresis
