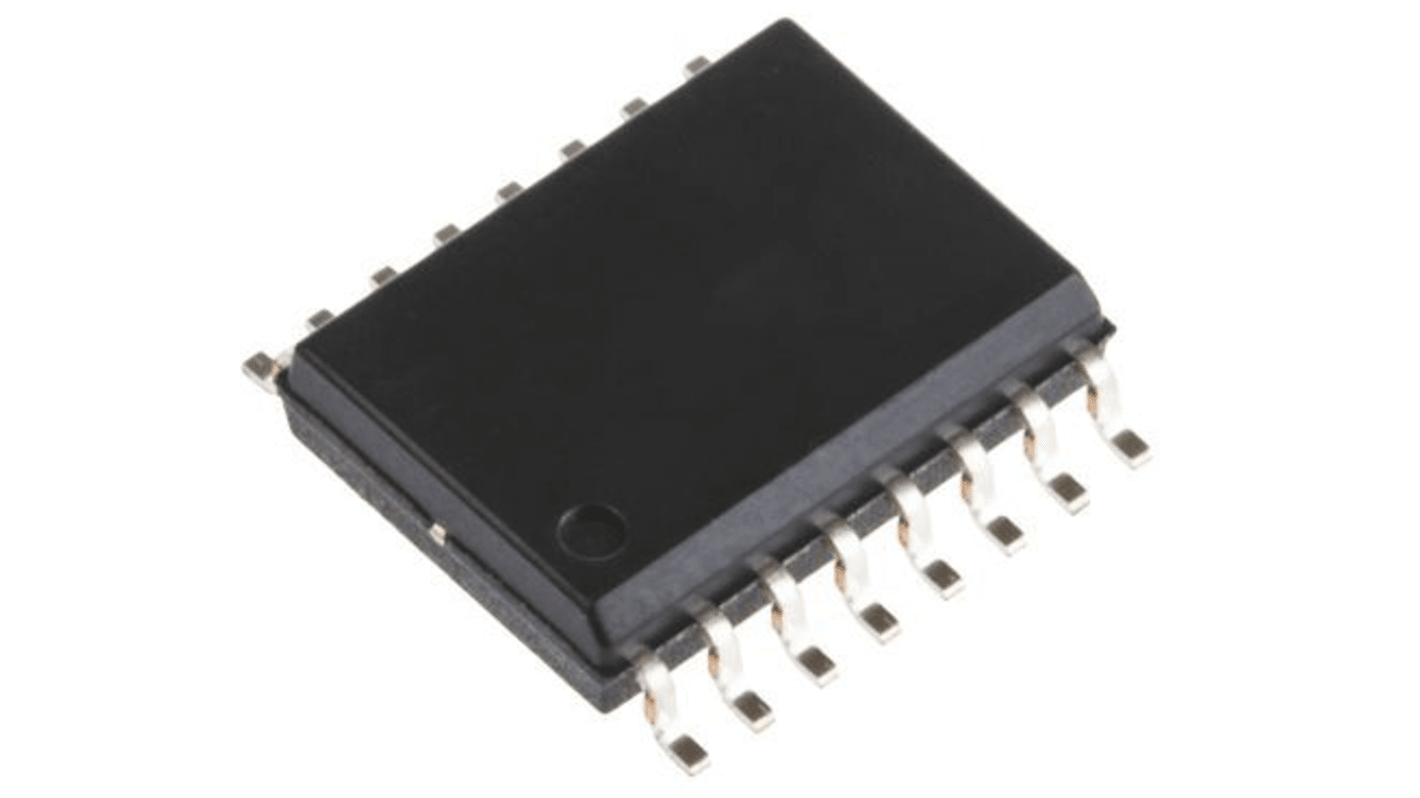

onsemi NCV4390DR2G, 1-Channel Switching, Voltage Regulator, 150 mA 690 kHz, SOIC 16-Pin

View all Voltage Regulators
Bulk discount available

Subtotal (1 pack of 5 units)*

£9.39

(exc. VAT)

£11.27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,315 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£1.878£9.39
50 - 95£1.62£8.10
100 +£1.404£7.02

*price indicative

Packaging Options:
RS Stock No.:
221-6658
Mfr. Part No.:
NCV4390DR2G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Voltage Regulator

Regulator Type

Switching

Number of Outputs

1

Switching Frequency

690kHz

Polarity

Positive

Mount Type

Surface

Package Type

SOIC

Pin Count

16

Output Current

150mA

Output Type

Fixed

Switching Regulator

No

Series

NCV4390

Standards/Approvals

RoHS

Maximum Input Voltage

12V

Minimum Input Voltage

5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Automotive Standard

AEC-Q100

The ON Semiconductor NCV4390 is an advanced pulse frequency modulated controller for LLC resonant converter with synchronous rectification that offers best in class efficiency for isolated DC/DC converter. It employs a current mode control technique based on a charge control, where the triangular waveform from the oscillator is combined with the integrated switch current information to determine the switching frequency.

Programmable dead times for primary side switches and secondary side synchronous rectifiers

VDD under−voltage lockout

Wide operating temperature range −40°C to +125°C

Closed loop soft−start for monotonic rising output
