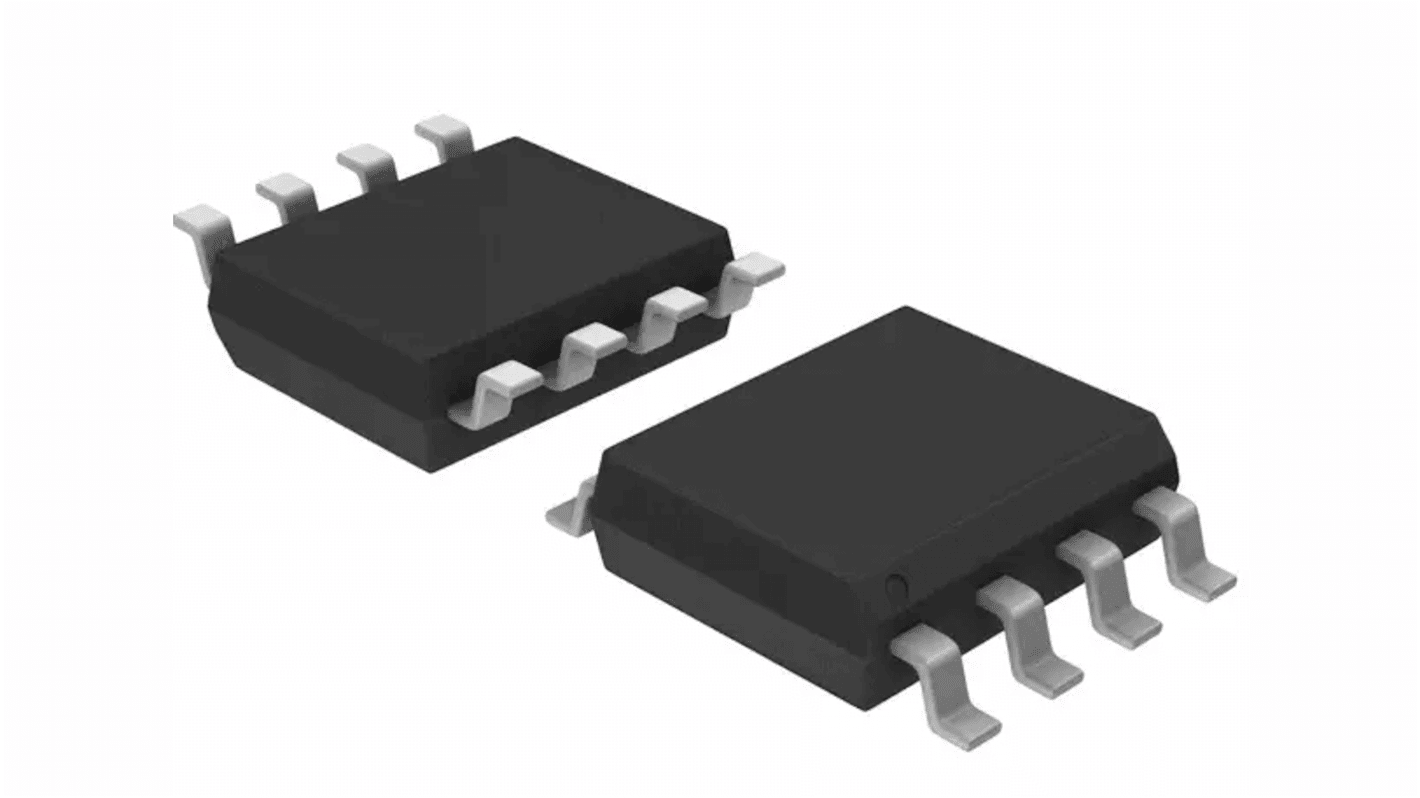

onsemi, 1-Channel Switching, Voltage Regulator, 6 V 500 kHz, SOIC 8-Pin

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
221-6635
Mfr. Part No.:
NCP4318ALSDR2G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Switching

Product Type

Voltage Regulator

Output Voltage

6 V

Number of Outputs

1

Switching Frequency

500kHz

Mount Type

Surface

Package Type

SOIC

Pin Count

8

Output Type

Fixed

Switching Regulator

No

Series

NCP4318

Standards/Approvals

RoHS

Minimum Input Voltage

6.5V

Maximum Input Voltage

35V

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Automotive Standard

No

The ON Semiconductor NCP4318 is an advanced synchronous rectification (SR) controller for LLC resonant converter with minimum external components. It has two gate driver stages for driving the SR MOSFETs which are rectifying the outputs of the secondary transformer windings. The two gate driver stages have their own Drain and Source sensing inputs and operate independently of each other.

Adaptive minimum turn−on time for noise immunity

SR conduction time increase rate limitation

Multi−level turn−off threshold voltage

Adaptive gate voltage control (10 V, 6 V)

Low operating current (100 A) in green mode

Soft start for 512 switching cycle wi
