STMicroelectronics LDBL20D-12R, 1 Low Dropout Voltage, Voltage Regulator 200mA, 0.8 V, 5 V 4-Pin, STSTAMP
- RS Stock No.:
- 203-3408
- Mfr. Part No.:
- LDBL20D-12R
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 203-3408
- Mfr. Part No.:
- LDBL20D-12R
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Regulator Type | Low Dropout Voltage | |
| Maximum Output Current | 200mA | |
| Number of Outputs | 1 | |
| Output Voltage | 0.8 V, 5 V | |
| Accuracy | ±3% | |
| Mounting Type | Surface Mount | |
| Package Type | STSTAMP | |
| Pin Count | 4 | |
| Output Type | Fixed | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 200mA | ||
Number of Outputs 1 | ||
Output Voltage 0.8 V, 5 V | ||
Accuracy ±3% | ||
Mounting Type Surface Mount | ||
Package Type STSTAMP | ||
Pin Count 4 | ||
Output Type Fixed | ||
- COO (Country of Origin):
- CN
The STMicroelectronics LDBL20 is a high-accuracy voltage regulator . It provides 200 mA of current from an input voltage ranging from 1.5 V to 5.5 V, with a typical dropout voltage of 200 mV. The ceramic capacitors provide stability. Due to the ultra low drop voltage, low quiescent current and low noise features it is suitable for low power battery powered applications.

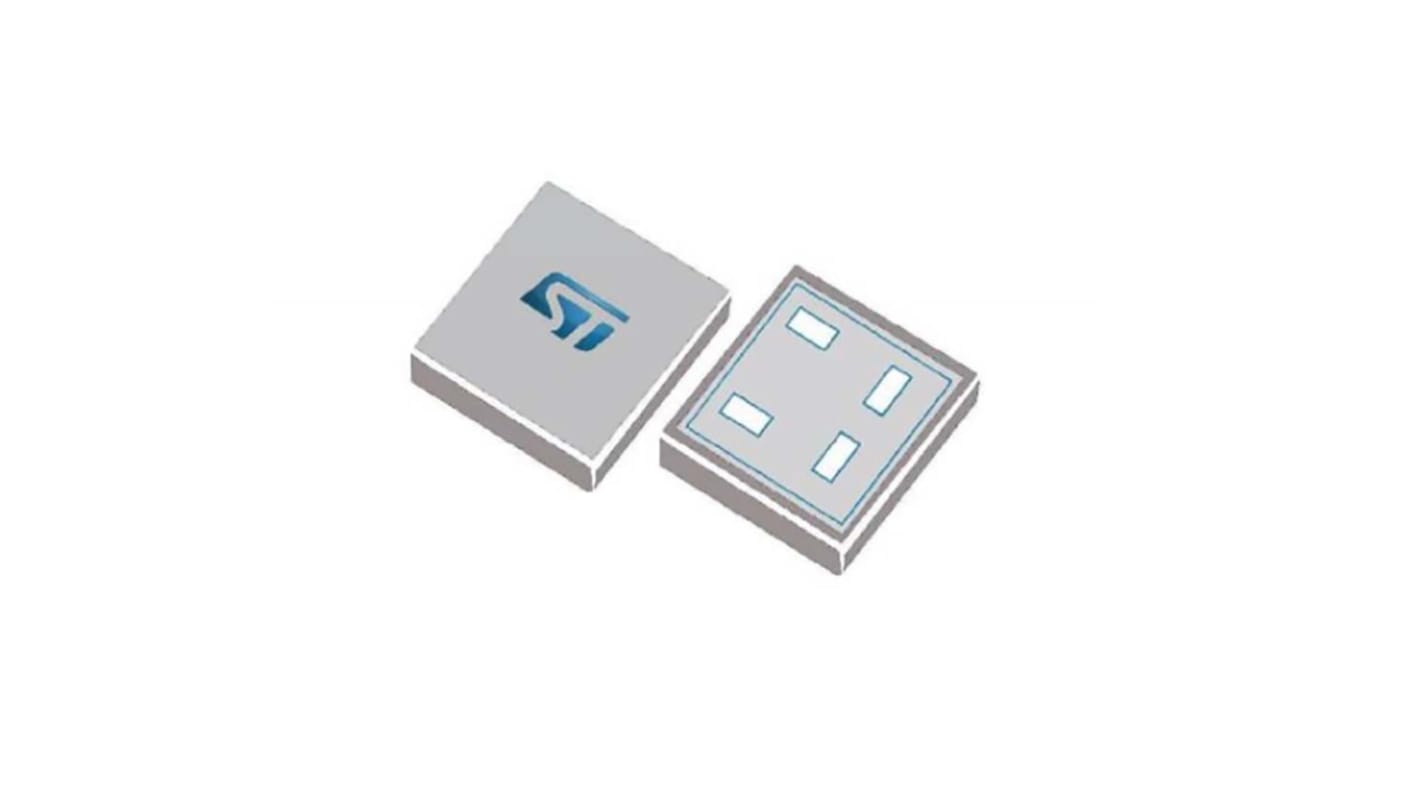

Available in STSTAMP™ (0.47x0.47) mm² package type
Internal constant current and thermal protection provided
Optional output voltage discharge feature with internal soft-start
Logically-controlled electronic shutdown
Internal constant current and thermal protection provided
Optional output voltage discharge feature with internal soft-start
Logically-controlled electronic shutdown
