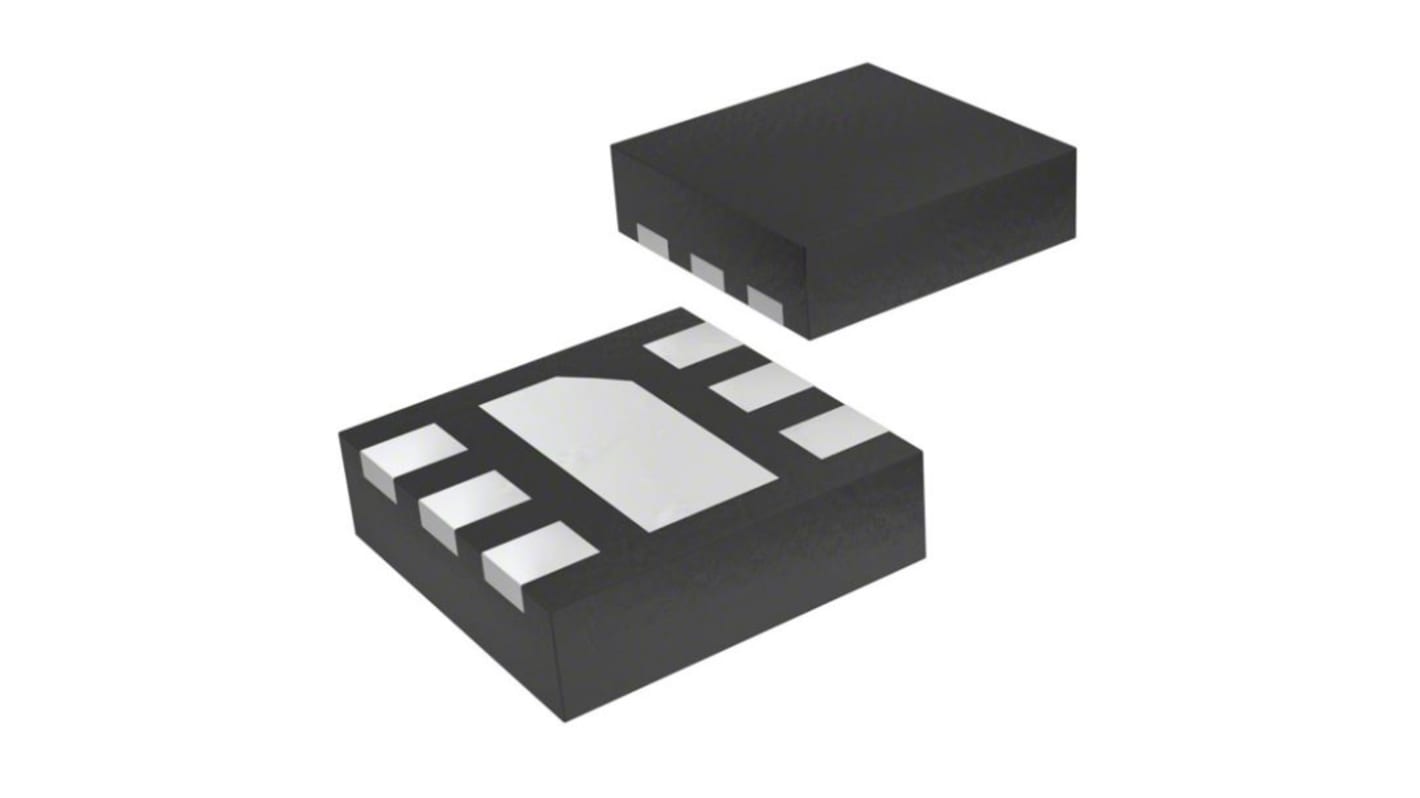

onsemi NCP718BMT500TBG, 1 Low Dropout Voltage, Voltage Regulator 300mA, 5 V 6-Pin, WDFN

View all Voltage Regulators
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
186-1276
Mfr. Part No.:
NCP718BMT500TBG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Low Dropout Voltage

Maximum Output Current

300mA

Number of Outputs

1

Output Voltage

5 V

Line Regulation

10 mV

Accuracy

±2%

Load Regulation

10 mV

Mounting Type

Surface Mount

Quiescent Current

8µA

Package Type

WDFN

Pin Count

6

Output Type

Fixed

Dimensions

2 x 2 x 0.75mm

Height

0.75mm

Maximum Operating Temperature

+150 °C

Minimum Input Voltage

2.5 V

Maximum Input Voltage

24 V

Length

2mm

Width

2mm

Ultra−Low Quiescent Current typ. 4 μA over Temperature
Operating Input Voltage Range 2.5 V to 24 V
Adjustable and Fixed Version Available
High PSRR 60dB at 1kHz
Noise typ. 36 μVRMS from 100 Hz to 100 kHz
Stable with 1 μF output capacitor
Soft−start to Reduce Inrush Current and Overshoots
SOA Limiting for High Vin / High Iout – Static and Dynamic
Improved efficiency during light load conditions
Wide operating range, suitable for industrial
Possibility to create any output voltage in range 1.2V to 5V
Excellent for power sensitive device
Very well suited for noise sensitive application
Good stability with common and cheap capacitors
Smooth and controlled output voltage raise
Reliable operation under various condition
Applications
NCP718 can be used for powering MCU and other IC
Battery powered equipment
Industrial power supplies
Wireless routers
Wireless charges
Portable equipment
Communication system
End Products
Telecommunication : Zigbee, NB-IoT, Industrial : Smart Meter, Smart LED, Set-Top-Box, Medical : Equipment
Wireless charges, routers
Wearable electronics
Sensor systems
Battery powered applications
