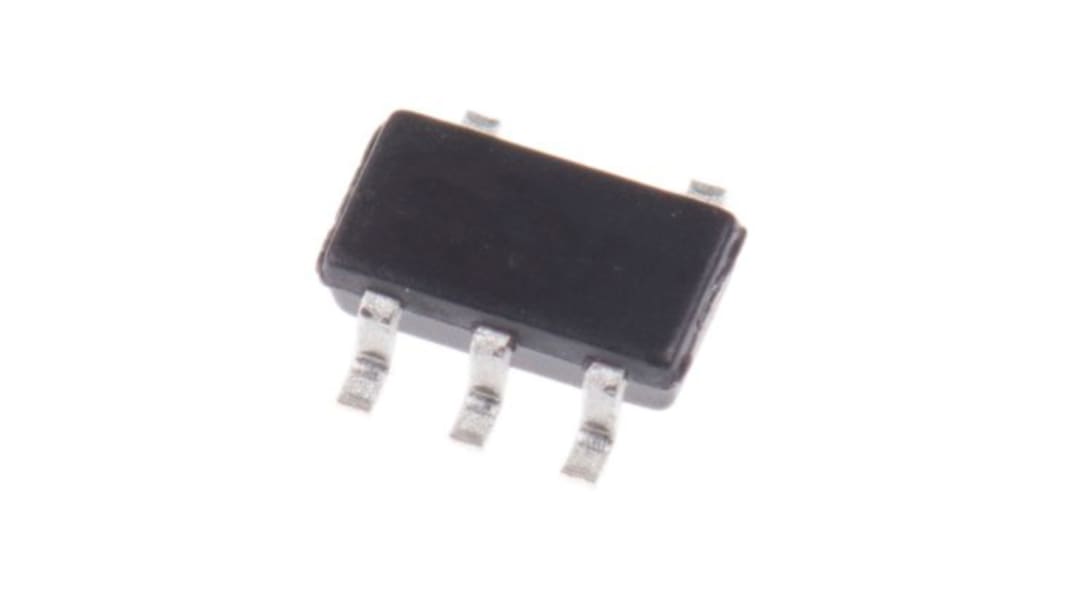

onsemi, Voltage Regulator 5.5V TSOP 5-Pin

View all Voltage Regulators

Subtotal (1 reel of 3000 units)*

£645.00

(exc. VAT)

£774.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.215£645.00

*price indicative

RS Stock No.:
185-8117
Mfr. Part No.:
NCV8163ASN330T1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Product Type

Voltage Regulator

Package Type

TSOP

Mount Type

Surface

Polarity

Positive

Quiescent Current

20μA

Pin Count

5

Width

1.65 mm

Height

1mm

Length

3.15mm

Standards/Approvals

No

Series

NCV8163

Maximum Input Voltage

5.5V

Maximum Operating Temperature

150°C

Minimum Input Voltage

2.2V

Automotive Standard

AEC-Q100

COO (Country of Origin):
MY
The NCV8163 is an LDO (Low Dropout Regulator) capable of supplying 250 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8163 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 uF input and a 1 uF output ceramic capacitor.

Ultra Low Quiescent Current 12 uA

Very Low Dropout 80mV@250mA

Ultra High PSRR 92dB at 1 kHz

Ultra High PSRR 60dB at 100 kHz

Improved efficiency during light load conditions

Low power dissipation at full load

Excellent for noise sensitive device like Image Sensors

Excellent for noise sensitive device like Image Sensors

Applications

Automotive

End Products

ADAS

Image Sensor

Radar / Lidar
