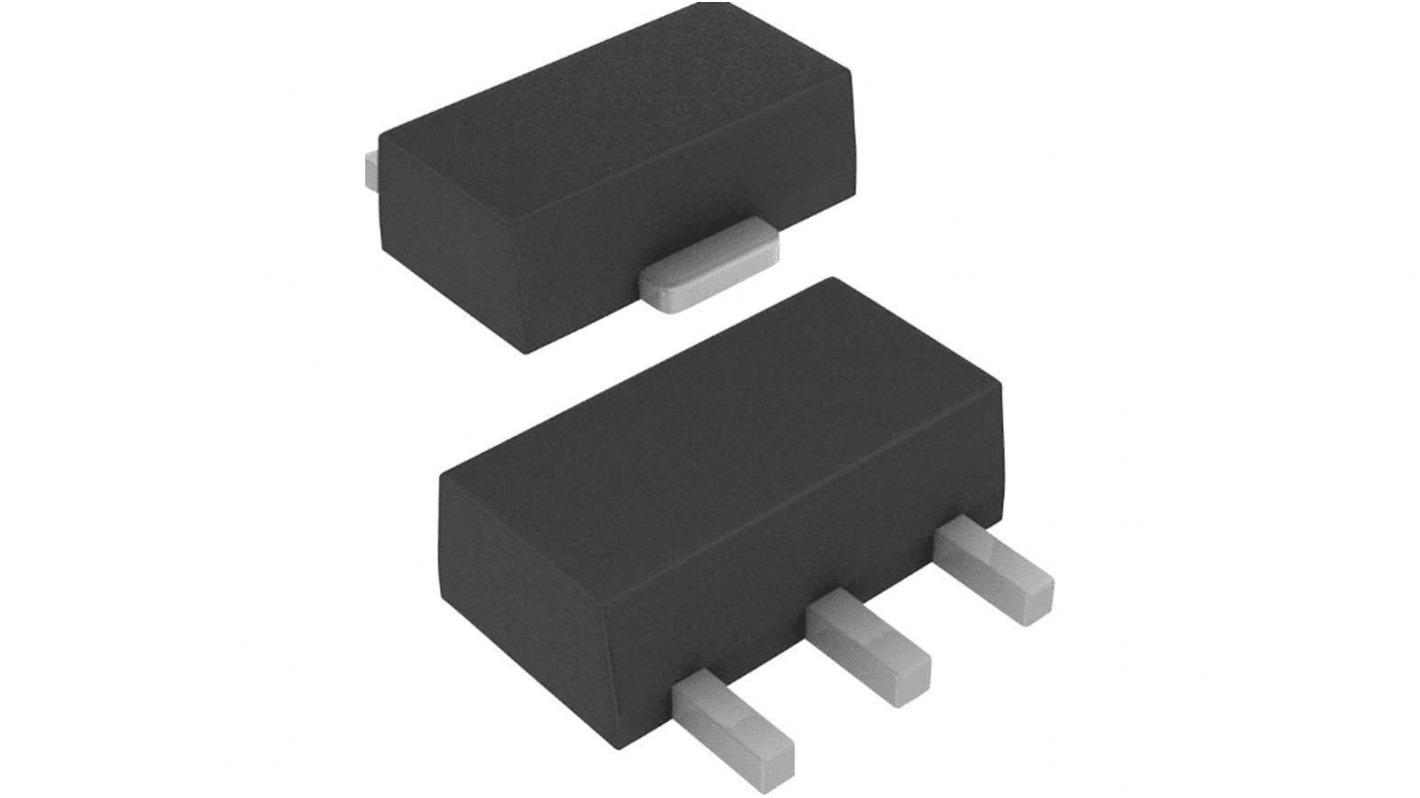

STMicroelectronics L78L18ACUTR, 1 Linear Voltage, Voltage Regulator 100mA, 18 V 3-Pin, SOT-89
- RS Stock No.:
- 178-5136
- Mfr. Part No.:
- L78L18ACUTR
- Brand:
- STMicroelectronics
2500 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 2500)
£0.174
(exc. VAT)
£0.209
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2500 + | £0.174 | £435.00 |
| *price indicative | ||
- RS Stock No.:
- 178-5136
- Mfr. Part No.:
- L78L18ACUTR
- Brand:
- STMicroelectronics
Legislation and Compliance
Product Details
Linear Voltage Regulators, 100mA, STMicroelectronics
The L78L series of three-terminal positive regulators embed internal current limiting, and thermal shut-down. Providing an adequate heat sink, up to 100mA output current can be delivered.
Linear Voltage Regulators, STMicroelectronics
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Linear Voltage |
| Maximum Output Current | 100mA |
| Output Voltage | 18 V |
| Number of Outputs | 1 |
| Line Regulation | 320 mV |
| Accuracy | ±5% |
| Load Regulation | 170 mV |
| Polarity | Positive |
| Mounting Type | Surface Mount |
| Quiescent Current | 6.5mA |
| Package Type | SOT-89 |
| Pin Count | 3 |
| Output Type | Fixed |
| Dimensions | 4.6 x 2.6 x 1.6mm |
| Height | 1.6mm |
| Maximum Input Voltage | 40 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 4.6mm |
| Width | 2.6mm |
