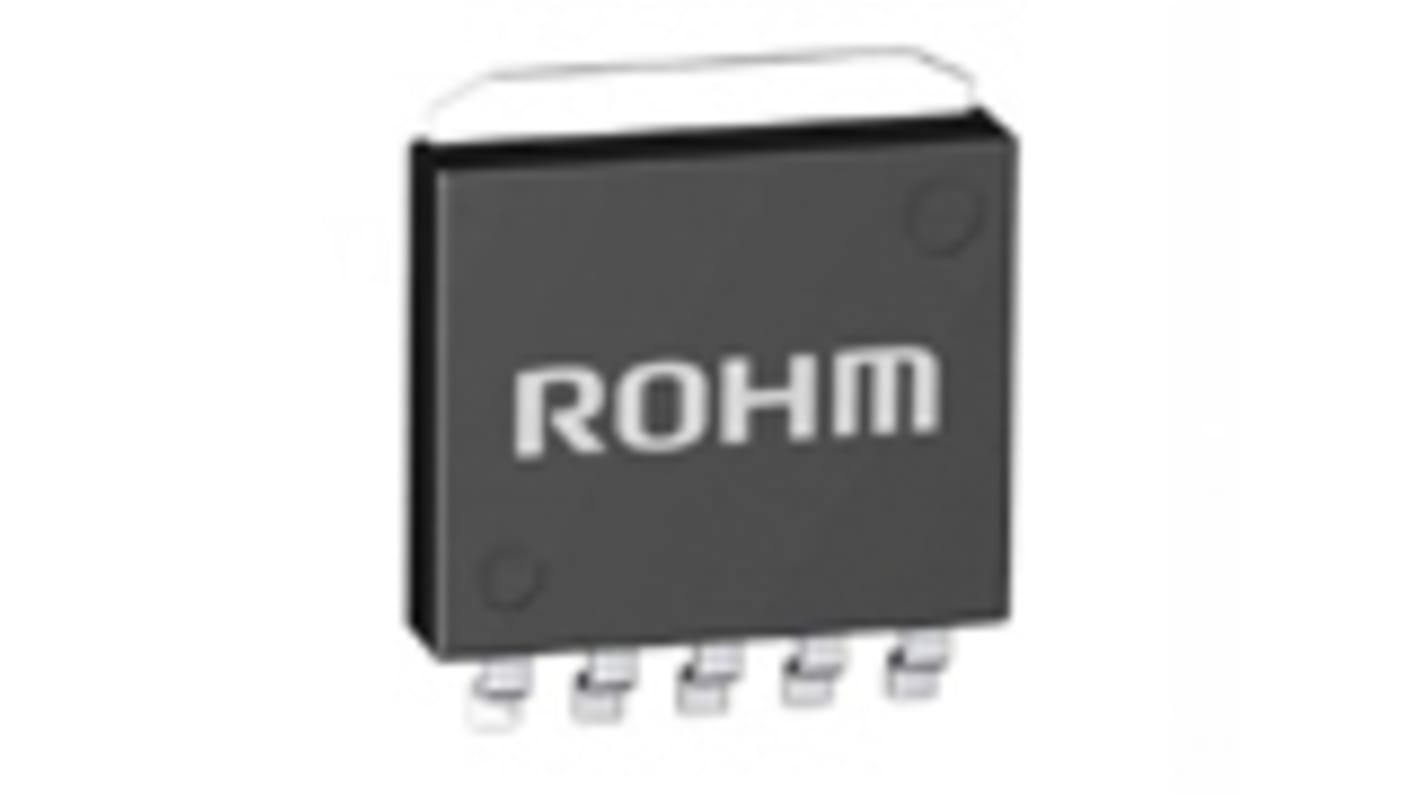

ROHM BA50DD0WHFP-TR, 1 Low Dropout Voltage, Voltage Regulator 2A, 5 V 5-Pin, HRP
- RS Stock No.:
- 167-7509
- Mfr. Part No.:
- BA50DD0WHFP-TR
- Brand:
- ROHM
10 In stock - FREE next working day delivery available
2040 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.425
(exc. VAT)
£0.51
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.425 | £4.25 |
| *price indicative | ||
- RS Stock No.:
- 167-7509
- Mfr. Part No.:
- BA50DD0WHFP-TR
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
ROHM's LDO regulators continue the trend towards increasing miniaturization and greater power efficiency and are optimized for power supplies of all types. The broad lineup includes low saturation fixed output types in 1A/2A/0.3A ratings, models with different output voltages and packages, and units with/without a shutdown switch. In addition, overcurrent, thermal shutdown, and overvoltage protection circuits are integrated to prevent IC destruction due to output shorts, IC overload, and surges on the power supply line, respectively.
Maximum current: 2A
Output voltage accuracy: ±1%
Ultra-low saturation with PNP output
Output voltage accuracy: ±1%
Ultra-low saturation with PNP output
Specifications
Attribute | Value |
|---|---|
| Regulator Type | Low Dropout Voltage |
| Maximum Output Current | 2A |
| Number of Outputs | 1 |
| Output Voltage | 5 V |
| Line Regulation | 50 mV |
| Accuracy | ±1% |
| Load Regulation | 200 mV |
| Mounting Type | Surface Mount |
| Polarity | Positive |
| Package Type | HRP |
| Pin Count | 5 |
| Output Type | Fixed |
| Dimensions | 9.395 x 9.017 x 1.905mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 25 V |
| Minimum Operating Temperature | -40 °C |
| Height | 1.91mm |
| Width | 9.02mm |
| Length | 9.4mm |
