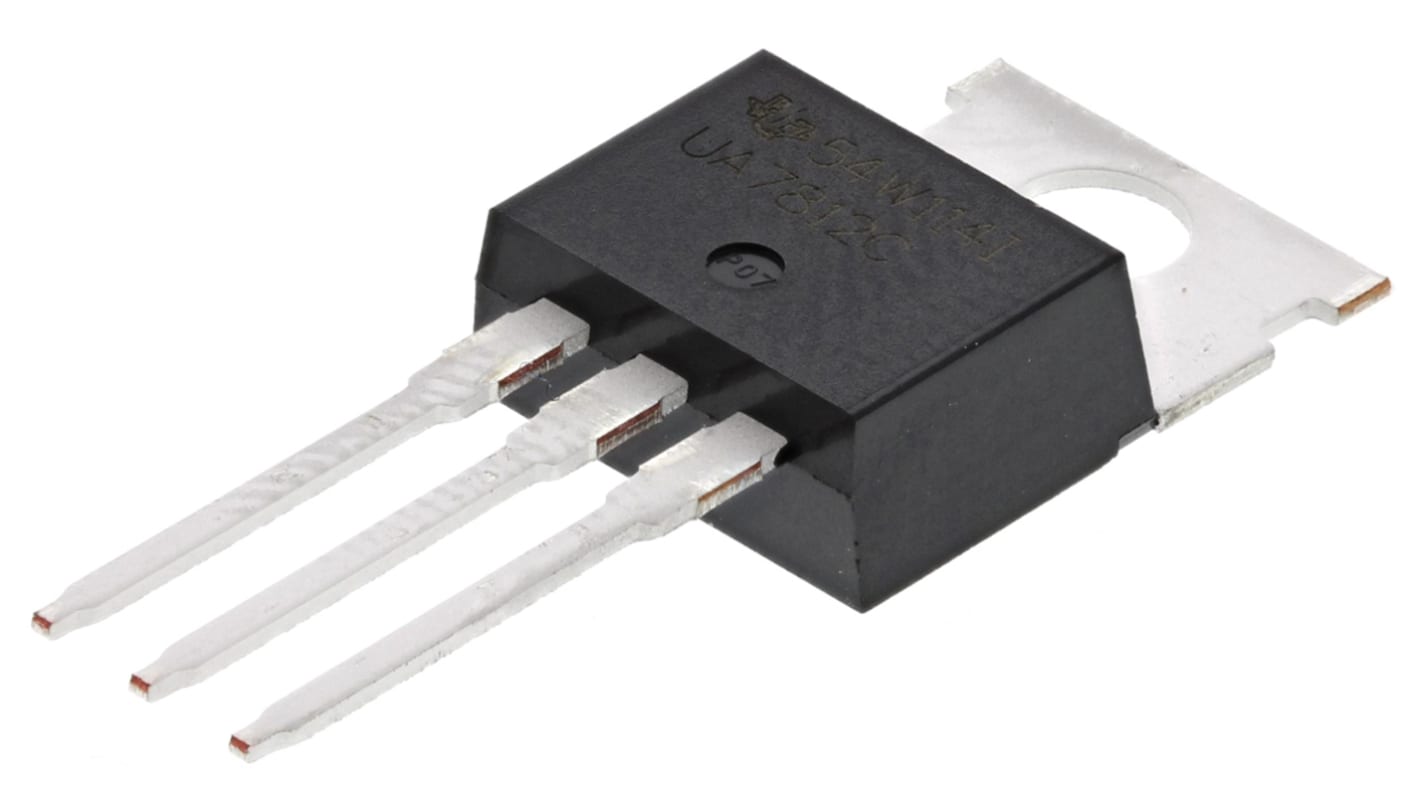

Texas Instruments, 12 V Linear Voltage Regulator, 1.5A, 1-Channel 3-Pin, TO-220 UA7812CKCT

View all Voltage Regulators
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
145-0751
Mfr. Part No.:
UA7812CKCT
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Output Current

1.5A

Regulator Type

Linear Voltage

Number of Outputs

1

Output Voltage

12 V

Mounting Type

Through Hole

Polarity

Positive

Package Type

TO-220

Pin Count

3

Power Rating

15W

Output Type

Fixed

Dimensions

10.67 x 8.79 x 4.65mm

Height

4.65mm

Minimum Operating Temperature

0 °C

Minimum Input Voltage

14.5 V

Maximum Input Voltage

30 V

Maximum Operating Temperature

+125 °C

Length

10.67mm

Width

8.79mm

COO (Country of Origin):
MY

μA78 Series Linear Voltage Regulators, Texas Instruments


The Texas Instruments μA78 families are linear voltage regulators that cover a range of fixed output voltages from 2.6 V to 15 V.The three terminal positive voltage regulators offer thermal overload shutdown and internal current limiting. There is no need for external components although it is possible to adjust the voltage and current with external devices. The TI positive linear regulator IC produces an output current of 1.5A for the μA78 series, 0.1A for the μA78L version and the μA78M offers 0.5A current output. It is used in a wide variety of applications including on-card regulation which eliminates problems that occur with single point regulation also suitable in telecommunications, computing and portable device applications.

Output Current: 1.5 A (μA78xx); 0.1 A (μA78Lxx) and 0.5 A (μA78Mxx)
Internal Thermal-Overload Protection, Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation
High Power-Dissipation


Linear Voltage Regulators, Texas Instruments


A range of fixed and adjustable Linear Voltage regulators from Texas Instruments. The range includes both positive and negative polarity devices with output current ratings from 100mA up to 5A.
