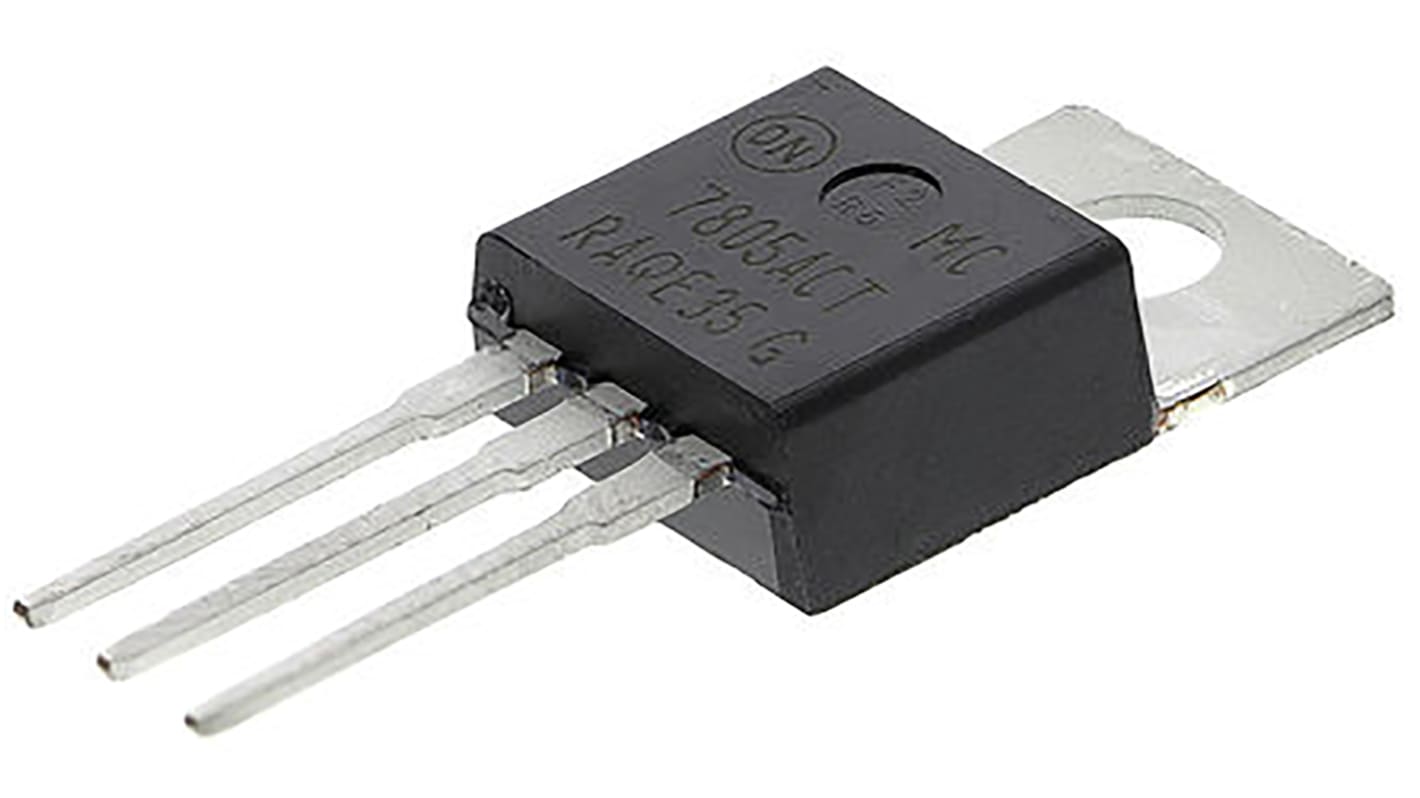

onsemi MC7805ACTG, 1 Linear Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

View all Voltage Regulators

Subtotal (1 tube of 50 units)*

£14.20

(exc. VAT)

£17.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
  • Plus 650 unit(s) shipping from 17 December 2025
  • Plus 999,999,250 unit(s) shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 +£0.284£14.20

*price indicative

RS Stock No.:
100-7568
Mfr. Part No.:
MC7805ACTG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Linear Voltage

Maximum Output Current

1A

Number of Outputs

1

Output Voltage

5 V

Line Regulation

10 mV

Load Regulation

25 mV

Accuracy

±4%

Polarity

Positive

Mounting Type

Through Hole

Quiescent Current

3.2mA

Package Type

TO-220

Pin Count

3

Output Type

Fixed

Dimensions

10.28 x 4.82 x 30.02mm

Maximum Input Voltage

35 V

Minimum Operating Temperature

0 °C

Height

30.02mm

Maximum Operating Temperature

+125 °C

Width

4.82mm

Length

10.28mm

COO (Country of Origin):
CZ

5V MC7805 Linear voltage regulator, ON Semiconductor


This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC7805 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7805 voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation.


Linear Voltage Regulators, ON Semiconductor
