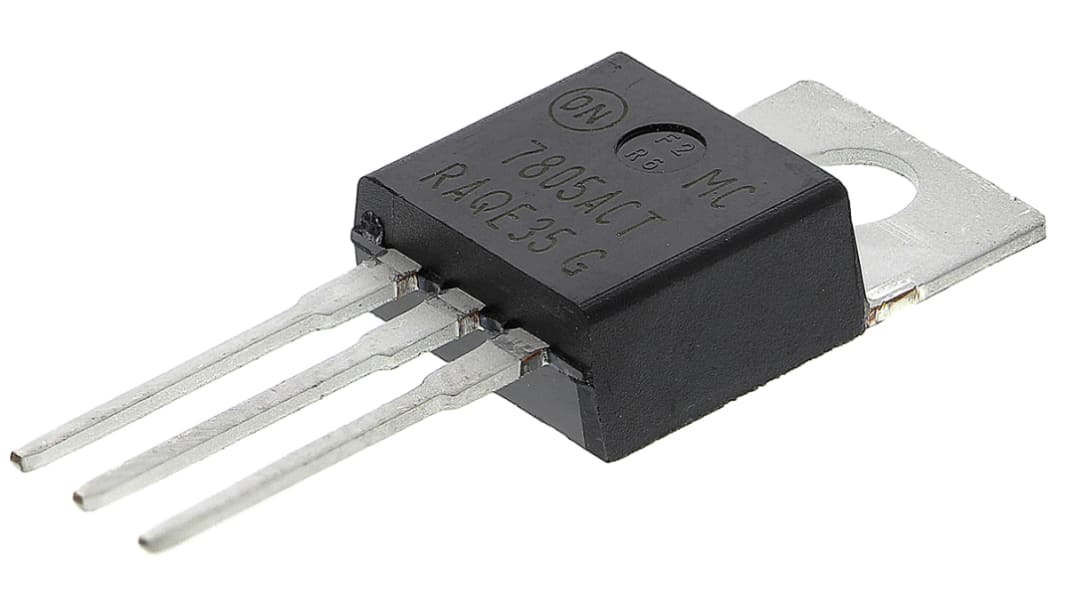

onsemi MC7805ACTG, 1 Linear Voltage, Voltage Regulator 1A, 5 V 3-Pin, TO-220

View all Voltage Regulators

Subtotal (1 pack of 20 units)*

£6.82

(exc. VAT)

£8.18

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
  • Plus 60 unit(s) shipping from 29 October 2025
  • Plus 660 unit(s) shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
20 +£0.341£6.82

*price indicative

Packaging Options:
RS Stock No.:
463-054
Mfr. Part No.:
MC7805ACTG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Regulator Type

Linear Voltage

Maximum Output Current

1A

Number of Outputs

1

Output Voltage

5 V

Line Regulation

10 mV

Accuracy

±4%

Load Regulation

25 mV

Polarity

Positive

Mounting Type

Through Hole

Quiescent Current

3.2mA

Package Type

TO-220

Pin Count

3

Output Type

Fixed

Dimensions

10.28 x 4.82 x 30.02mm

Height

30.02mm

Maximum Operating Temperature

+125 °C

Maximum Input Voltage

35 V

Minimum Operating Temperature

0 °C

Length

10.28mm

Width

4.82mm

5V MC7805 Linear voltage regulator, ON Semiconductor


This remarkable ON Semiconductor 5-volt linear voltage regulator comes under the MC7805 family. These products are monolithic integrated circuits designed as fixed-voltage regulators for a wide range of applications including local, on-card regulation. The positive 7805 voltage regulator requires no external components and incorporates internal thermal overload protection and current limiting plus safe area compensation.


Linear Voltage Regulators, ON Semiconductor
