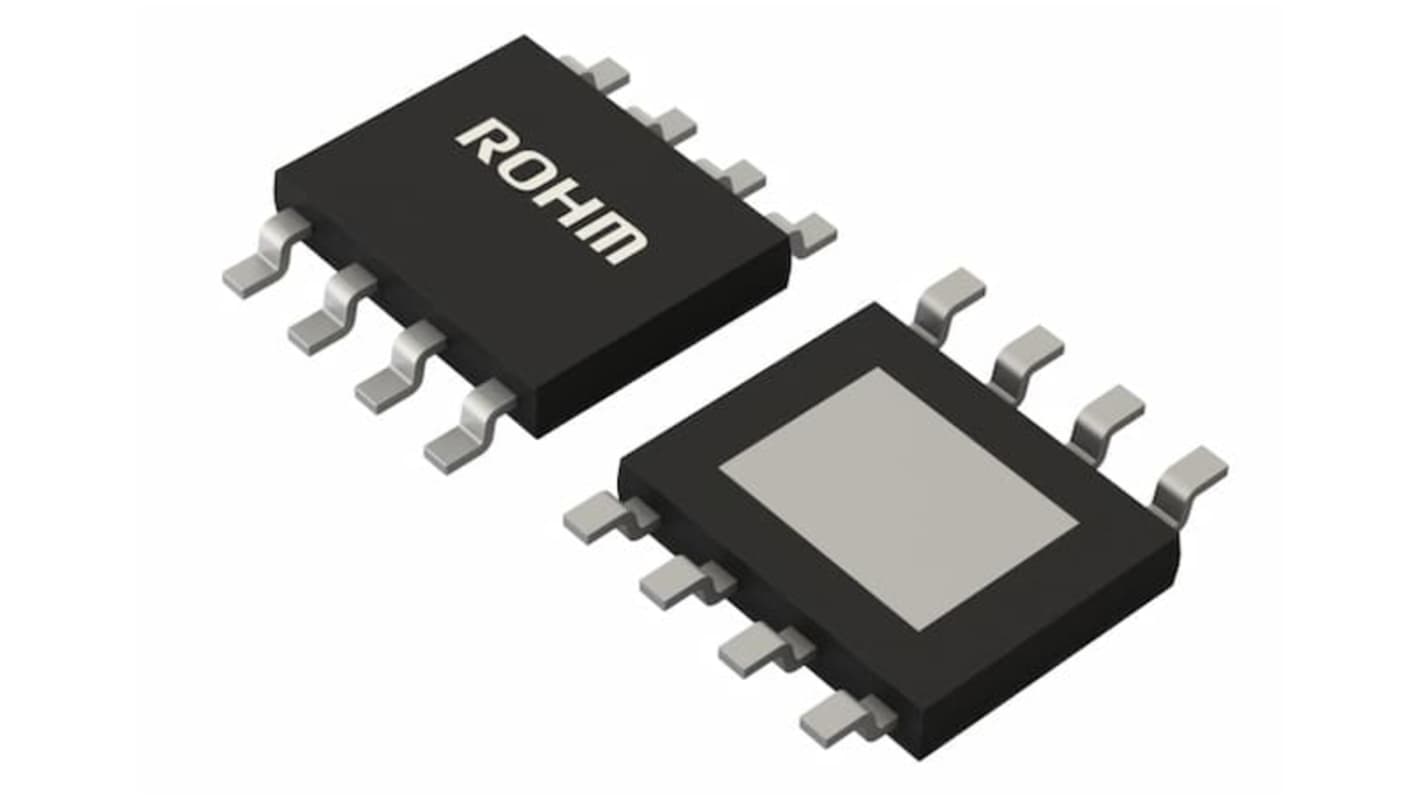

ROHM BD12IC0JEFJ-E2, 1 Low Dropout Voltage, Voltage Regulator 1A, 1.2 V 8-Pin, HTSOP-J8
- RS Stock No.:
- 687-476
- Mfr. Part No.:
- BD12IC0JEFJ-E2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 2 units)*
£1.42
(exc. VAT)
£1.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
2 - 18 | £0.71 | £1.42 |
20 - 48 | £0.465 | £0.93 |
50 - 198 | £0.27 | £0.54 |
200 - 998 | £0.265 | £0.53 |
1000 + | £0.26 | £0.52 |
*price indicative
- RS Stock No.:
- 687-476
- Mfr. Part No.:
- BD12IC0JEFJ-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Regulator Function | LDO | |
Regulator Type | Low Dropout Voltage | |
Maximum Output Current | 1A | |
Number of Outputs | 1 | |
Output Voltage | 1.2 V | |
Line Regulation | 1 % | |
Load Regulation | 1.5 % | |
Accuracy | ±1% | |
Package Type | HTSOP-J8 | |
Pin Count | 8 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Regulator Function LDO | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 1A | ||
Number of Outputs 1 | ||
Output Voltage 1.2 V | ||
Line Regulation 1 % | ||
Load Regulation 1.5 % | ||
Accuracy ±1% | ||
Package Type HTSOP-J8 | ||
Pin Count 8 | ||
- COO (Country of Origin):
- JP
The ROHM LDO regulators capable of delivering an output current of 1.0A. Designed for versatility, it supports both fixed and variable output voltage options, allowing users to tailor their applications from 1.2V up to 4.5V. This series is enhanced with built-in over current protection and thermal shutdown circuits, ensuring device longevity and reliability under demanding conditions. The regulators are available in compact HTSOP-J8 and HVSOF6 packages, making them suitable for space-constrained digital appliances. By incorporating zero μA shutdown mode, these regulators contribute to energy efficiency, making them ideal for modern electronic designs.
Integrated over current protection (OCP) guards against output shorting, enhancing reliability
Thermal shutdown circuit protects the device under overload conditions, prolonging its lifespan
Zero μA shutdown mode helps conserve power when the device is inactive
Usable with ceramic capacitors, enabling compact layouts and extended operational life
Input supply voltage range from 2.4V to 5.5V accommodates a wide range of power supply sources
Operating temperature range of -25 to +85°C supports diverse environmental conditions
Two package types (HTSOP-J8 and HVSOF6) cater to different design requirements without compromising performance
Thermal shutdown circuit protects the device under overload conditions, prolonging its lifespan
Zero μA shutdown mode helps conserve power when the device is inactive
Usable with ceramic capacitors, enabling compact layouts and extended operational life
Input supply voltage range from 2.4V to 5.5V accommodates a wide range of power supply sources
Operating temperature range of -25 to +85°C supports diverse environmental conditions
Two package types (HTSOP-J8 and HVSOF6) cater to different design requirements without compromising performance
