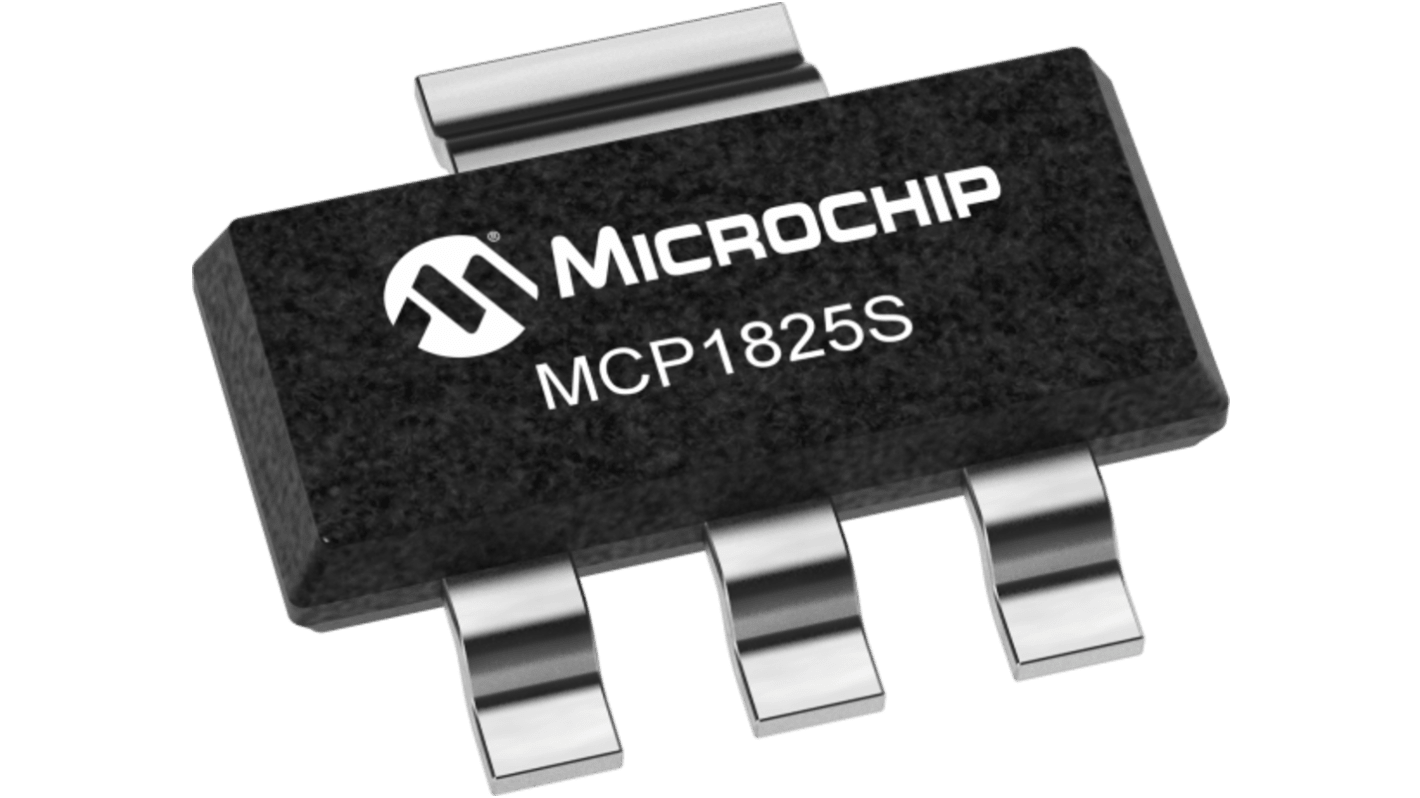

Microchip MCP1825S-5002E/DB, 5 Low Dropout Voltage, Voltage Regulator 500mA, 5 V 3-Pin, SOT-223
- RS Stock No.:
- 649-390
- Mfr. Part No.:
- MCP1825S-5002E/DB
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 10 units)*
£4.90
(exc. VAT)
£5.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.49 | £4.90 |
100 - 490 | £0.475 | £4.75 |
500 - 990 | £0.461 | £4.61 |
1000 + | £0.397 | £3.97 |
*price indicative
- RS Stock No.:
- 649-390
- Mfr. Part No.:
- MCP1825S-5002E/DB
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Regulator Function | LDO | |
Regulator Type | Low Dropout Voltage | |
Maximum Output Current | 500mA | |
Output Voltage | 5 V | |
Number of Outputs | 5 | |
Line Regulation | 0.05 % | |
Load Regulation | 0.1 % | |
Accuracy | 2% | |
Package Type | SOT-223 | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Regulator Function LDO | ||
Regulator Type Low Dropout Voltage | ||
Maximum Output Current 500mA | ||
Output Voltage 5 V | ||
Number of Outputs 5 | ||
Line Regulation 0.05 % | ||
Load Regulation 0.1 % | ||
Accuracy 2% | ||
Package Type SOT-223 | ||
Pin Count 3 | ||
The Microchip 500 mA low dropout linear regulator delivers high current and low output voltages, available in both fixed and adjustable output voltage versions, including a 3-pin fixed voltage option, and is stable when used with ceramic output capacitors that naturally provide lower output noise and help reduce the overall size and cost of the regulator solution, requiring only 1 microfarad of output capacitance for stabilization.
Passes Automotive AEC-Q100 Reliability Testing
Short Circuit Current Limiting and Over temperature Protection
Fast Response to Load Transients
Short Circuit Current Limiting and Over temperature Protection
Fast Response to Load Transients
