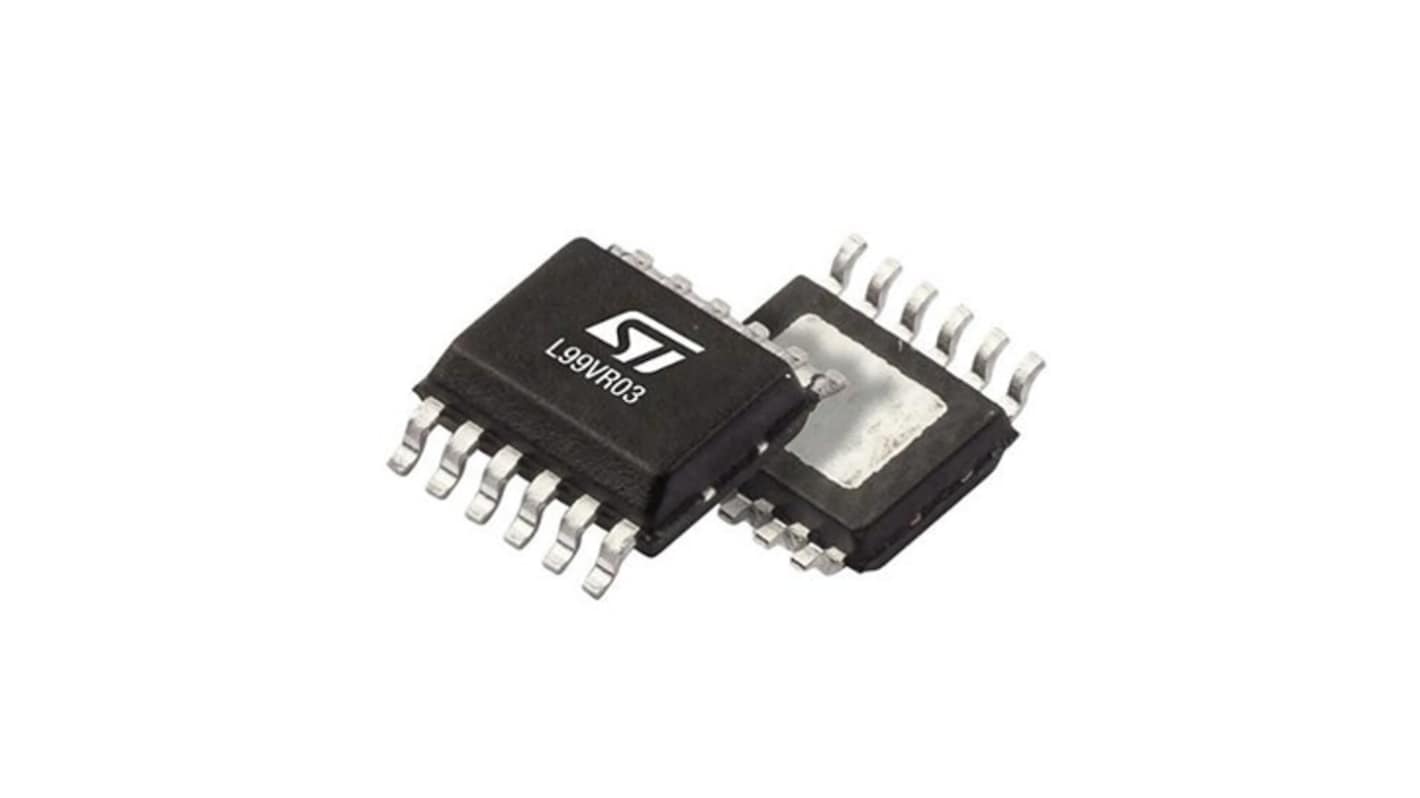

STMicroelectronics L99VR035PTR Linear Voltage, Voltage Regulator 300mA, 5 V 12-Pin, PWSSO12
- RS Stock No.:
- 648-872
- Mfr. Part No.:
- L99VR035PTR
- Brand:
- STMicroelectronics
Subtotal (1 reel of 2500 units)*
£1,507.50
(exc. VAT)
£1,810.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.603 | £1,507.50 |
*price indicative
- RS Stock No.:
- 648-872
- Mfr. Part No.:
- L99VR035PTR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Regulator Function | Linear | |
Regulator Type | Linear Voltage | |
Maximum Output Current | 300mA | |
Output Voltage | 5 V | |
Line Regulation | 10 mV | |
Accuracy | ±2% | |
Load Regulation | 10 mV | |
Package Type | PWSSO12 | |
Pin Count | 12 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Regulator Function Linear | ||
Regulator Type Linear Voltage | ||
Maximum Output Current 300mA | ||
Output Voltage 5 V | ||
Line Regulation 10 mV | ||
Accuracy ±2% | ||
Load Regulation 10 mV | ||
Package Type PWSSO12 | ||
Pin Count 12 | ||
The STMicroelectronics Low dropout linear voltage regulator designed for automotive applications. The LDO delivers up to 300 mA of load current and consumes as low as 800 nA of quiescent current when the regulator is disabled and only 3.5 μA quiescent current at no load. It is quite suitable for standby microprocessor control-unit systems, especially in automotive applications. The regulator output current is internally limited so that the device is protected against short-circuit, as it features over temperature protection.
PWSSO12 package
AEC Q100 qualified
Sustaining slow ramp up applications
RoHS compliant
Tape and reel packaging
AEC Q100 qualified
Sustaining slow ramp up applications
RoHS compliant
Tape and reel packaging
