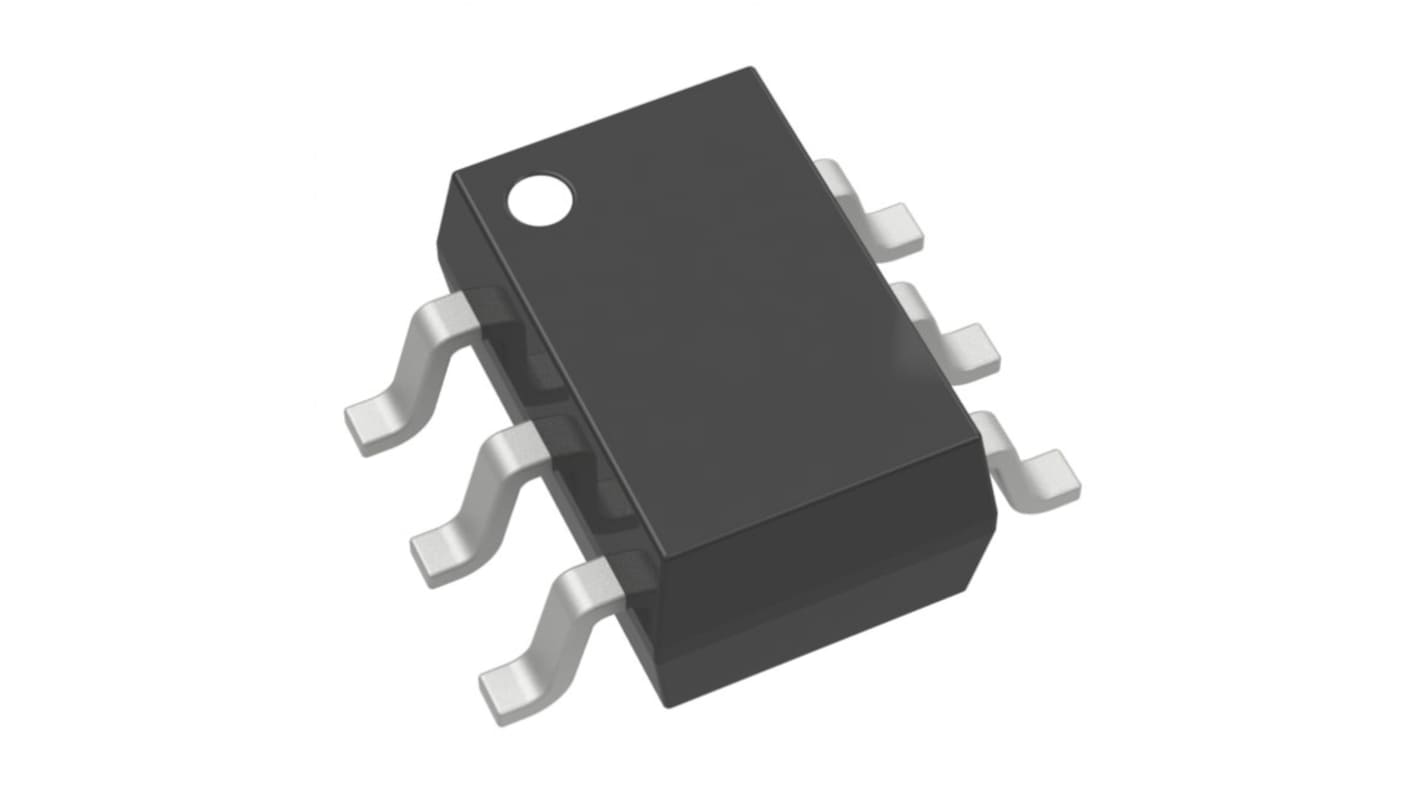

MPS MP3217DJ-LF-P, 1 Step-Up Converter, Converter 500mA, 36 V, 670 kHz 6-Pin, TSOT23-6
- RS Stock No.:
- 337-635
- Mfr. Part No.:
- MP3217DJ-LF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-635
- Mfr. Part No.:
- MP3217DJ-LF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Regulator Function | Step Up Converter | |
Regulator Type | Step-Up Converter | |
Maximum Output Current | 500mA | |
Number of Outputs | 1 | |
Output Voltage | 36 V | |
Package Type | TSOT23-6 | |
Pin Count | 6 | |
Maximum Switching Frequency | 670 kHz | |
Select all | ||
---|---|---|
Brand MPS | ||
Regulator Function Step Up Converter | ||
Regulator Type Step-Up Converter | ||
Maximum Output Current 500mA | ||
Number of Outputs 1 | ||
Output Voltage 36 V | ||
Package Type TSOT23-6 | ||
Pin Count 6 | ||
Maximum Switching Frequency 670 kHz | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Step up Converter is a monolithic step up converter integrating a 0.5A, 0.6O internal switch. Its uses current mode, fixed frequency architecture to regulate the output voltage, providing fast transient response and cycle by cycle current limit. Its includes under voltage lockout, over voltage protection and thermal overload protection preventing damage in the event of an output overload.
Internal 0.6Ω power MOSFET
Up to 36V output voltage
670kHz fixed switching frequency
42V over voltage shutdown
Cycle by cycle over current protection
Up to 36V output voltage
670kHz fixed switching frequency
42V over voltage shutdown
Cycle by cycle over current protection
