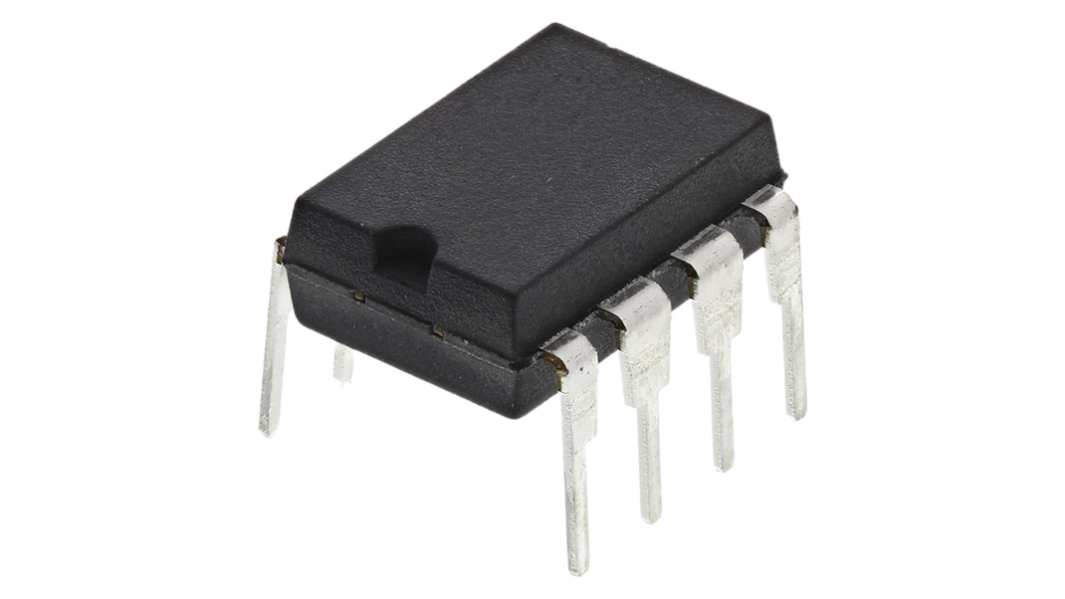

Analog Devices Fixed Series Voltage Reference 5V ±0.04 % 8-Pin PDIP, AD586MNZ

RS Stock No.:: 709-5415P
Mfr. Part No.:: AD586MNZ
Brand:: Analog Devices

Analog Devices Fixed Series Voltage Reference 5V ±0.04 % 8-Pin PDIP, AD586MNZ

Discontinued product

RS Stock No.:: 709-5415P
Mfr. Part No.:: AD586MNZ
Brand:: Analog Devices

AD586 High Precision 5 V Reference Data Sheet
ESD Control Selection Guide V1

Attribute	Value
Nominal Voltage	5V
Package Type	PDIP
Reference Type	Fixed
Initial Accuracy	±0.04 %
Mounting Type	Through Hole
Topology	Series
Maximum Output Current	10mA
Maximum Input Voltage	36 V
Minimum Output Voltage	4.998 V
Maximum Output Voltage	5.002 V
Pin Count	8
Line Regulation	100 μV/V
Load Regulation	400 μV/mA
Dimensions	9.27 x 7.24 x 3.43mm
Width	7.24mm
Length	9.27mm
Maximum Operating Temperature	+70 °C
Minimum Operating Temperature	0 °C
Height	3.43mm

Analog Devices Fixed Series Voltage Reference 5V ±0.04 % 8-Pin PDIP, AD586MNZ

Voltage Reference, 5V, Analog Devices
