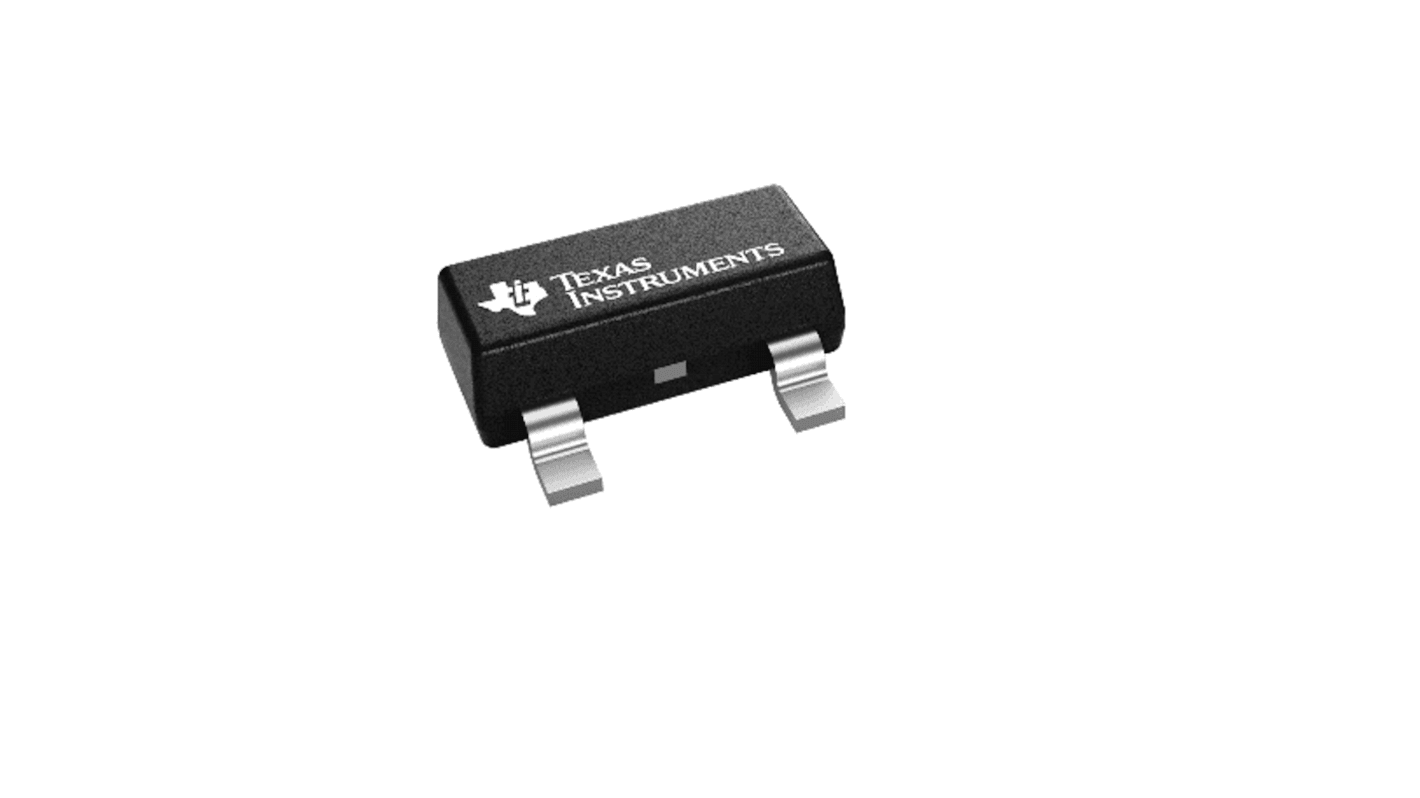

Texas Instruments Precision Shunt Voltage Reference ±0.2 % 3-Pin SOT-23, LM4040BIM3-10.0/NOPB
- RS Stock No.:
- 268-7528
- Mfr. Part No.:
- LM4040BIM3-10.0/NOPB
- Brand:
- Texas Instruments
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£13.11
(exc. VAT)
£15.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 360 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.311 | £13.11 |
| 50 - 90 | £1.283 | £12.83 |
| 100 - 240 | £1.017 | £10.17 |
| 250 - 490 | £0.999 | £9.99 |
| 500 + | £0.843 | £8.43 |
*price indicative
- RS Stock No.:
- 268-7528
- Mfr. Part No.:
- LM4040BIM3-10.0/NOPB
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Voltage Reference | |
| Reference Voltage | 10V | |
| Package Type | SOT-23 | |
| Reference Type | Precision | |
| Initial Accuracy | ±0.2 % | |
| Mount Type | Surface | |
| Temperature Coefficient | 100 ppm/°C | |
| Topology | Shunt | |
| Output Current | 10mA | |
| Maximum Input Voltage | 10V | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.9mm | |
| Length | 2.1mm | |
| Series | LM4040BIM3-10.0/NOPB | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Output Type | Shunt | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Voltage Reference | ||
Reference Voltage 10V | ||
Package Type SOT-23 | ||
Reference Type Precision | ||
Initial Accuracy ±0.2 % | ||
Mount Type Surface | ||
Temperature Coefficient 100 ppm/°C | ||
Topology Shunt | ||
Output Current 10mA | ||
Maximum Input Voltage 10V | ||
Pin Count 3 | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 150°C | ||
Height 0.9mm | ||
Length 2.1mm | ||
Series LM4040BIM3-10.0/NOPB | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
Output Type Shunt | ||
The Texas Instrument precision voltage reference is available in the sub miniature package form. The Advanced design of this voltage reference eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load.
SOT 23 AEC Q100 grades 1 and 3 available
Small packages
Tolerates capacitive loads
Low temperature coefficient
