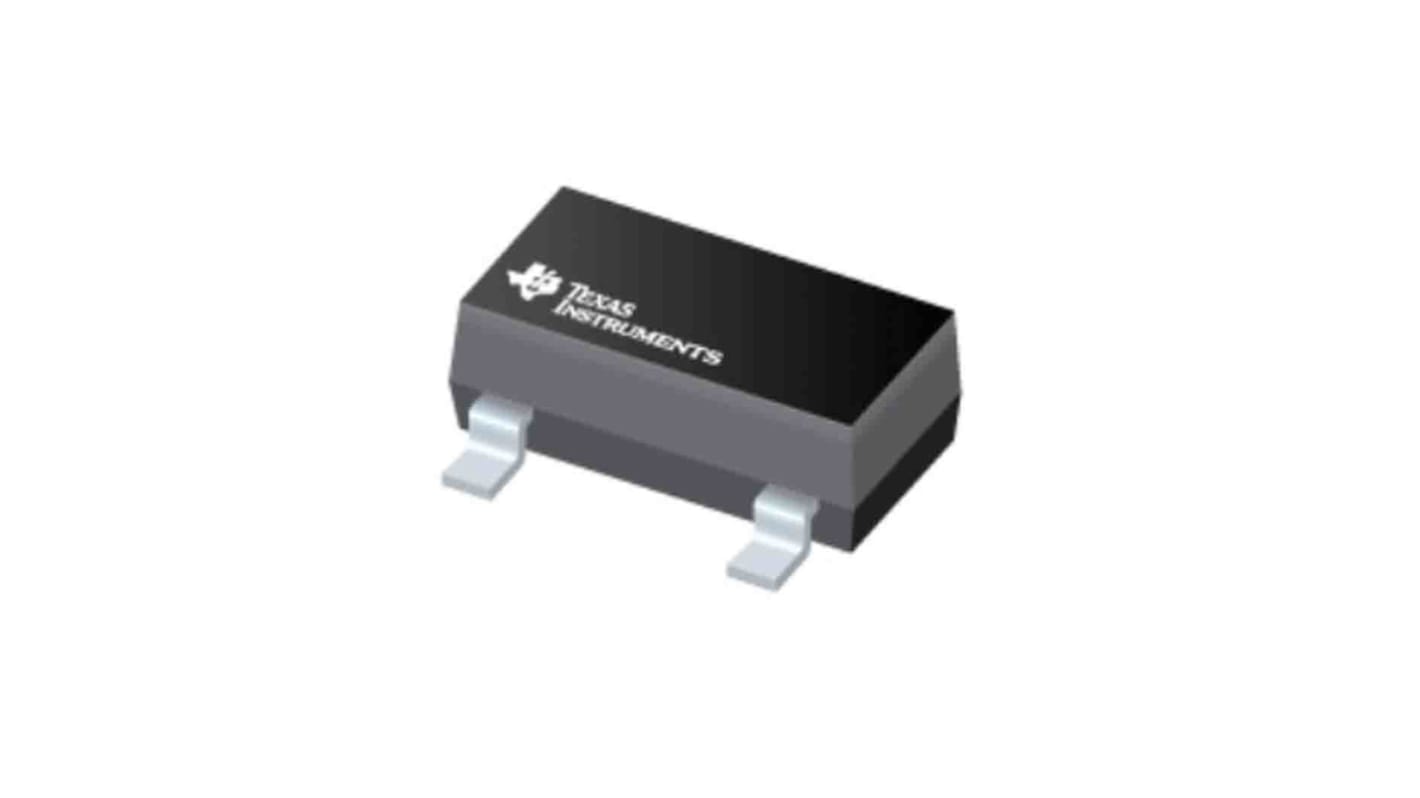

Texas Instruments Precision Series Voltage Reference 0.2 % 3-Pin SOT-23, REF3125AIDBZT
- RS Stock No.:
- 197-7492
- Mfr. Part No.:
- REF3125AIDBZT
- Brand:
- Texas Instruments
Bulk discount available
Subtotal (1 pack of 5 units)*
£10.95
(exc. VAT)
£13.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 410 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.19 | £10.95 |
| 25 - 45 | £2.08 | £10.40 |
| 50 - 120 | £1.998 | £9.99 |
| 125 - 245 | £1.946 | £9.73 |
| 250 + | £1.898 | £9.49 |
*price indicative
- RS Stock No.:
- 197-7492
- Mfr. Part No.:
- REF3125AIDBZT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Voltage Reference | |
| Reference Voltage | 2.5V | |
| Package Type | SOT-23 | |
| Reference Type | Precision | |
| Output Voltage | 2.5 V | |
| Initial Accuracy | 0.2 % | |
| Mount Type | Surface | |
| Temperature Coefficient | 10 ppm/°C | |
| Topology | Series | |
| Output Current | 10mA | |
| Maximum Input Voltage | 5.5V | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | REF3125 | |
| Standards/Approvals | No | |
| Length | 3.04mm | |
| Height | 1.05mm | |
| Load Regulation | 30 μV/mA (source), 50 μV/mA (Sink) | |
| Width | 1.4 mm | |
| Minimum Input Voltage | 2.55V | |
| Output Type | Fixed | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Voltage Reference | ||
Reference Voltage 2.5V | ||
Package Type SOT-23 | ||
Reference Type Precision | ||
Output Voltage 2.5 V | ||
Initial Accuracy 0.2 % | ||
Mount Type Surface | ||
Temperature Coefficient 10 ppm/°C | ||
Topology Series | ||
Output Current 10mA | ||
Maximum Input Voltage 5.5V | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series REF3125 | ||
Standards/Approvals No | ||
Length 3.04mm | ||
Height 1.05mm | ||
Load Regulation 30 μV/mA (source), 50 μV/mA (Sink) | ||
Width 1.4 mm | ||
Minimum Input Voltage 2.55V | ||
Output Type Fixed | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
