- RS Stock No.:
- 177-2826
- Mfr. Part No.:
- LM4040DYM3-2.5-TR
- Brand:
- Microchip
3000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.177
(exc. VAT)
£0.212
(inc. VAT)
Units | Per unit | Per Reel* |
3000 + | £0.177 | £531.00 |
*price indicative |
- RS Stock No.:
- 177-2826
- Mfr. Part No.:
- LM4040DYM3-2.5-TR
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details

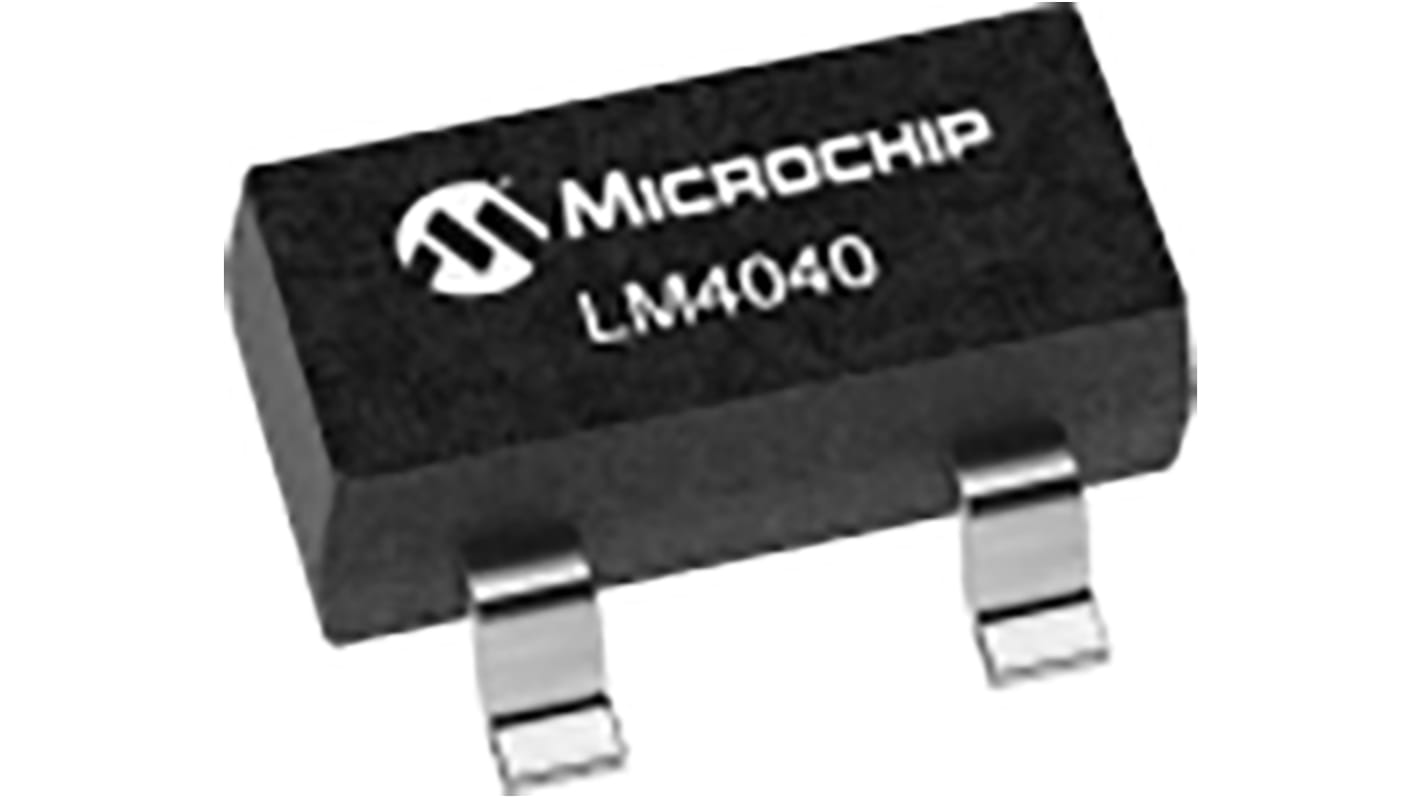

Ideal for space critical applications, the LM4040 and LM4041 precision voltage references are available in the SOT-23 surface-mount package. The LM4040 is the available in fixed reverse breakdown voltages of 2.5V, 4.096V and 5.0V. The LM4041 is available with a fixed 1.225V or an adjustable reverse breakdown voltage. The minimum operating current ranges from 60μA for the LM4041-1.2 to 74μA for the LM4040-5.0. LM4040 versions have a maximum operating current of 15mA. LM4041 versions have a maximum operating current of 12mA. The LM4040 and LM4041 have bandgap reference temperature drift curvature correction and low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents.
Additional Features:
Small SOT-23 package
No output capacitor required
Tolerates capacitive loads
Fixed reverse breakdown voltages of 2.5V, 4.096V and 5.0
Small SOT-23 package
No output capacitor required
Tolerates capacitive loads
Fixed reverse breakdown voltages of 2.5V, 4.096V and 5.0
Specifications
Attribute | Value |
---|---|
Nominal Voltage | 2.5V |
Package Type | SOT-23 |
Reference Type | Precision |
Initial Accuracy | ±1% |
Mounting Type | Surface Mount |
Topology | Shunt |
Maximum Output Current | 15mA |
Maximum Input Voltage | 15 V |
Maximum Output Voltage | 2.5 V |
Pin Count | 3 |
Dimensions | 0.9 x 2.92 x 1.3mm |
Maximum Operating Temperature | +85 °C |
Length | 2.92mm |
Height | 0.9mm |
Width | 1.3mm |
Minimum Operating Temperature | -40 °C |
