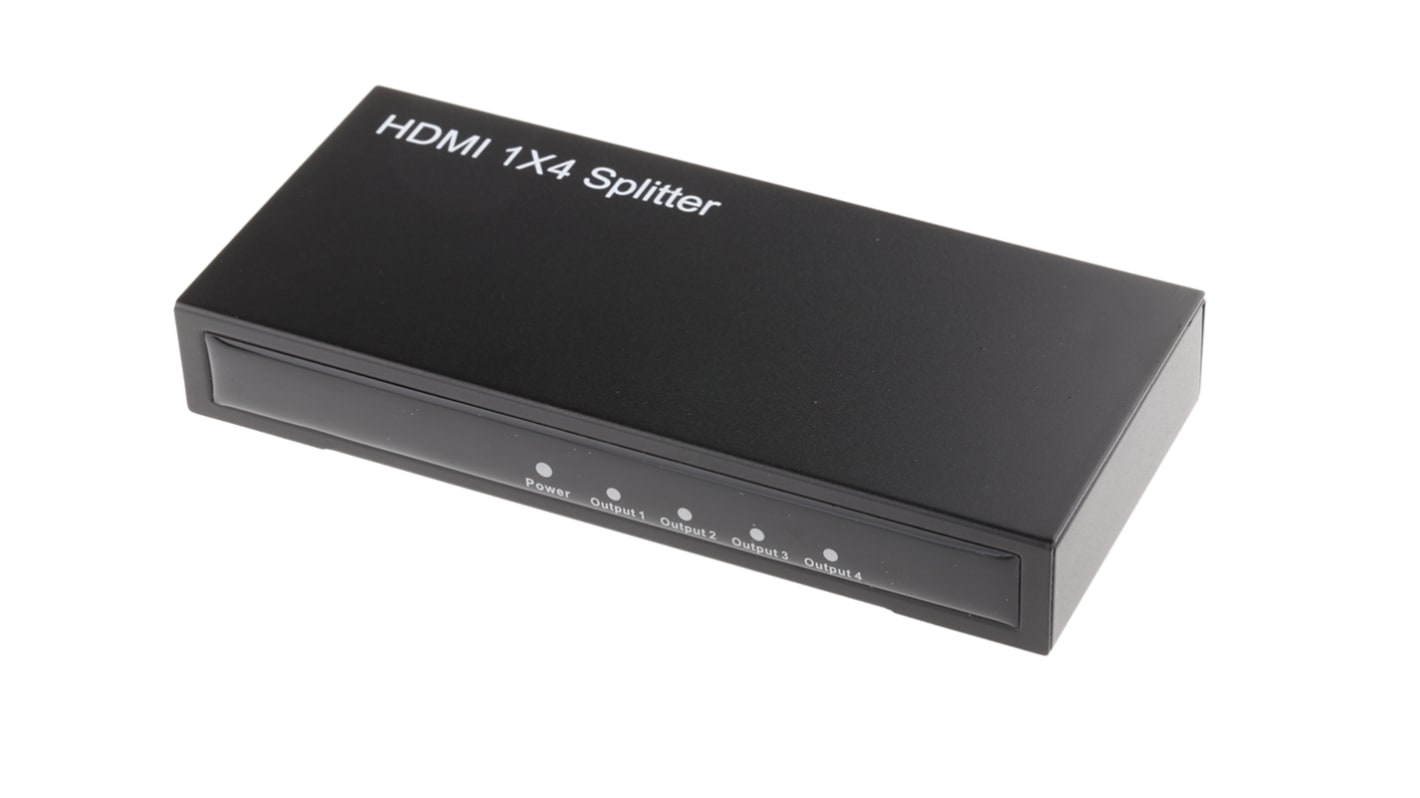

NewLink 4 Port 1 Input 4 Output HDMI Splitter 1920 x 1080

View this category

Subtotal (1 unit)*

£66.50

(exc. VAT)

£79.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 10 unit(s) shipping from 06 October 2025
  • Plus 9 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£66.50

*price indicative

RS Stock No.:
783-9827
Mfr. Part No.:
HD-SP204DUO
Brand:
NewLink
Find similar products by selecting one or more attributes.
Select all

Brand

NewLink

Device Type

Splitter

Video Connection Type

HDMI

Number of Ports

4

Number of Video Inputs

1

Number of Video Outputs

4

Maximum Resolution

1920 x 1080

Power Source

AC Adapter

Audio Connection Type

HDMI

COO (Country of Origin):
CN

HDMI Splitter


The HD-SP204 splitter allow you to connect the output from a single High Definition source to eight displays. For example, a set top box, DVD player or game console to 4 separate HDMI equipped displays.
The splitter output can achieve a total distance transmission of an HDMI signal of 10 m (5 m before and 5 m after splitter). Although possible, it is not recommended to use a cable longer than 5 m before splitter

Features and Benefits


• Easy to Use: Install in seconds, no need of setting
• Distribution: Eight identical HDMI outputs
• HDCP 1.0/1.1 Compliant
• HDMI 1.3b Compatible
• Support 225MHz/2.25Gbps per channel 6.75 Gbps all channel) bandwidth
• Supports HDMI resolutions up to 1080P
• Cascadable up to three times
• FCC CE Certified
• Devices with DVI output are not supported due to the lack of signal control

Supplied with

4 Port HDMI switch
User manual
Power supply (UK Plug)
Remote control
