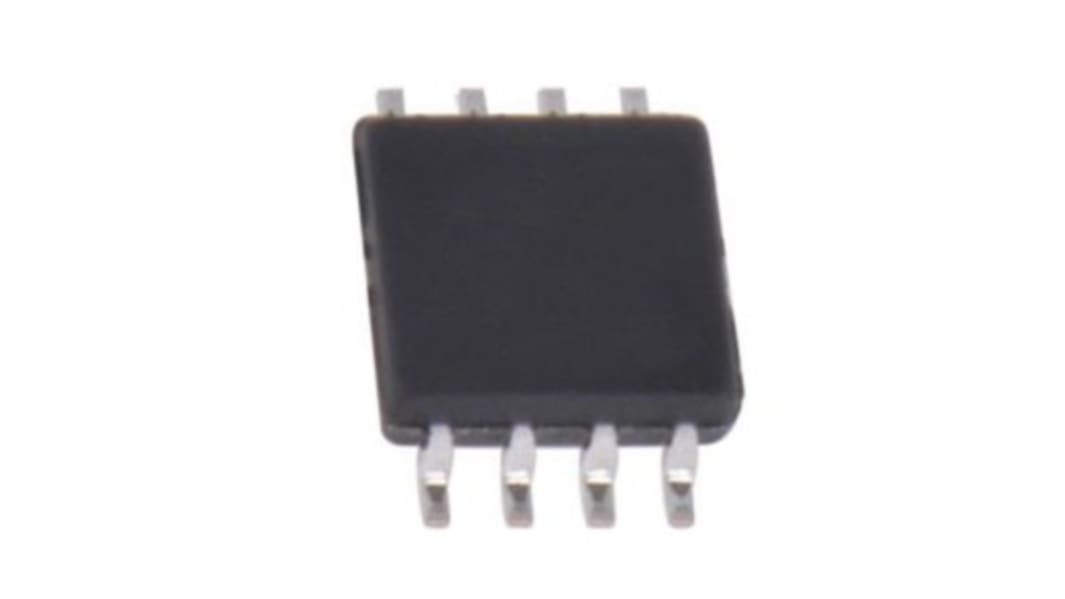

NJW1351RB1-TE1 Nisshinbo Micro Devices, Video Amplifier BiCMOS O/P, 8-Pin TVSP8
- RS Stock No.:
- 244-9829
- Mfr. Part No.:
- NJW1351RB1-TE1
- Brand:
- Nisshinbo Micro Devices
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 2000)
£0.606
(exc. VAT)
£0.727
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 - 2000 | £0.606 | £1,212.00 |
| 4000 - 4000 | £0.515 | £1,030.00 |
| 6000 + | £0.463 | £926.00 |
| *price indicative | ||
- RS Stock No.:
- 244-9829
- Mfr. Part No.:
- NJW1351RB1-TE1
- Brand:
- Nisshinbo Micro Devices
Technical Reference
Legislation and Compliance
Product Details
The New Japan Radio NJW1351 series is a low voltage video amplifier with LPF circuit. By the internal charge pump circuit, output capacitor is unnecessary. It features low power and small package, and is suitable for low power design on downsizing of portable video system and system with video output.
Output coupling capacitor less
6dB amplifier
Internal 75 ohm Driver Circuit
6th order LPF 38dB at 19MHz typ.
Power Save Circuit
Bi CMOS Technology
Package Outline is MSOP8
6dB amplifier
Internal 75 ohm Driver Circuit
6th order LPF 38dB at 19MHz typ.
Power Save Circuit
Bi CMOS Technology
Package Outline is MSOP8
Specifications
sdjkfsjkd | Value |
|---|---|
| Power Supply Type | Single |
| IC Type | Video Amplifier IC |
| Typical Single Supply Voltage | 2.5 → 3.45 V |
| Number of Channels per Chip | 1 |
| Output Type | BiCMOS |
| Package Type | TVSP8 |
| Pin Count | 8 |
