StarTech.com Male VGA to Male VGA Cable, 1m Black
- RS Stock No.:
- 176-5737
- Distrelec Article No.:
- 302-18-774
- Mfr. Part No.:
- MXTMMHQ1M
- Brand:
- StarTech.com
Subtotal (1 unit)*
£6.95
(exc. VAT)
£8.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 53 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.95 |
*price indicative
- RS Stock No.:
- 176-5737
- Distrelec Article No.:
- 302-18-774
- Mfr. Part No.:
- MXTMMHQ1M
- Brand:
- StarTech.com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | StarTech.com | |
| Connector 1 | VGA | |
| Connector 2 | VGA | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Male | |
| Length | 1m | |
| Outer Sheath Material | PVC | |
| Sheath Colour | Black | |
| Size of Strands | 28 AWG | |
Select all | ||
|---|---|---|
Brand StarTech.com | ||
Connector 1 VGA | ||
Connector 2 VGA | ||
Connector 1 Gender Male | ||
Connector 2 Gender Male | ||
Length 1m | ||
Outer Sheath Material PVC | ||
Sheath Colour Black | ||
Size of Strands 28 AWG | ||
- COO (Country of Origin):
- CN

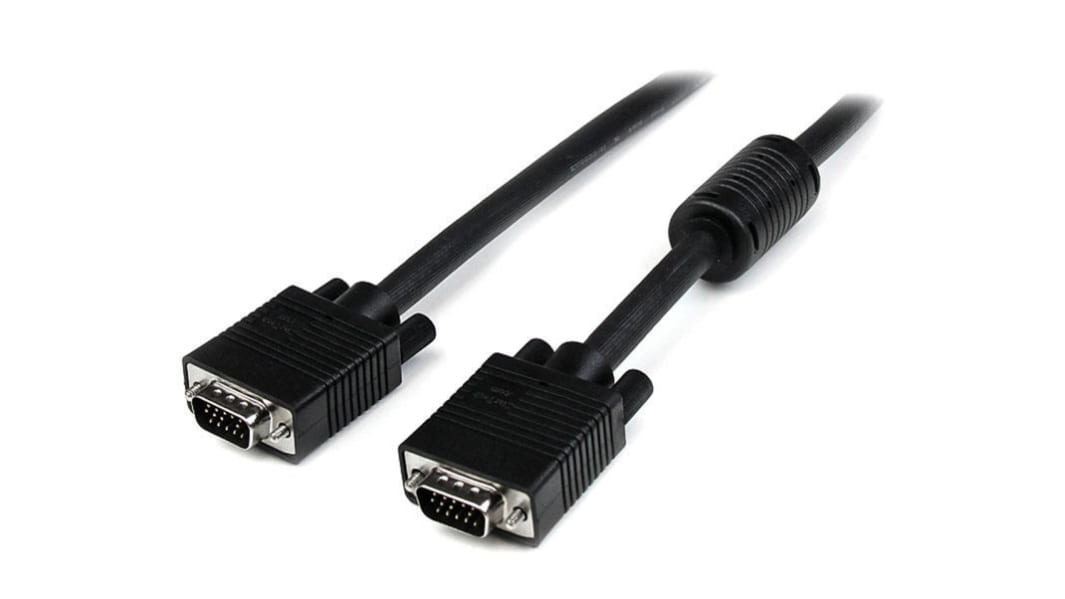

MXTMMHQ1M VGA to VGA Cable
The MXTMMHQ1M High Resolution VGA Cable (1-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
Features & Benefits
• Triple coaxial + twisted-pair wire for crystal clear display
• Durably constructed cable, with high quality HD15 connectors
• Impedance matched at 75 Ohms for full brightness and vibrant picture colour from your VGA monitor
• High quality VGA connectors with moulded PVC strain relief
• Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
• Ferrite cores to help eliminate EMI interference
• Backed by StarTech.com lifetime warranty
• Durably constructed cable, with high quality HD15 connectors
• Impedance matched at 75 Ohms for full brightness and vibrant picture colour from your VGA monitor
• High quality VGA connectors with moulded PVC strain relief
• Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
• Ferrite cores to help eliminate EMI interference
• Backed by StarTech.com lifetime warranty
What’s in the package?
• 10m Coax High Resolution Monitor VGA Cable - HD15 M/M
• Nuts
• Nuts
FAQs
When should I use a longer video cable vs. a video extender?
You should only use video converters and extenders if it is absolutely necessary to do so. In many cases, most video converters and extenders are not necessary if you purchase the correct cable.
The following table lists the maximum length of cable for common video standards.
DisplayPort - 50 ft. (15.2m)
HDMI - 50 ft. (15.2m)
DVI - 50 ft. (15.2m)
VGA - 200 ft. (71m)
The following table lists the maximum length of cable for common video standards.
DisplayPort - 50 ft. (15.2m)
HDMI - 50 ft. (15.2m)
DVI - 50 ft. (15.2m)
VGA - 200 ft. (71m)
