Littelfuse Metal Oxide Varistor 2200 pF 200 A, Clamping 2000 V, Varistor 184.5 to 1155 V
- RS Stock No.:
- 878-1757
- Mfr. Part No.:
- V571DB40
- Brand:
- Littelfuse
Subtotal (1 unit)*
£44.49
(exc. VAT)
£53.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.49 |
*price indicative
- RS Stock No.:
- 878-1757
- Mfr. Part No.:
- V571DB40
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 184.5 to 1155 V | |
| Clamping Voltage VC | 2000V | |
| Clamping Current | 200A | |
| Mount Type | Quick Connect, Screw | |
| Diameter | 4 mm | |
| Maximum Surge Current | 40000A | |
| Capacitance | 2200pF | |
| Length | 60.3mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL1449, RoHS | |
| Depth | 15mm | |
| Automotive Standard | No | |
| Lead Pitch | 40.5mm | |
| Energy Rating | 1050J | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 184.5 to 1155 V | ||
Clamping Voltage VC 2000V | ||
Clamping Current 200A | ||
Mount Type Quick Connect, Screw | ||
Diameter 4 mm | ||
Maximum Surge Current 40000A | ||
Capacitance 2200pF | ||
Length 60.3mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL1449, RoHS | ||
Depth 15mm | ||
Automotive Standard No | ||
Lead Pitch 40.5mm | ||
Energy Rating 1050J | ||
Non Compliant

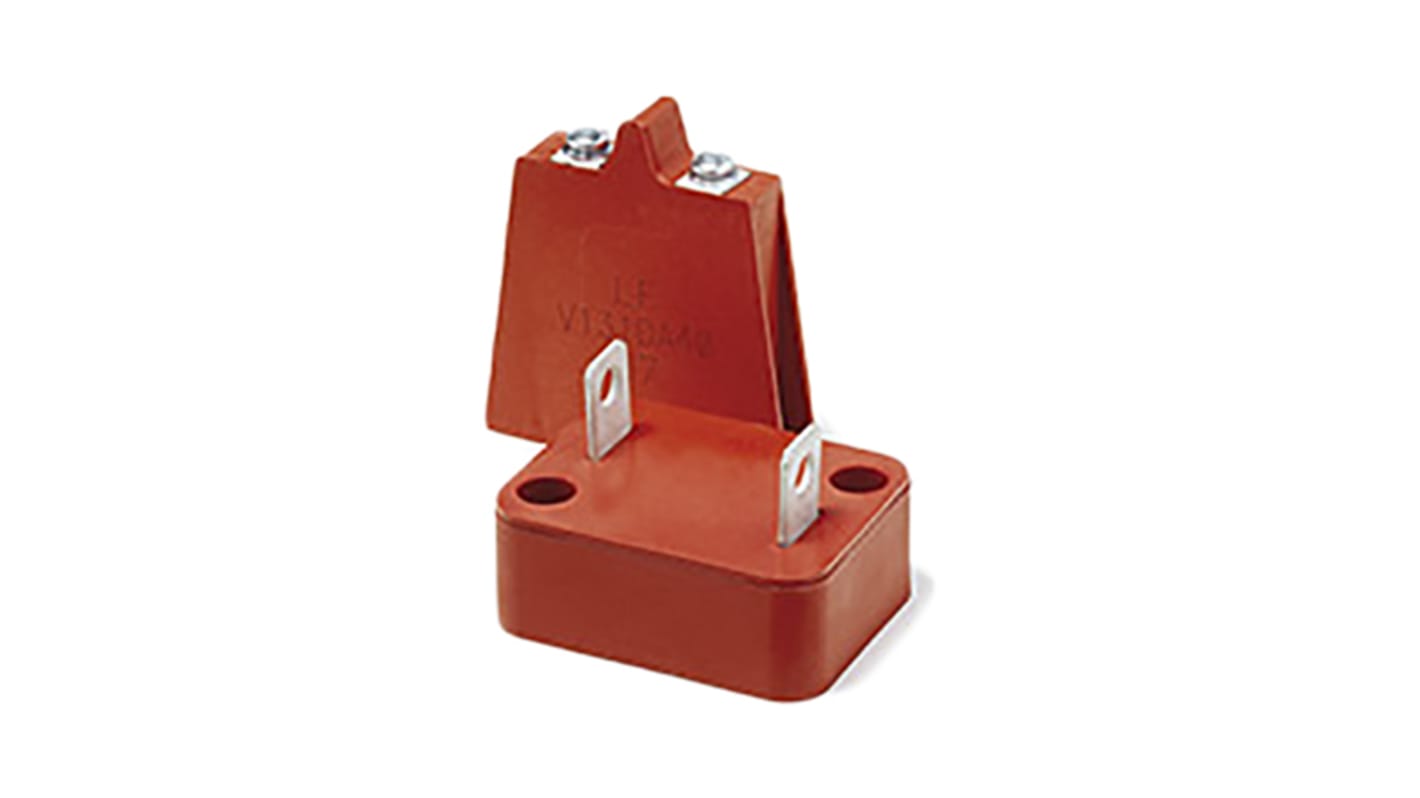

Littelfuse Metal Oxide Varistors - DA/DB Series
Littelfuse DA/DB series of MOV's are heavy duty industrial varistors that are designed to provide surge protection for motor controls and power supplies used in heavy duty equipment. Both the DA and DB Series feature improved creep and strike distance capability to minimize breakdown along the package surface design that provides complete electrical isolation of the disc sub-assembly.
Features:
DA-Screw Terminals, DB Quick Connect Push-on Connectors
RoHS compliant and Lead–free
High energy absorption capability
Wide operating voltage range
