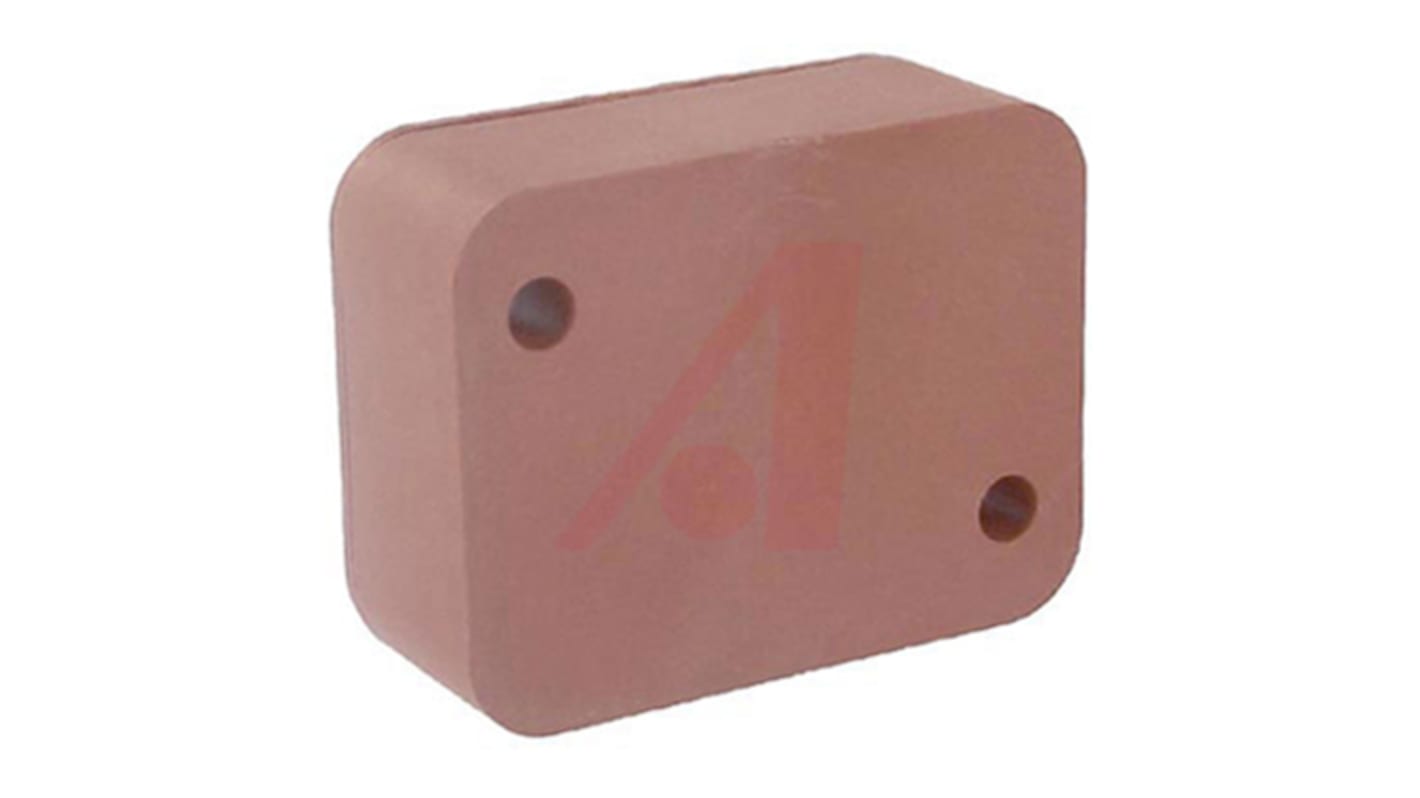

Littelfuse, DB Metal Oxide Varistor 3.8nF, Clamping 830V, Varistor 561V
- RS Stock No.:
- 876-8183
- Mfr. Part No.:
- V321DB40
- Brand:
- Littelfuse
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each
£38.03
(exc. VAT)
£45.64
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £38.03 |
| 10 - 24 | £36.99 |
| 25 - 49 | £36.02 |
| 50 - 99 | £35.10 |
| 100 + | £34.23 |
- RS Stock No.:
- 876-8183
- Mfr. Part No.:
- V321DB40
- Brand:
- Littelfuse
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IE
Product Details
Littelfuse Metal Oxide Varistors - DA/DB Series
Littelfuse DA/DB series of MOV's are heavy duty industrial varistors that are designed to provide surge protection for motor controls and power supplies used in heavy duty equipment. Both the DA and DB Series feature improved creep and strike distance capability to minimize breakdown along the package surface design that provides complete electrical isolation of the disc sub-assembly.
Features:
DA-Screw Terminals, DB Quick Connect Push-on Connectors
RoHS compliant and Lead–free
High energy absorption capability
Wide operating voltage range
DA-Screw Terminals, DB Quick Connect Push-on Connectors
RoHS compliant and Lead–free
High energy absorption capability
Wide operating voltage range
Specifications
Attribute | Value |
|---|---|
| Varistor Voltage | 561V |
| Maximum AC Voltage Rating | 320V |
| Maximum DC Voltage Rating | 420V |
| Clamping Voltage | 830V |
| Material | Metal |
| Energy | 460J |
| Series | DB |
| Diameter | 40mm |
| Maximum Surge Current | 40000A |
| Capacitance | 3.8nF |
| Length | 60.3mm |
| Dimensions | 60.3 x 46.8 x 23mm |
| Lead Pitch | 40.5mm |
