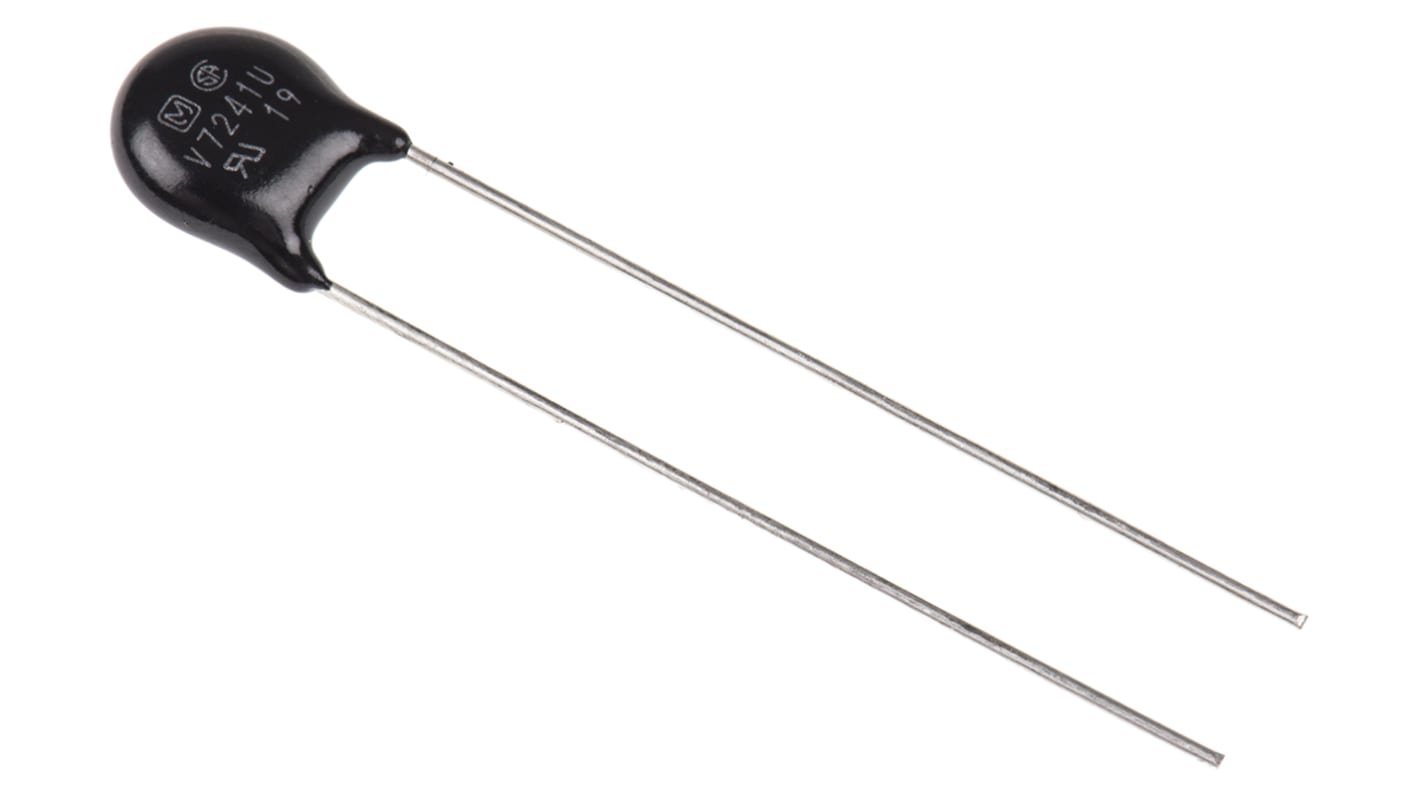

Panasonic, V Surge Absorber 120pF 10A, Clamping 710V, Varistor 430V
- RS Stock No.:
- 226-7996
- Mfr. Part No.:
- ERZV07D241
- Brand:
- Panasonic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£0.12
(exc. VAT)
£0.14
(inc. VAT)
- RS Stock No.:
- 226-7996
- Mfr. Part No.:
- ERZV07D241
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Varistor Voltage | 430V | |
Maximum AC Voltage Rating | 275V | |
Maximum DC Voltage Rating | 350V | |
Clamping Voltage | 710V | |
Clamping Current | 10A | |
Energy | 40J | |
Material | ZNR | |
Series | V | |
Diameter | 8.5mm | |
Maximum Surge Current | 1750A | |
Capacitance | 120pF | |
Length | 31.5mm | |
Thickness | 5.6mm | |
Dimensions | 8.5 (Dia.) x 5.6mm | |
Lead Pitch | 5mm | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Varistor Voltage 430V | ||
Maximum AC Voltage Rating 275V | ||
Maximum DC Voltage Rating 350V | ||
Clamping Voltage 710V | ||
Clamping Current 10A | ||
Energy 40J | ||
Material ZNR | ||
Series V | ||
Diameter 8.5mm | ||
Maximum Surge Current 1750A | ||
Capacitance 120pF | ||
Length 31.5mm | ||
Thickness 5.6mm | ||
Dimensions 8.5 (Dia.) x 5.6mm | ||
Lead Pitch 5mm | ||
Metal Oxide Varistors ZNR Series, 7mm Diameter, Panasonic
Large surge current handling capacity in relation to the compact size
Increased 2-surge current handling capability in relation to standard varistors
Increased 2-surge current handling capability in relation to standard varistors
