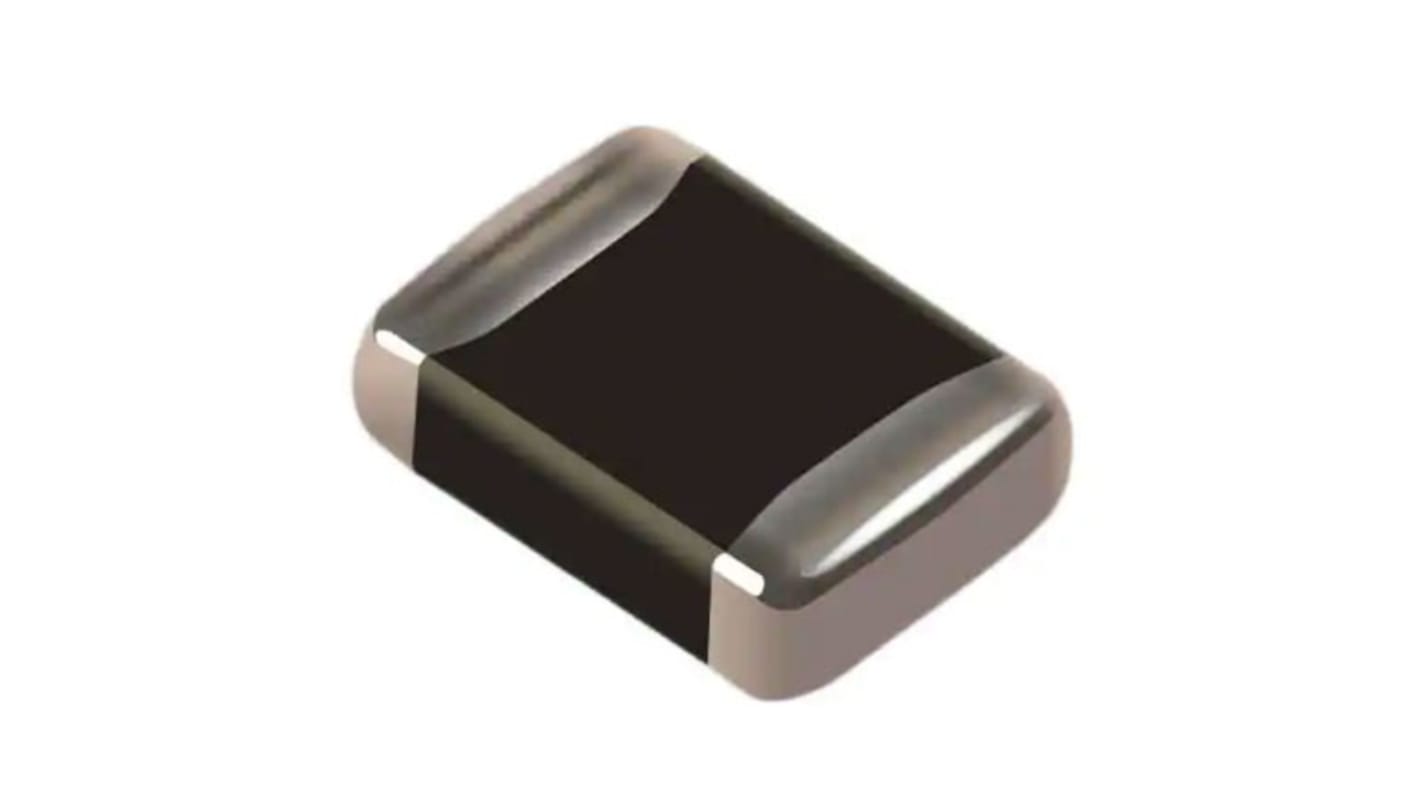

Bourns, ZVHT Varistor 3 nF 5 A, Clamping 54 V, Varistor 33 V, 1812
- RS Stock No.:
- 204-8783
- Mfr. Part No.:
- ZV20K1812801NIR1HT
- Brand:
- Bourns
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.80
(exc. VAT)
£3.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 840 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.28 | £2.80 |
| 50 - 90 | £0.269 | £2.69 |
| 100 - 240 | £0.255 | £2.55 |
| 250 - 490 | £0.236 | £2.36 |
| 500 + | £0.215 | £2.15 |
*price indicative
- RS Stock No.:
- 204-8783
- Mfr. Part No.:
- ZV20K1812801NIR1HT
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Varistor Voltage | 33 V | |
| Product Type | Varistor | |
| Clamping Voltage VC | 54V | |
| Packaging | Tape & Reel | |
| Clamping Current | 5A | |
| Mount Type | Surface | |
| Series | ZVHT | |
| Maximum AC Voltage | 20V ac | |
| Maximum Surge Current | 800A | |
| Maximum DC Voltage | 26V dc | |
| Capacitance | 3nF | |
| Minimum Operating Temperature | -55°C | |
| Length | 4.7mm | |
| Maximum Operating Temperature | 150°C | |
| Depth | 3.2mm | |
| Termination Style | Surface Mount | |
| Standards/Approvals | UL, RoHS | |
| Thickness | 1.25mm | |
| Package/Case | 1812 | |
| Automotive Standard | No | |
| Energy Rating | 3J | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Varistor Voltage 33 V | ||
Product Type Varistor | ||
Clamping Voltage VC 54V | ||
Packaging Tape & Reel | ||
Clamping Current 5A | ||
Mount Type Surface | ||
Series ZVHT | ||
Maximum AC Voltage 20V ac | ||
Maximum Surge Current 800A | ||
Maximum DC Voltage 26V dc | ||
Capacitance 3nF | ||
Minimum Operating Temperature -55°C | ||
Length 4.7mm | ||
Maximum Operating Temperature 150°C | ||
Depth 3.2mm | ||
Termination Style Surface Mount | ||
Standards/Approvals UL, RoHS | ||
Thickness 1.25mm | ||
Package/Case 1812 | ||
Automotive Standard No | ||
Energy Rating 3J | ||
- COO (Country of Origin):
- SI
The Bourns ZVHT series low voltage multi-layered varistor with 3000pF capacitance is designed to protect sensitive electronic devices against high voltage surges in the low voltage region.
Broad range of current and energy handling capabilities
Short response time
Low sensitivity
RoHS compliant
