TDK, Standard Metal Oxide Varistor 210 pF 10 A, Clamping 395 V, Varistor 240 V

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 5 units)*

£2.48

(exc. VAT)

£2.975

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TDK
	Product Type	Metal Oxide Varistor
	Varistor Voltage	240 V
	Packaging	Bulk
	Clamping Voltage VC	395V
	Clamping Current	10A
	Series	Standard
	Maximum AC Voltage	150V ac
	Diameter	9mm
	Maximum DC Voltage	200V dc
	Maximum Surge Current	1200A
	Capacitance	210pF
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Thickness	3.8mm
	Standards/Approvals	UL, CQC, CSA, IEC, VDE
	Lead Pitch	5mm
	Automotive Standard	No
	Energy Rating	11J

	Select all
	Brand TDK
	Product Type Metal Oxide Varistor
	Varistor Voltage 240 V
	Packaging Bulk
	Clamping Voltage VC 395V
	Clamping Current 10A
	Series Standard
	Maximum AC Voltage 150V ac
	Diameter 9mm
	Maximum DC Voltage 200V dc
	Maximum Surge Current 1200A
	Capacitance 210pF
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Thickness 3.8mm
	Standards/Approvals UL, CQC, CSA, IEC, VDE
	Lead Pitch 5mm
	Automotive Standard No
	Energy Rating 11J

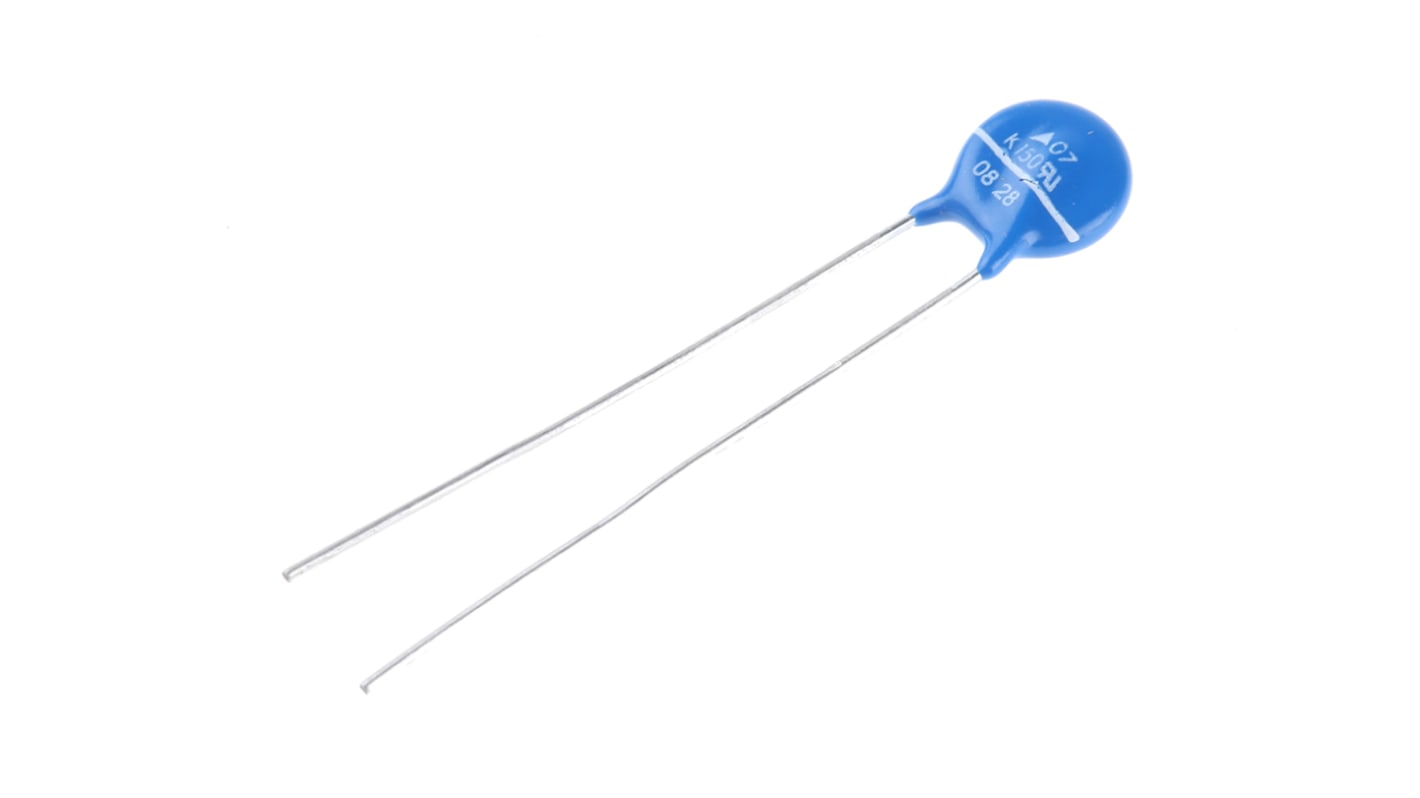

Standard radial epoxy-coated MOV with tinned-copper leads.

Tinned copper wire leads with a ceramic body coated with epoxy resin

Rated for surge current (8//20 μs) and for energy (2ms)

UL, CSA, VDE
