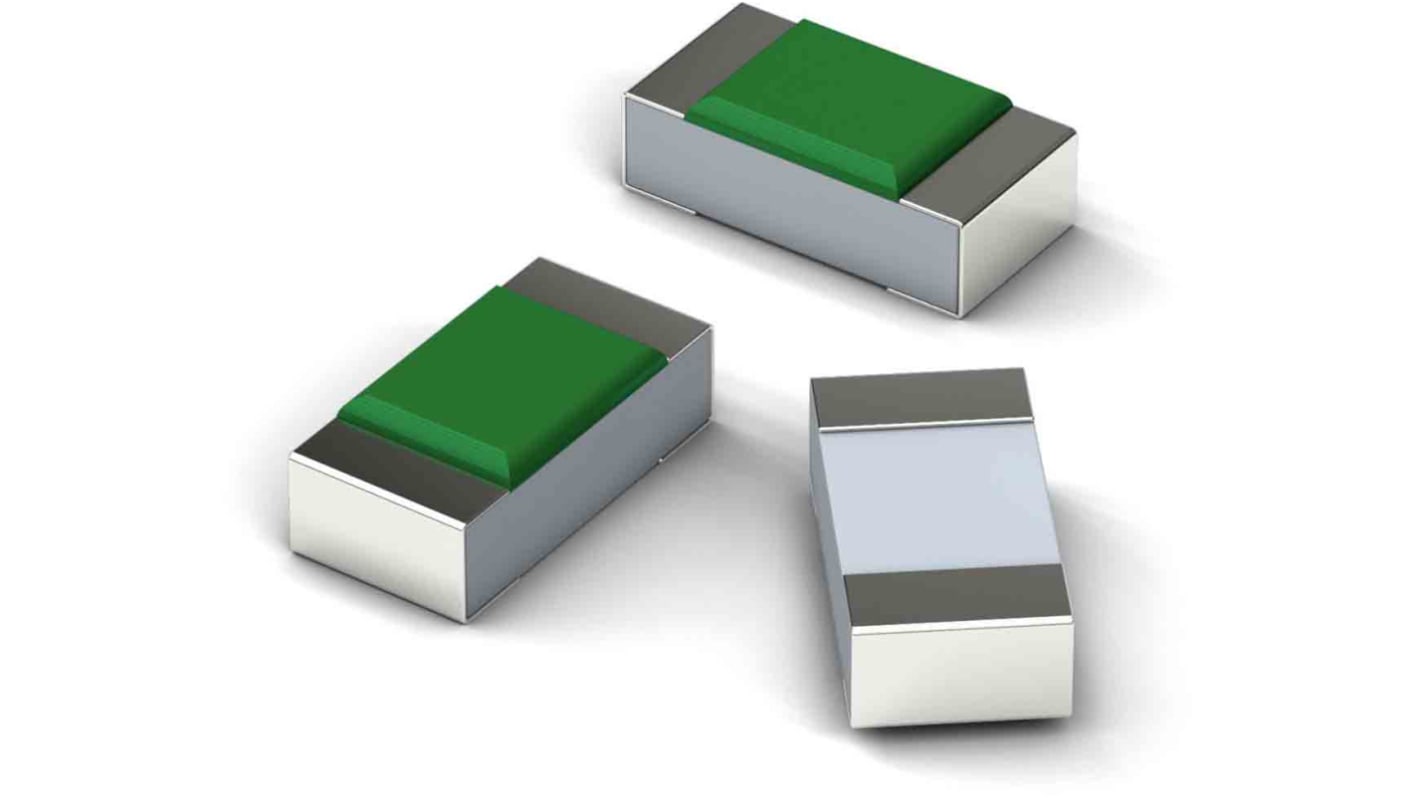

Wurth Elektronik, WE-VE femtoF Surface Mount Varistors 0.05pF 16A, Clamping 50V, 0402
- RS Stock No.:
- 196-7914
- Mfr. Part No.:
- 8231726A
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 10000 units)*
£1,760.00
(exc. VAT)
£2,110.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.176 | £1,760.00 |
*price indicative
- RS Stock No.:
- 196-7914
- Mfr. Part No.:
- 8231726A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Maximum AC Voltage Rating | 18.5V | |
| Maximum DC Voltage Rating | 26V | |
| Clamping Voltage | 50V | |
| Clamping Current | 16A | |
| Material | Ceramic | |
| Series | WE-VE femtoF | |
| Capacitance | 0.05pF | |
| Length | 1mm | |
| Thickness | 0.6mm | |
| Package/Case | 0402 | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Maximum AC Voltage Rating 18.5V | ||
Maximum DC Voltage Rating 26V | ||
Clamping Voltage 50V | ||
Clamping Current 16A | ||
Material Ceramic | ||
Series WE-VE femtoF | ||
Capacitance 0.05pF | ||
Length 1mm | ||
Thickness 0.6mm | ||
Package/Case 0402 | ||
- COO (Country of Origin):
- TW
The Wurth Elektronik's Varistors WE-VE femtoF series has Lowest Capacitance
fast response time and Low leakage current.
fast response time and Low leakage current.
Almost no energy consumption in stand-by mode
Excellent absorption for ESD-impulses
Operating temperature: –40 ºC to +85 ºc
Excellent absorption for ESD-impulses
Operating temperature: –40 ºC to +85 ºc
