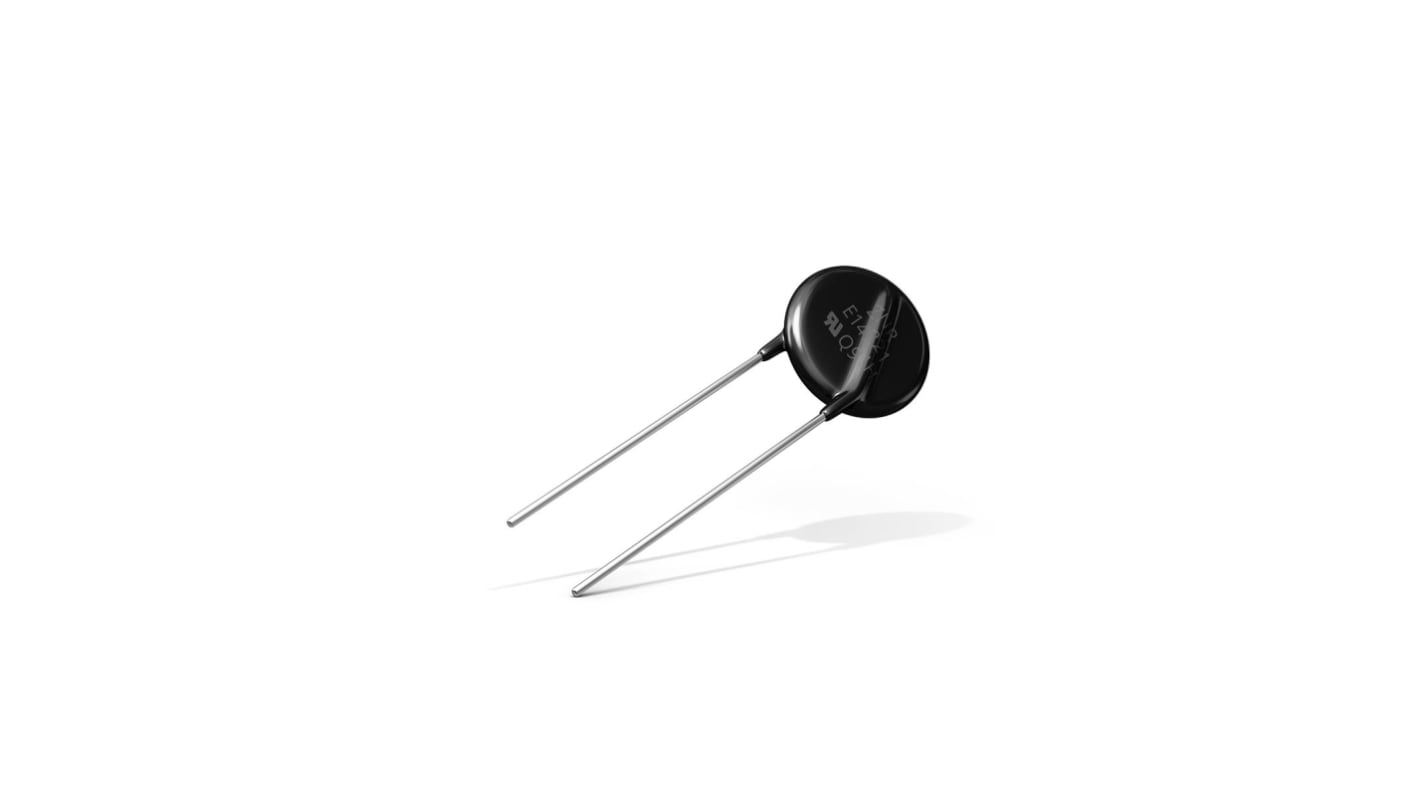

Panasonic, E-S1 Surge Absorber 600 pF 100 A, Clamping 1.12 kV, Varistor 680 V
- RS Stock No.:
- 187-8341
- Mfr. Part No.:
- ERZE14A681S1
- Brand:
- Panasonic
Subtotal (1 pack of 10 units)*
£6.49
(exc. VAT)
£7.79
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 180 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.649 | £6.49 |
*price indicative
- RS Stock No.:
- 187-8341
- Mfr. Part No.:
- ERZE14A681S1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Surge Absorber | |
| Varistor Voltage | 680 V | |
| Clamping Voltage VC | 1.12kV | |
| Packaging | Bulk | |
| Clamping Current | 100A | |
| Series | E-S1 | |
| Diameter | 17.5mm | |
| Maximum AC Voltage | 420V ac | |
| Maximum Surge Current | 7.5kA | |
| Maximum DC Voltage | 560V dc | |
| Capacitance | 600pF | |
| Length | 24.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CQC, UL 1449, VDE | |
| Thickness | 7.8mm | |
| Lead Pitch | 10mm | |
| Energy Rating | 382J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Surge Absorber | ||
Varistor Voltage 680 V | ||
Clamping Voltage VC 1.12kV | ||
Packaging Bulk | ||
Clamping Current 100A | ||
Series E-S1 | ||
Diameter 17.5mm | ||
Maximum AC Voltage 420V ac | ||
Maximum Surge Current 7.5kA | ||
Maximum DC Voltage 560V dc | ||
Capacitance 600pF | ||
Length 24.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CQC, UL 1449, VDE | ||
Thickness 7.8mm | ||
Lead Pitch 10mm | ||
Energy Rating 382J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- ID
“ZNR” Transient/Surge Absorber, Series E-S1, improves E series products with high capability for absorbing transient overvoltage in a Compact size, suitable for surge protection at high temperature.
Large withstanding surge current capability in Compact sizes
Withstanding surge current at max. 125 °C
Large “Energy Handling Capability” absorbing transient overvoltages in Compact sizes
Wide range of varistor voltages
Transistor, diode, IC, thyristor or triac semiconductor protection
Surge protection in consumer electronic equipment
Surge protection in communication, measuring or controller electronics
Surge protection in electronic home appliances, gas or petroleum appliances
