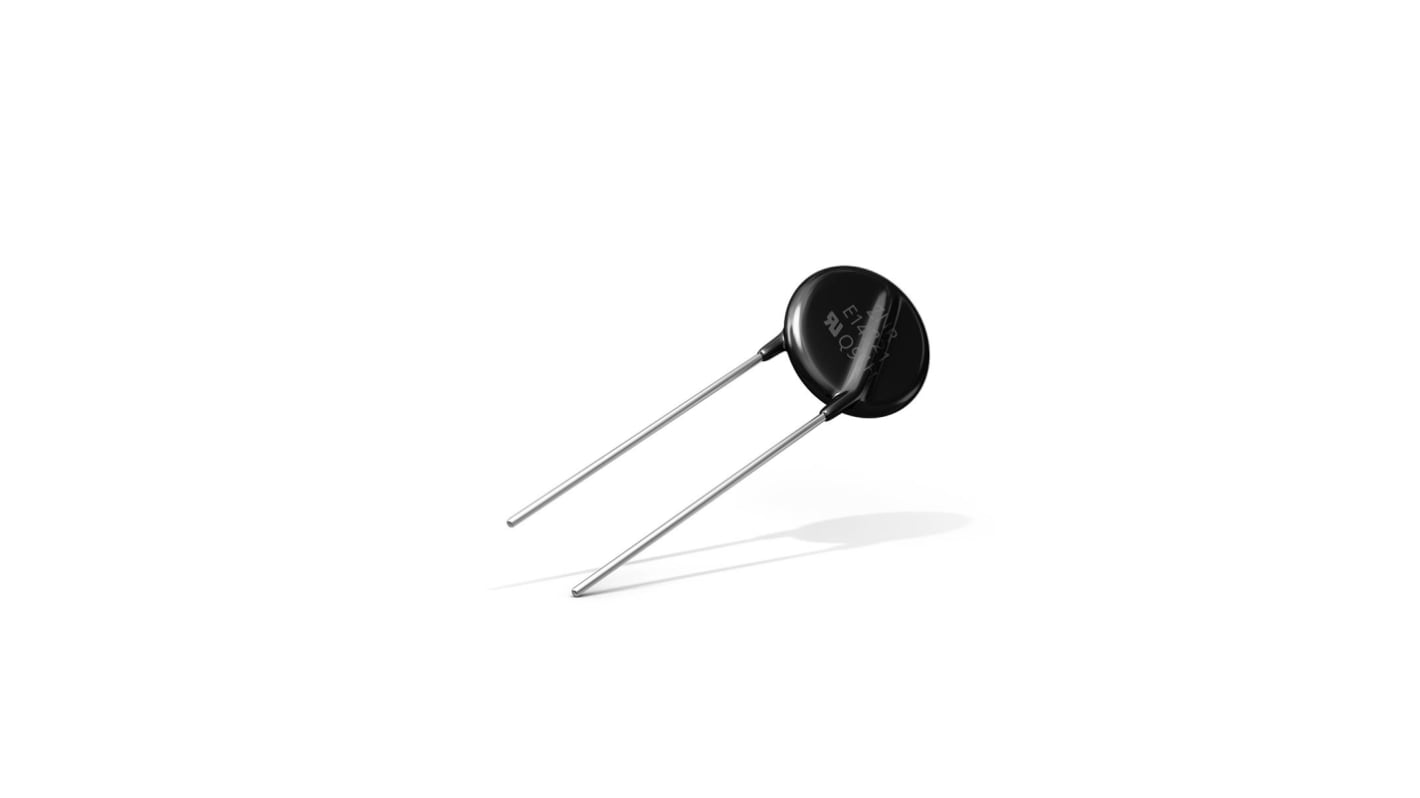

Panasonic, E-S1 Surge Absorber 400 pF 100 A, Clamping 1815 V, Varistor 910 V
- RS Stock No.:
- 187-8130
- Mfr. Part No.:
- ERZE14A911S1
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 187-8130
- Mfr. Part No.:
- ERZE14A911S1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Varistor Voltage | 910 V | |
| Product Type | Surge Absorber | |
| Clamping Voltage VC | 1815V | |
| Packaging | Bulk | |
| Clamping Current | 100A | |
| Series | E-S1 | |
| Diameter | 17.5mm | |
| Maximum AC Voltage | 680V ac | |
| Maximum Surge Current | 7.5kA | |
| Maximum DC Voltage | 170V dc | |
| Capacitance | 400pF | |
| Length | 24.5mm | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | GB4943.1, IEC62368-1 G8.2, IEC60950-1 Annex.Q, VDE IEC61051-1, GB8898, UL, T10193, -2, C-UL, VZCA8, UL1449 VZCA2, -2-2, T10194, GB, CQCGB | |
| Depth | 9mm | |
| Termination Style | Straight Lead | |
| Thickness | 9mm | |
| Lead Pitch | 10mm | |
| Energy Rating | 620J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Varistor Voltage 910 V | ||
Product Type Surge Absorber | ||
Clamping Voltage VC 1815V | ||
Packaging Bulk | ||
Clamping Current 100A | ||
Series E-S1 | ||
Diameter 17.5mm | ||
Maximum AC Voltage 680V ac | ||
Maximum Surge Current 7.5kA | ||
Maximum DC Voltage 170V dc | ||
Capacitance 400pF | ||
Length 24.5mm | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals GB4943.1, IEC62368-1 G8.2, IEC60950-1 Annex.Q, VDE IEC61051-1, GB8898, UL, T10193, -2, C-UL, VZCA8, UL1449 VZCA2, -2-2, T10194, GB, CQCGB | ||
Depth 9mm | ||
Termination Style Straight Lead | ||
Thickness 9mm | ||
Lead Pitch 10mm | ||
Energy Rating 620J | ||
Automotive Standard No | ||
- COO (Country of Origin):
- ID
“ZNR” Transient/Surge Absorber, Series E-S1, improves E series products with high capability for absorbing transient overvoltage in a Compact size, suitable for surge protection at high temperature.
Large withstanding surge current capability in Compact sizes
Withstanding surge current at max. 125 °C
Large “Energy Handling Capability” absorbing transient overvoltages in Compact sizes
Wide range of varistor voltages
Transistor, diode, IC, thyristor or triac semiconductor protection
Surge protection in consumer electronic equipment
Surge protection in communication, measuring or controller electronics
Surge protection in electronic home appliances, gas or petroleum appliances
