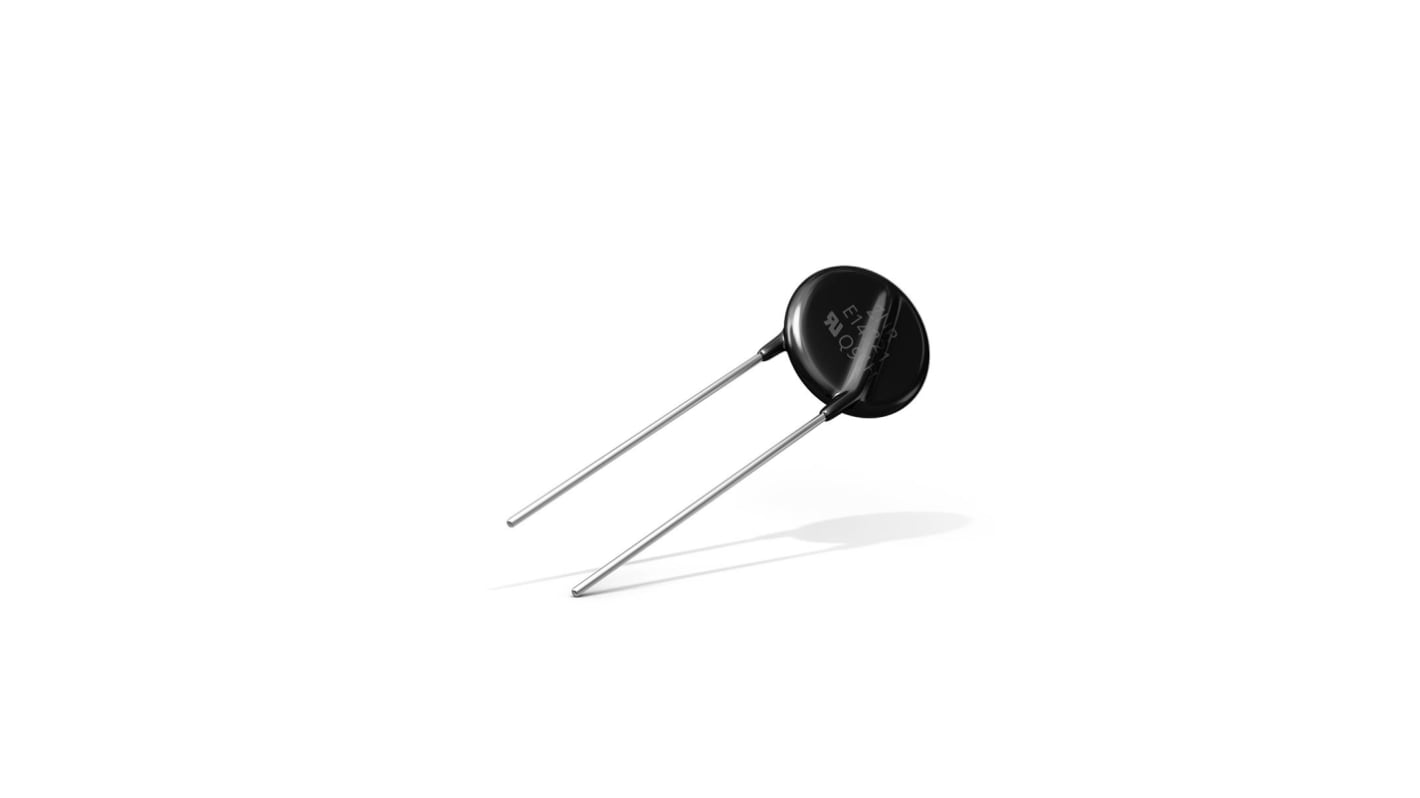

Panasonic, E-S1 Surge Absorber 650 pF 100 A, Varistor 620 V, Disc
- RS Stock No.:
- 187-8125
- Mfr. Part No.:
- ERZE14A621S1
- Brand:
- Panasonic
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 187-8125
- Mfr. Part No.:
- ERZE14A621S1
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Surge Absorber | |
| Varistor Voltage | 620 V | |
| Packaging | Bulk | |
| Clamping Current | 100A | |
| Mount Type | Through Hole | |
| Series | E-S1 | |
| Diameter | 17.5 mm | |
| Maximum Surge Current | 7500A | |
| Capacitance | 650pF | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Length | 24.5mm | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Straight Lead | |
| Standards/Approvals | VDE (IEC61051-1, RoHS, VDE (IEC60950-1 Annex.Q,IEC62368-1 G8.2), -2-2), CQC (GB/T10193,GB/T10194,GB4943.1,GB8898), -2, UL1449 (VZCA2/UL,VZCA8/C-UL) | |
| Thickness | 7.5mm | |
| Depth | 7.5mm | |
| Package/Case | Disc | |
| Lead Pitch | 10mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Surge Absorber | ||
Varistor Voltage 620 V | ||
Packaging Bulk | ||
Clamping Current 100A | ||
Mount Type Through Hole | ||
Series E-S1 | ||
Diameter 17.5 mm | ||
Maximum Surge Current 7500A | ||
Capacitance 650pF | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Length 24.5mm | ||
Maximum Operating Temperature 125°C | ||
Termination Style Straight Lead | ||
Standards/Approvals VDE (IEC61051-1, RoHS, VDE (IEC60950-1 Annex.Q,IEC62368-1 G8.2), -2-2), CQC (GB/T10193,GB/T10194,GB4943.1,GB8898), -2, UL1449 (VZCA2/UL,VZCA8/C-UL) | ||
Thickness 7.5mm | ||
Depth 7.5mm | ||
Package/Case Disc | ||
Lead Pitch 10mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- ID
“ZNR” Transient/Surge Absorber, Series E-S1, improves E series products with high capability for absorbing transient overvoltage in a Compact size, suitable for surge protection at high temperature.
Large withstanding surge current capability in Compact sizes
Withstanding surge current at max. 125 °C
Large “Energy Handling Capability” absorbing transient overvoltages in Compact sizes
Wide range of varistor voltages
Transistor, diode, IC, thyristor or triac semiconductor protection
Surge protection in consumer electronic equipment
Surge protection in communication, measuring or controller electronics
Surge protection in electronic home appliances, gas or petroleum appliances
