EPCOS, Standard Metal Oxide Varistor 980 pF 1 A, Clamping 65 V, Varistor 33 V
- RS Stock No.:
- 170-2876
- Mfr. Part No.:
- B72205S0200K101
- Brand:
- EPCOS
Subtotal (1 reel of 1000 units)*
£101.00
(exc. VAT)
£121.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £0.101 | £101.00 |
*price indicative
- RS Stock No.:
- 170-2876
- Mfr. Part No.:
- B72205S0200K101
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 33 V | |
| Clamping Voltage VC | 65V | |
| Packaging | Bulk | |
| Clamping Current | 1A | |
| Series | Standard | |
| Diameter | 7mm | |
| Maximum AC Voltage | 20V ac | |
| Maximum DC Voltage | 26V dc | |
| Maximum Surge Current | 100A | |
| Capacitance | 980pF | |
| Length | 8.5mm | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Thickness | 3.5mm | |
| Termination Style | Solder | |
| Standards/Approvals | VDE, UL, CSA, IEC, CQC | |
| Lead Pitch | 5mm | |
| Automotive Standard | No | |
| Energy Rating | 0.6J | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 33 V | ||
Clamping Voltage VC 65V | ||
Packaging Bulk | ||
Clamping Current 1A | ||
Series Standard | ||
Diameter 7mm | ||
Maximum AC Voltage 20V ac | ||
Maximum DC Voltage 26V dc | ||
Maximum Surge Current 100A | ||
Capacitance 980pF | ||
Length 8.5mm | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Thickness 3.5mm | ||
Termination Style Solder | ||
Standards/Approvals VDE, UL, CSA, IEC, CQC | ||
Lead Pitch 5mm | ||
Automotive Standard No | ||
Energy Rating 0.6J | ||

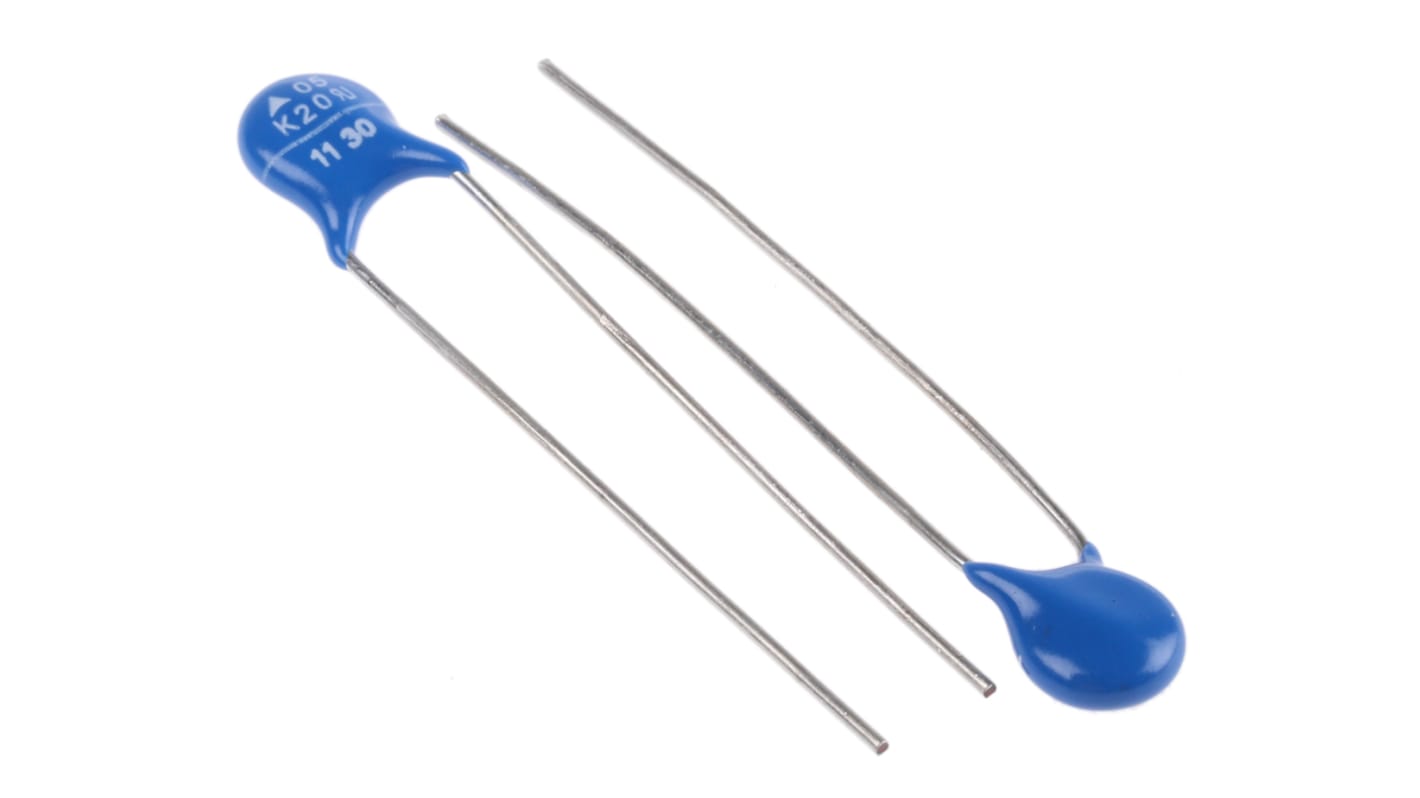

Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
Approvals
UL, CSA, VDE
