- RS Stock No.:
- 138-6043
- Mfr. Part No.:
- B72210S0621K
- Brand:
- EPCOS
1000 In stock - FREE next working day delivery available
Price Each (In a Box of 250)
£0.407
(exc. VAT)
£0.488
(inc. VAT)
Units | Per unit | Per Box* |
250 + | £0.407 | £101.75 |
*price indicative |
- RS Stock No.:
- 138-6043
- Mfr. Part No.:
- B72210S0621K
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details

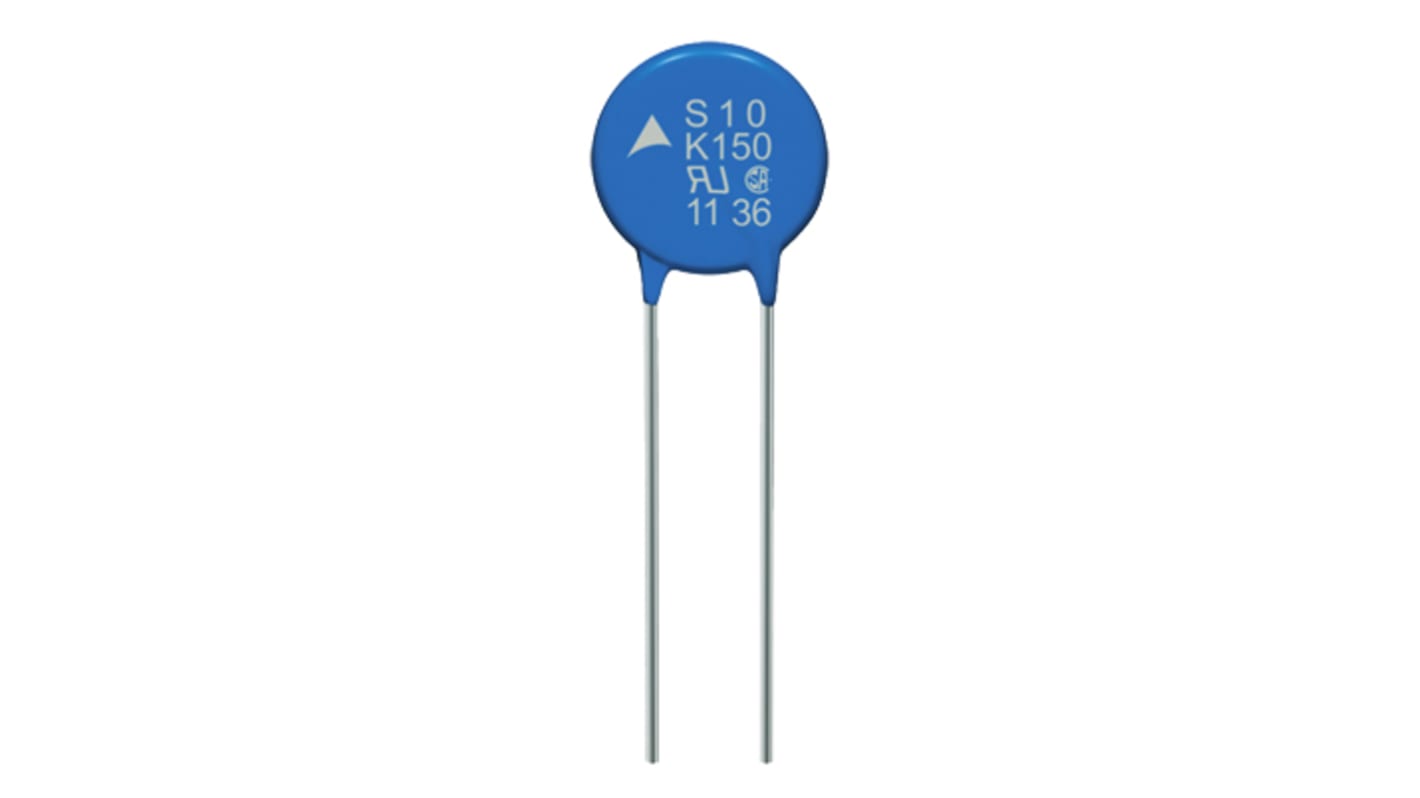

Leaded varistors are varistor elements with lead wires as terminals. The coating of the varistors is made of flame-retardant material.
Wide operating voltage range 11 … 1100 VRMS
High surge current ratings up to 8 kA
No derating up to 105 °C ambient temperature
For S14/ S20 types duty cycle @ 6 kV/ 3 kA = >10 pulses, according to IEC 60950-1,
Annex Q, IEC 61051-2
PSpice models
High surge current ratings up to 8 kA
No derating up to 105 °C ambient temperature
For S14/ S20 types duty cycle @ 6 kV/ 3 kA = >10 pulses, according to IEC 60950-1,
Annex Q, IEC 61051-2
PSpice models
Specifications
Attribute | Value |
---|---|
Varistor Voltage | 1000V |
Maximum AC Voltage Rating | 625V |
Maximum DC Voltage Rating | 825V |
Clamping Voltage | 1650V |
Clamping Current | 25A |
Material | Metal |
Energy | 68J |
Series | Standard |
Maximum Surge Current | 2500A |
Capacitance | 110pF |
Length | 12mm |
Depth | 15mm |
Thickness | 7.5mm |
Dimensions | 12 x 7.5 x 15mm |
Lead Pitch | 4 mm, 7.5mm |
