Epcos, SuperioR-MP Metal Oxide Varistor 1.15nF 100A, Clamping 710V, Varistor 430V
- RS Stock No.:
- 134-5702
- Mfr. Part No.:
- B72220P3271K101
- Brand:
- EPCOS

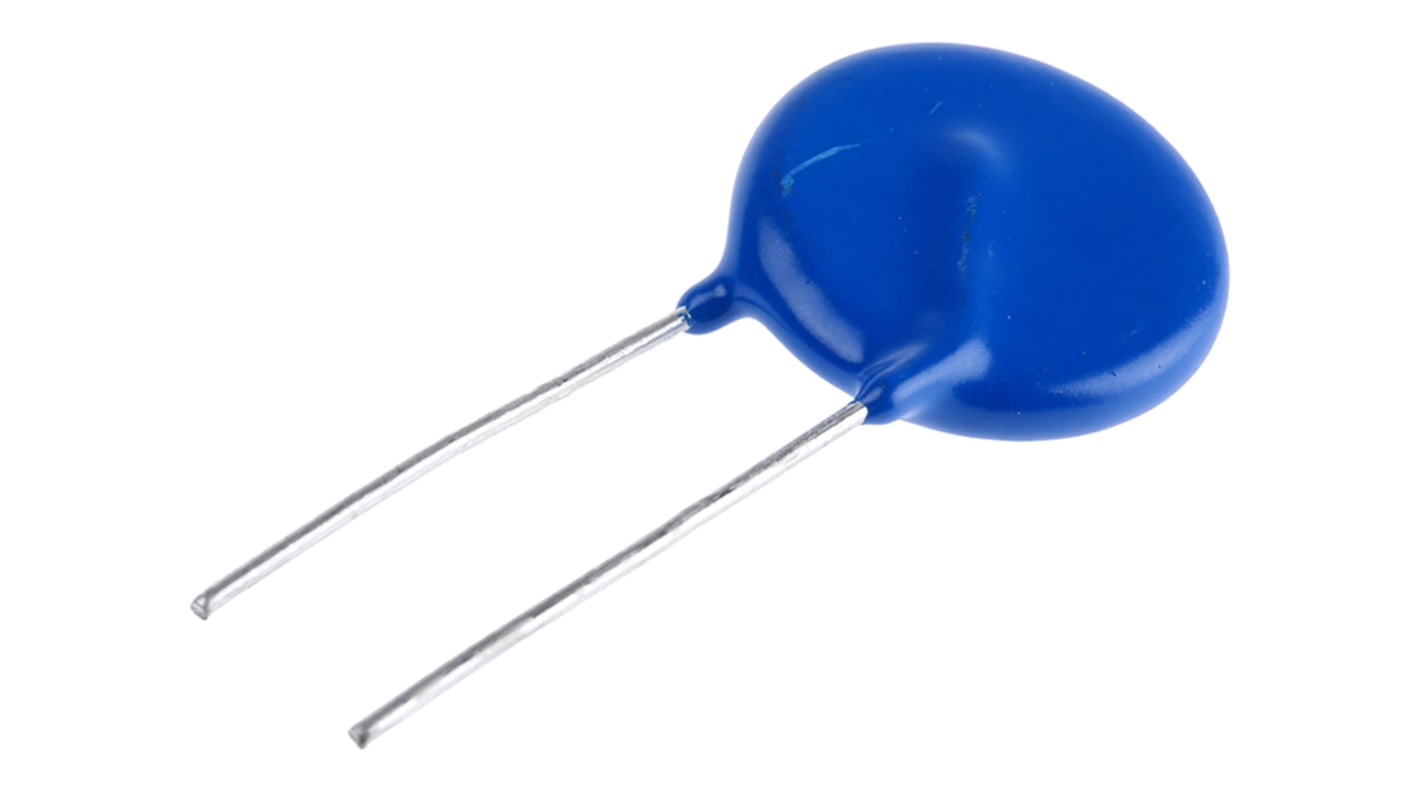

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-5702
- Mfr. Part No.:
- B72220P3271K101
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Varistor Voltage | 430V | |
| Maximum AC Voltage Rating | 275V | |
| Maximum DC Voltage Rating | 350V | |
| Clamping Voltage | 710V | |
| Clamping Current | 100A | |
| Energy | 280J | |
| Material | Metal | |
| Series | SuperioR-MP | |
| Diameter | 22.5mm | |
| Maximum Surge Current | 12000A | |
| Capacitance | 1.15nF | |
| Thickness | 6.5mm | |
| Dimensions | 22.5 (Dia.) x 6.5mm | |
| Lead Pitch | 10mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Varistor Voltage 430V | ||
Maximum AC Voltage Rating 275V | ||
Maximum DC Voltage Rating 350V | ||
Clamping Voltage 710V | ||
Clamping Current 100A | ||
Energy 280J | ||
Material Metal | ||
Series SuperioR-MP | ||
Diameter 22.5mm | ||
Maximum Surge Current 12000A | ||
Capacitance 1.15nF | ||
Thickness 6.5mm | ||
Dimensions 22.5 (Dia.) x 6.5mm | ||
Lead Pitch 10mm | ||
Metal Oxide Varistors SuperioR-MP Series
Over voltage protection
Wide operating voltage range up to 680 VRMS
Ideally suited for AC applications where low level repetitive surges are expected
Wide operating voltage range up to 680 VRMS
Ideally suited for AC applications where low level repetitive surges are expected
Standards
Designed to meet the surge requirements of IEC 60950-1 Annex Q and IEC 60065 § 14.12
Approvals
UL approval to UL1449 (file number E321126), for use in Type 3 SPD's
