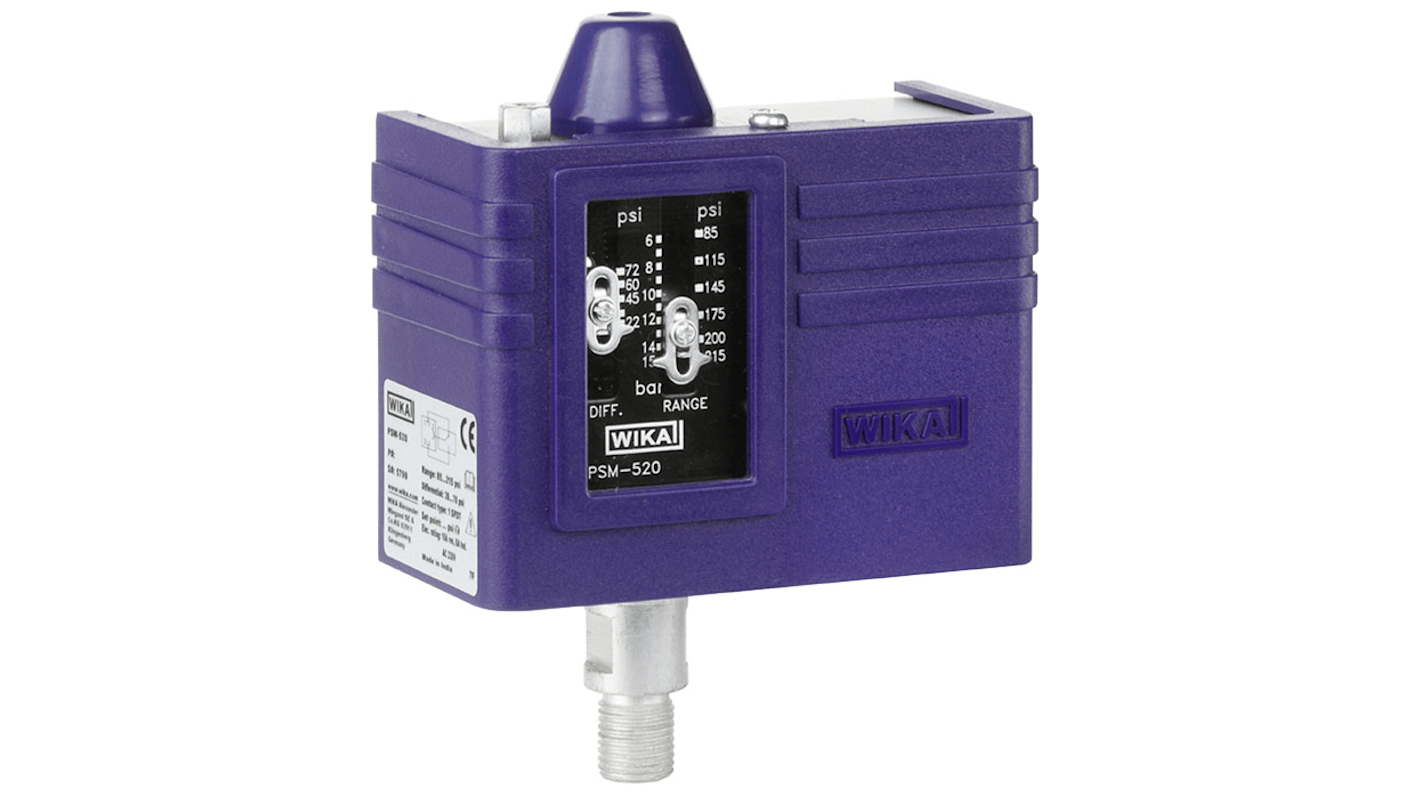

WIKA Pressure Switch -0.4 bar to 5 bar

View all Vacuum Switches

Subtotal (1 unit)*

£61.54

(exc. VAT)

£73.85

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£61.54

*price indicative

RS Stock No.:
219-7693
Mfr. Part No.:
14269047
Brand:
WIKA
Find similar products by selecting one or more attributes.
Select all

Brand

WIKA

Product Type

Pressure Switch

Port Size

1/4 in G

Minimum Operating Pressure

-0.4bar

Current

10A

Suitable Medias

Water, Non-Corrosive Fluid

Pressure Type

Adjustable

Mount Type

Panel, Direct

Voltage

230V

Series

PSM-520

Maximum Operating Pressure

5 bar

Port Gender

Female

Connection Thread Standard

ISO 228-1

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Height

122mm

Standards/Approvals

EAC (option), EN 10277-3, EU, DIN EN 60947-1, RoHS, EN 1652

Hazardous Area Certification

NO

IP Rating

IP30

RoHS Status: Exempt

COO (Country of Origin):
IN
The WIKA model PSM-520 is used in industrial control, monitoring and alarm applications. The switch point can be specified by the customer on site. The instrument can switch electrical loads of up to AC 230 V, 50/60 Hz, 10 A. The model PSM-520 pressure switch offers many application possibilities with non-corrosive media like oil, water and air.

Adjustable on site

Protection cap for switch point setting

Setting ranges:
