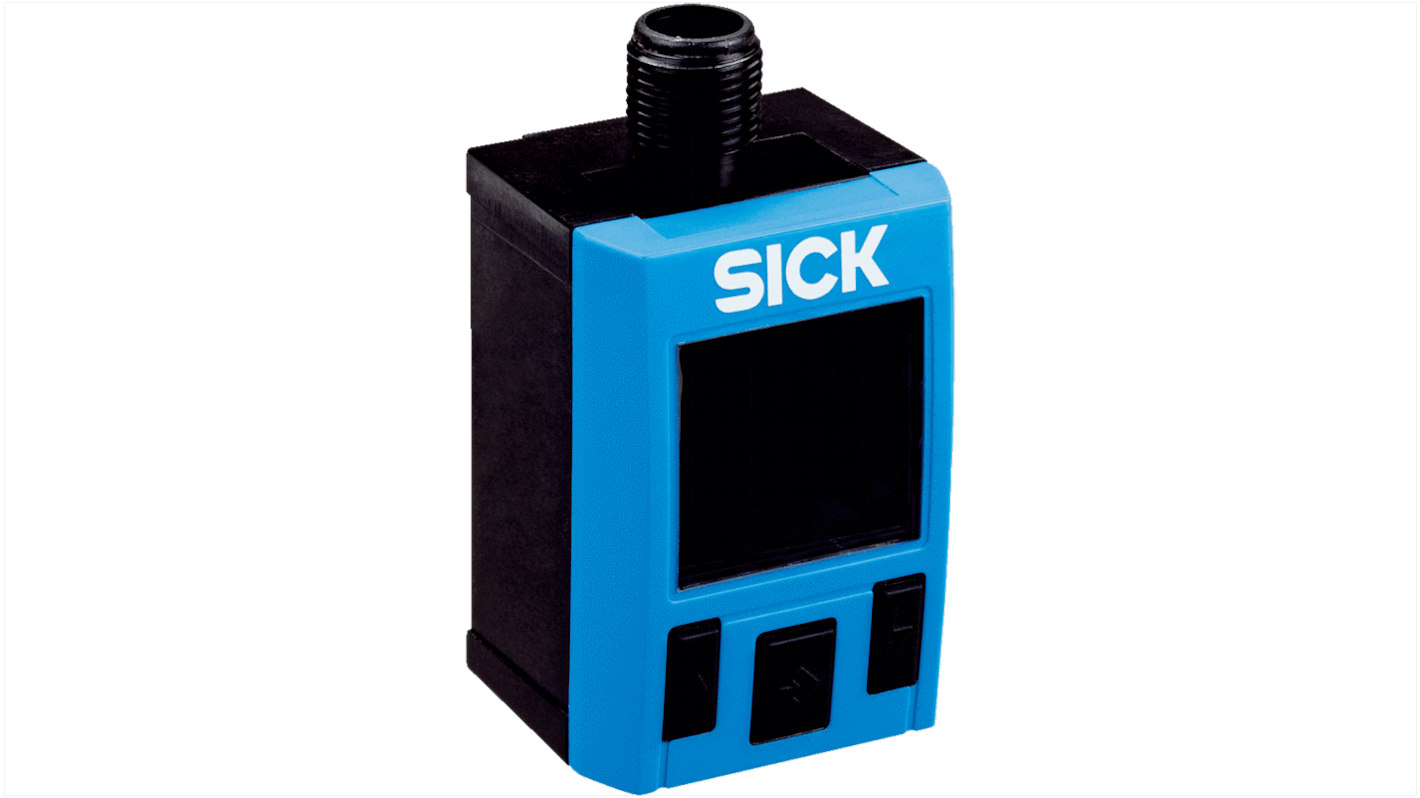

SICK Pressure Switch -1 bar to 1 bar

RS Stock No.:: 213-3308
Mfr. Part No.:: PAC50-BCB / 1062965
Brand:: SICK

Subtotal (1 unit)*

£146.19

(exc. VAT)

£175.43

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 08 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£146.19

*price indicative

RS Stock No.:: 213-3308
Mfr. Part No.:: PAC50-BCB / 1062965
Brand:: SICK

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Pressure Switch
	Port Size	4 mm
	Minimum Operating Pressure	-1bar
	Switch Output	0 to 10 V, NPN, PNP, Push Pull + 4 mA to 20 mA
	Current	40mA
	Suitable Medias	Air, Gas
	Pressure Type	Gauge Pressure
	Mount Type	DIN Rail
	Voltage	30V dc
	Analogue Output	4-20 mA, 0-10V
	Series	PAC50-BCB
	Maximum Operating Pressure	1 bar
	Port Gender	Female
	Connection Thread Standard	DIN ISO 16030
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	60°C
	Height	63mm
	Depth	35mm
	Width	35mm
	Standards/Approvals	IEC 60529, EN 61326-2-3, IEC 61298-2
	IP Rating	IP65, IP67
	Hazardous Area Certification	NO
	LED Indicator	Yes

	Select all
	Brand SICK
	Product Type Pressure Switch
	Port Size 4 mm
	Minimum Operating Pressure -1bar
	Switch Output 0 to 10 V, NPN, PNP, Push Pull + 4 mA to 20 mA
	Current 40mA
	Suitable Medias Air, Gas
	Pressure Type Gauge Pressure
	Mount Type DIN Rail
	Voltage 30V dc
	Analogue Output 4-20 mA, 0-10V
	Series PAC50-BCB
	Maximum Operating Pressure 1 bar
	Port Gender Female
	Connection Thread Standard DIN ISO 16030
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 60°C
	Height 63mm
	Depth 35mm
	Width 35mm
	Standards/Approvals IEC 60529, EN 61326-2-3, IEC 61298-2
	IP Rating IP65, IP67
	Hazardous Area Certification NO
	LED Indicator Yes

Datasheet - PAC50-BCB

COO (Country of Origin):: TH

Overview

At a glance

Large display shows system pressure, output states, and switching points

Three large function keys, intuitive menu navigation

Measuring range for gauge pressure (vacuum and overpressure)

Two independently programmable switching outputs, optional analog output

Installation on mounting rail, wall or switch panel

Variant for leakage monitoring

IO-Link

Your Benefit

Bi-color display (green/red) clearly shows the status of the output signal (within or outside the target range)

Quick overview of important system parameters due to advanced display functions

Intuitive operation allows simple and quick commissioning

Pressure connections on the back and bottom and configurable output signals for a high level of installation flexibility

High reliability thanks to the rugged design (IP65 and IP67 enclosure rating) and proven technology

Less variants for different requirements and lower inventory costs

Convenient, cost-effective solution for leakage measurement

Measurement of pneumatic pressure of a food slicer

Monitoring and definition of the pressure in the vacuum gripper

For improved monitoring of air pressure, the PAC50 electronic pressure switch from SICK offers more at a glance – the large bi-color display allows you to identify from a distance if the pressure falls within the target range. Three large function keys and intuitive menu navigation make operating the PAC50 easy.

What makes the PAC50 so special? It offers up to two digital switching outputs and an optional analog output in just one device. The output signals can be easily adjusted to the available control system. Thanks to the optional IO-Link, the controller or PLC can quickly and accurately pass the device parameters to the sensor when changing the format or replacing the sensor, which significantly reduces downtime. The PAC50 is ideal for use in industrial environments due to its waterproof housing with an IP 65/IP 67 enclosure rating.

Applications

Compressed-air monitoring and measurement in machines and systems

Pressure measurement in air and in dry, non-corrosive gases

Pressure measurement on compressed-air maintenance units

Vacuum monitoring in handling and robotics applications

Leakage monitoring in closed compressed air systems

Compressed-air monitoring for the robot gripper

Measurement of pneumatic pressure on a meat slicer

Perfect deep drawing of product trays

Monitoring of the pneumatic pressure

Integrated measurement of pressure and flow in the service unit

Fixing the wooden strip

Pressure monitoring on vacuum gripper

Monitoring the vacuum at the suction table

Pressure monitoring in the spraying unit

Pressure monitoring in the vacuum removal gripper

Monitoring of the vacuum pressure using the PAC50

Improved energy management in compressed air systems

Pressure monitoring in the handling device
