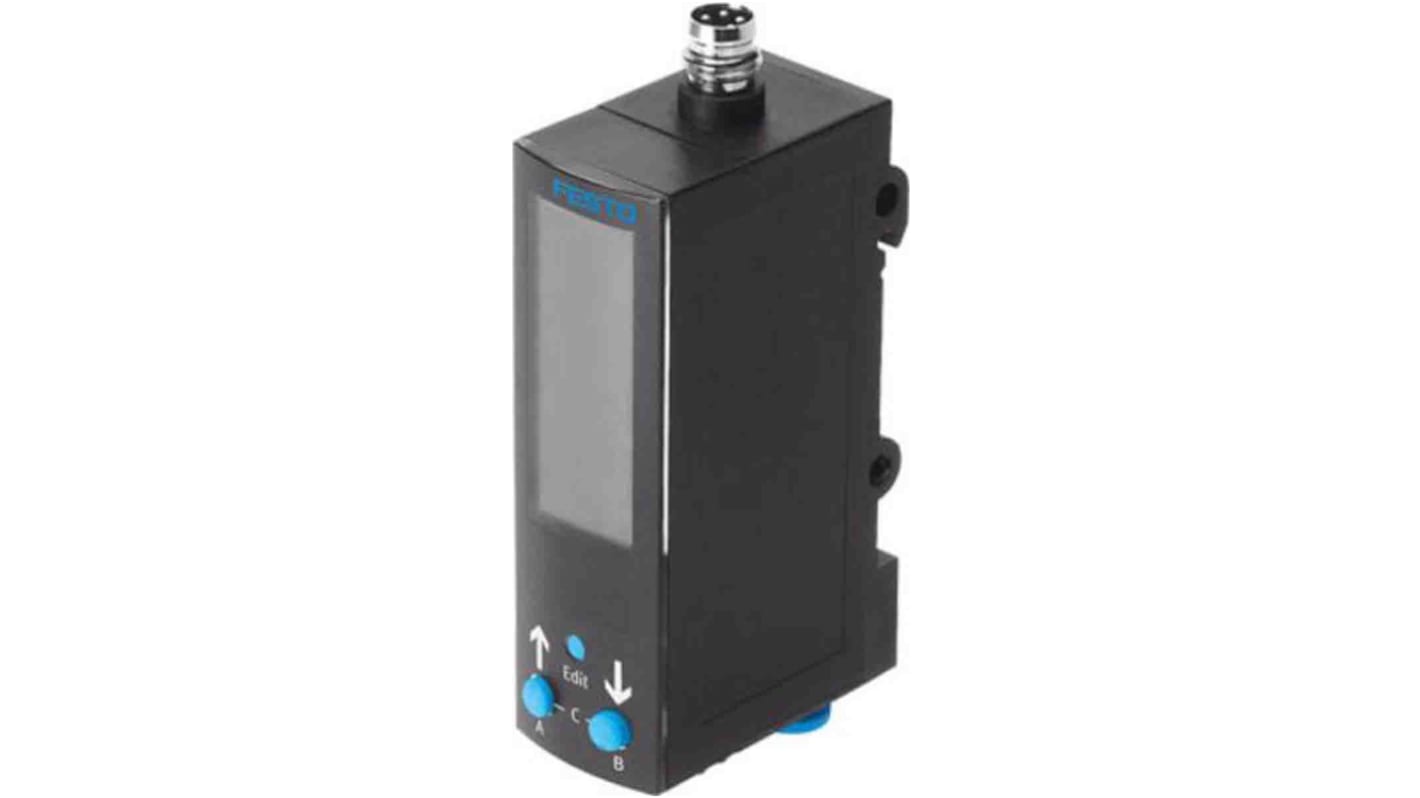

Festo Pneumatic Sensor, IP65 2 bar 15V dc, 30 V dc 50 °C
- RS Stock No.:
- 202-3288
- Mfr. Part No.:
- SDE3-D2D-B-HQ4-2P-M8
- Brand:
- Festo
Subtotal (1 unit)*
£190.95
(exc. VAT)
£229.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £190.95 |
*price indicative
- RS Stock No.:
- 202-3288
- Mfr. Part No.:
- SDE3-D2D-B-HQ4-2P-M8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Suitable Medias | Air | |
| Product Type | Pneumatic Sensor | |
| Accuracy | 2 %FS | |
| Port Type | Pneumatic | |
| Switch Output | 2 x PNP | |
| Connection Thread Standard | Push-in | |
| Minimum Operating Pressure | 0bar | |
| Pressure Type | 2 x Relative Pressure | |
| Port Size | QS-4 | |
| Voltage | 15, 30V dc | |
| Mount Type | Top Hat Rail, Through Hole | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | 50°C | |
| Maximum Operating Pressure | 2 bar | |
| Minimum Operating Temperature | 0°C | |
| Port Gender | Male | |
| Digital Display | Yes | |
| Standards/Approvals | CE, RCM c UL us | |
| Depth | 75.1mm | |
| Height | 41mm | |
| Width | 20mm | |
| Series | SDE3 | |
| Electrical Connection Type | Plug | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Suitable Medias Air | ||
Product Type Pneumatic Sensor | ||
Accuracy 2 %FS | ||
Port Type Pneumatic | ||
Switch Output 2 x PNP | ||
Connection Thread Standard Push-in | ||
Minimum Operating Pressure 0bar | ||
Pressure Type 2 x Relative Pressure | ||
Port Size QS-4 | ||
Voltage 15, 30V dc | ||
Mount Type Top Hat Rail, Through Hole | ||
IP Rating IP65 | ||
Maximum Operating Temperature 50°C | ||
Maximum Operating Pressure 2 bar | ||
Minimum Operating Temperature 0°C | ||
Port Gender Male | ||
Digital Display Yes | ||
Standards/Approvals CE, RCM c UL us | ||
Depth 75.1mm | ||
Height 41mm | ||
Width 20mm | ||
Series SDE3 | ||
Electrical Connection Type Plug | ||
The Festo pressure sensor SDE3-D2D-B-HQ4-2P-M8 With M8 plug version. Authorisation (* RCM Mark, * c UL us - Recognized (OL)), CE mark (see declaration of conformity) to EU directive for EMC.
Materials note (* Free of copper and PTFE, * Conforms to RoHS)
Measured variable 2 x relative pressure
Measurement method Piezoresistive pressure sensor with display
