Festo Pneumatic Sensor Male Relative Pressure
- RS Stock No.:
- 175-2189
- Mfr. Part No.:
- SPTW-P16R-G14-A-M12
- Brand:
- Festo
Subtotal (1 unit)*
£147.89
(exc. VAT)
£177.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £147.89 |
*price indicative
- RS Stock No.:
- 175-2189
- Mfr. Part No.:
- SPTW-P16R-G14-A-M12
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Sensor | |
| Accuracy | ± 1.0% FS | |
| Switch Output | Analogue | |
| Pressure Type | Relative Pressure | |
| Connection Gender | Male | |
| Mount Type | Screw | |
| Electrical Connection Type | G 1/4 | |
| Analogue Output | 4-20 mA | |
| Connection Thread Size | 1/4 in | |
| Minimum Set Pressure | 0bar | |
| Series | SPTW | |
| Maximum Set Pressure | 10bar | |
| Connection Thread Standard | G | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | EN | |
| Depth | 25mm | |
| Height | 40mm | |
| Width | 64.8mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Sensor | ||
Accuracy ± 1.0% FS | ||
Switch Output Analogue | ||
Pressure Type Relative Pressure | ||
Connection Gender Male | ||
Mount Type Screw | ||
Electrical Connection Type G 1/4 | ||
Analogue Output 4-20 mA | ||
Connection Thread Size 1/4 in | ||
Minimum Set Pressure 0bar | ||
Series SPTW | ||
Maximum Set Pressure 10bar | ||
Connection Thread Standard G | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals EN | ||
Depth 25mm | ||
Height 40mm | ||
Width 64.8mm | ||
RoHS Status: Exempt

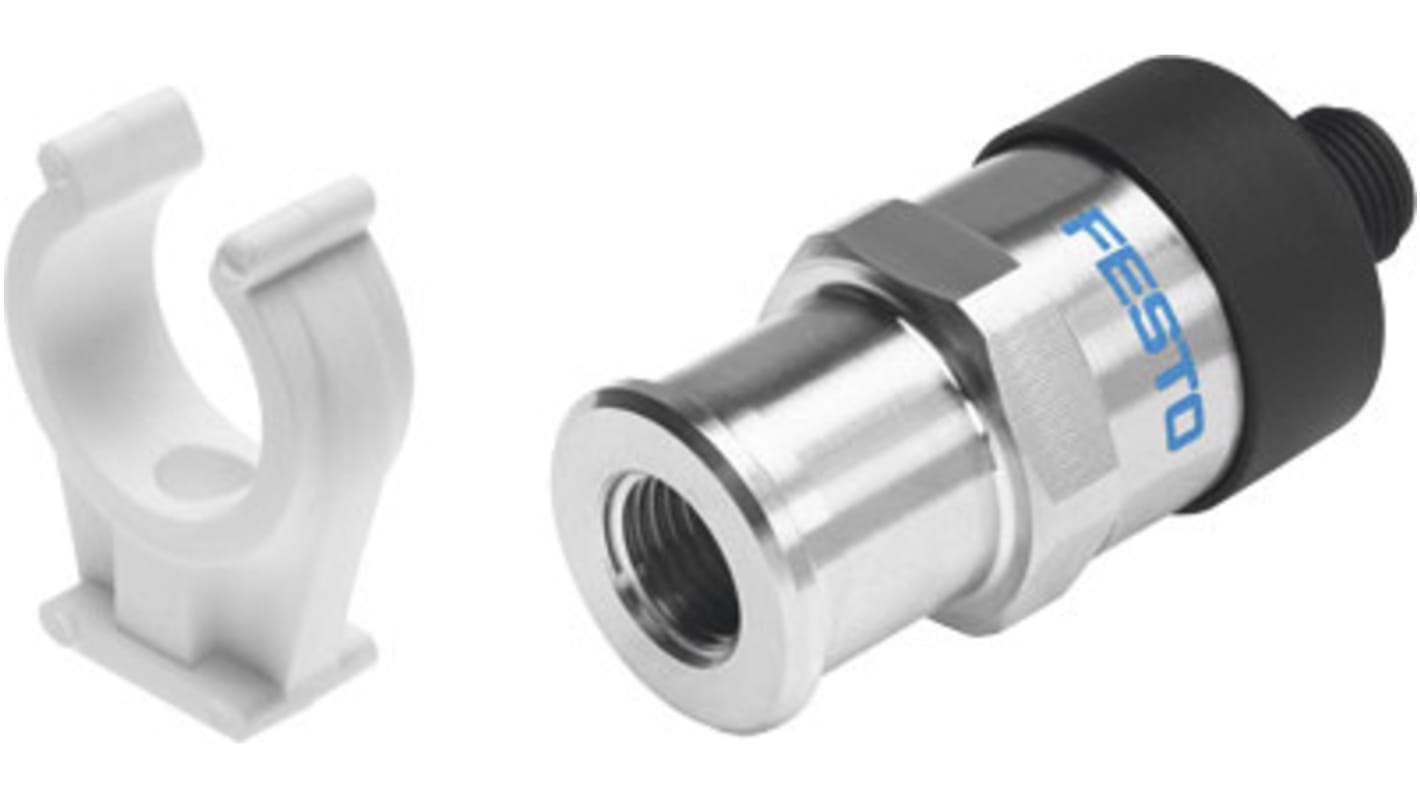

Festo Compact Pneumatic Sensor, 8 to 30V DC - SPTW-P16R-G14-A-M12
Monitor pressure levels in your manufacturing equipment by installing this pneumatic sensor from Festo. It reliably measures changes in pressure for both gases and liquids. The sensor has a broad 0 to 16 bar pressure-measuring range to deliver comprehensive results, and it can indicate an overload range of 32 bar in the event of overpressure. The low (80g) weight of the unit means it's easy to handle and install. You can use it in diverse environments thanks to its wide operating temperature range of 0°C to +80°C.
• Versatile mounting options via internal thread or with the aid of mounting accessories
• IP67 (ingress protection) rating prevents damage from dust and water contact
• PA (polyamide) connector is resistant to abrasion and lasts a long time
Applications
• Safety engineering
• Fire extinguishing equipment
• Drainage systems
• Manufacturing plants
How does this Festor pneumatic sensor measure pressure changes?
This device has an internal thin metal film that gauges the relative pressure of the substance in the system. It can be used to measure the pressure of compressed air, fluid media and gas.
