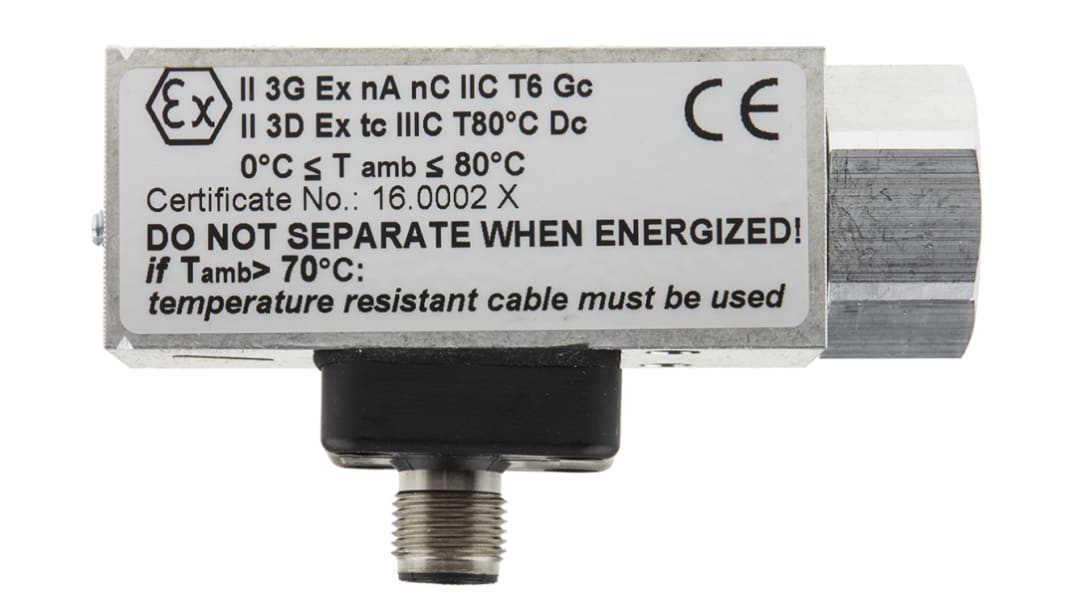

RS PRO Pressure Switch, M12 x 1 0.2bar to 2 bar

View all Vacuum Switches

Subtotal (1 unit)*

£81.00

(exc. VAT)

£97.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£81.00

*price indicative

RS Stock No.:
136-6275
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Operating Pressure

2 bar

Minimum Operating Pressure

0.2bar

Pressure Type

Electro-Mechanical

Connection

M12 x 1

Suitable Media

Gas, Liquid

Voltage Rating

30V

Connection Thread Size

M12 x 1

Connection Thread Standard

NPT

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+85°C

IP Rating

IP67

Hazardous Area Certification

ATEX

Minimum Pressure Setting

0.2bar

Pressure Setting Range

0.2 to 2bar

Maximum Pressure Setting

2bar

RoHS Status: Exempt

COO (Country of Origin):
DE

RS Pro Pneumatic Pressure Switch 18D- ATEX


The 18D series pneumatic pressure switches from RS Pro are intrinsically safe to operate and contain a microswitch with gold plated contacts.
These pressure switches are ATEX approved.

Features and Benefits


• Microswitch with gold plated contacts

• High number of switching cycles

• Vibration resistant to 15 g

• Microswitch approved by UL and CSA

• Intrinsically safe operation

• Assortment of pressure ranges

• Temperature range: 0°C to +80°C

• FKM sealing

Product Application Information


For neutral, gaseous and liquid fluids.

Approvals

UL , TUV and CSA


Pressure Switches


Pressure switches that allow microswitch operation once a pre-set pressure is reached. K and K3 Series incorporate a mechanical stop providing over-pressure protection for the spring and microswitch. Electrical connections for all models to DIN 43650.
