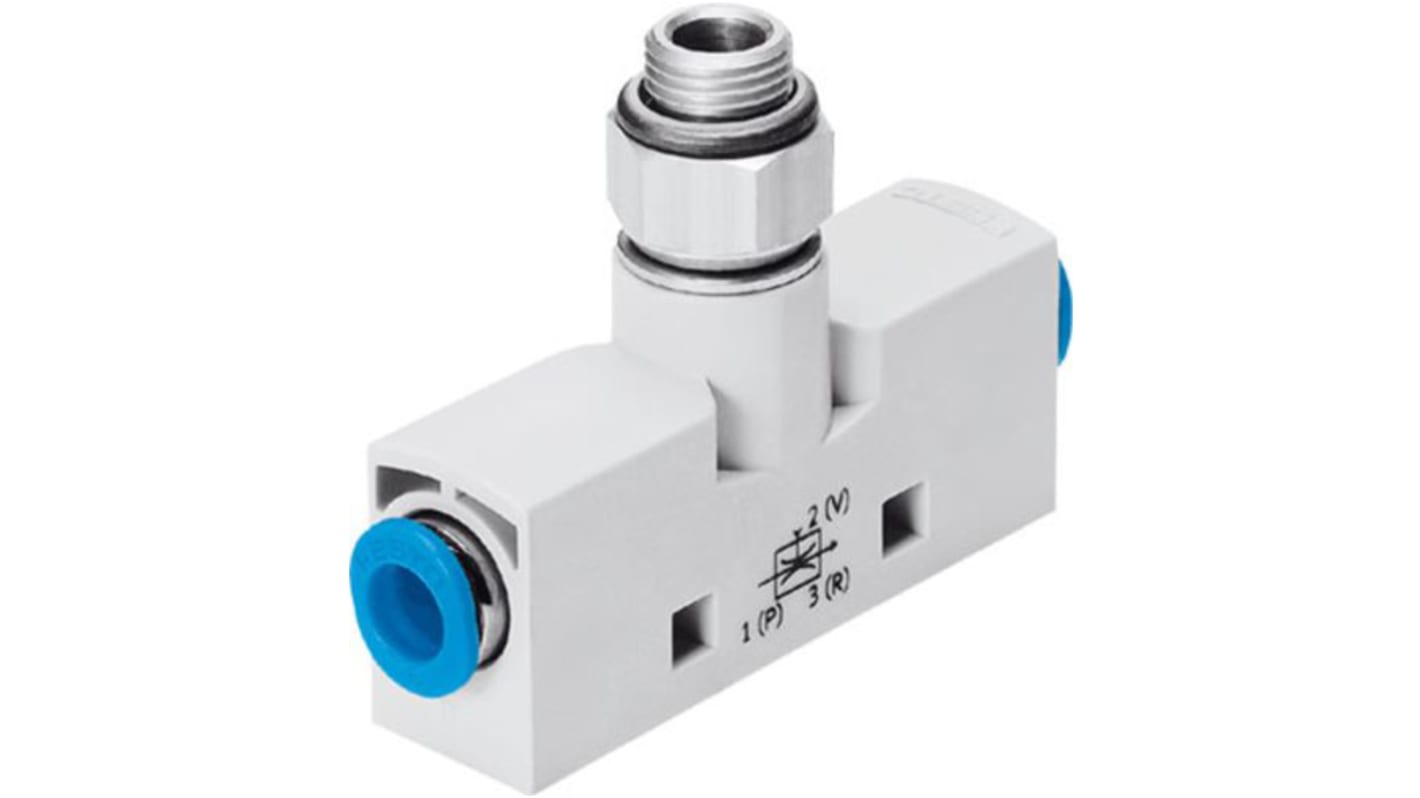

Festo Vacuum Pump, 0.95mm nozzle , 4.5bar 25L/min, VN series
- RS Stock No.:
- 204-0143
- Mfr. Part No.:
- VN-10-H-T3-PQ2-VA4-RQ2
- Brand:
- Festo
Subtotal (1 unit)*
£54.91
(exc. VAT)
£65.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £54.91 |
*price indicative
- RS Stock No.:
- 204-0143
- Mfr. Part No.:
- VN-10-H-T3-PQ2-VA4-RQ2
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Suction Flow | 25L/min | |
Maximum Vacuum Pressure | 4.5bar | |
Nozzle Diameter | 0.95mm | |
Manufacturer Series | VN | |
Maximum Input Pressure | 6bar | |
Operating Pressure | 1 to 8bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Suction Flow 25L/min | ||
Maximum Vacuum Pressure 4.5bar | ||
Nozzle Diameter 0.95mm | ||
Manufacturer Series VN | ||
Maximum Input Pressure 6bar | ||
Operating Pressure 1 to 8bar | ||
- COO (Country of Origin):
- HU
The Festo VN series vacuum generator is standard and high vacuum used with T shape with push-in connector vacuum connection with male thread. It nominal nozzle size is 0.95mm and its maximum operating pressure vacuum is 4.5 bar. Its pneumatic connection port1 QS-6 with through-hole mounting.
Ambient temperature 0 °C to 60 °C
Free of copper and PTFE
Free of copper and PTFE
