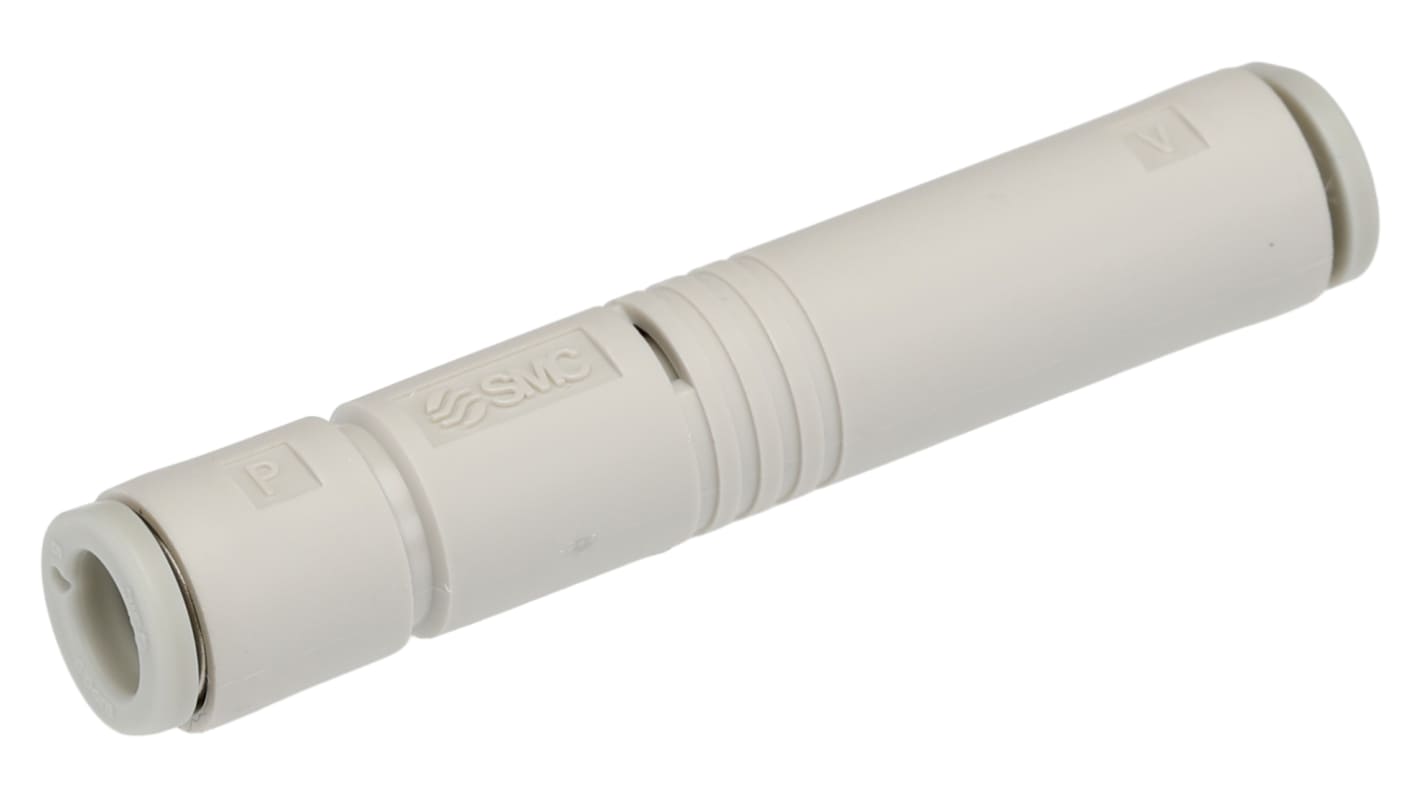

SMC Vacuum Generator, 0.7mm nozzle , -90kPa 11L/min, ZU07 series

View all Vacuum Generators
Bulk discount available

Subtotal (1 unit)*

£19.50

(exc. VAT)

£23.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 90 unit(s) ready to ship
  • Plus 19 unit(s) ready to ship from another location
  • Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£19.50
5 - 9£18.73
10 +£18.35

*price indicative

RS Stock No.:
183-7526
Distrelec Article No.:
154-23-962
Mfr. Part No.:
ZU07SA
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Maximum Suction Flow

11L/min

Maximum Vacuum Pressure

-90kPa

Nozzle Diameter

0.7mm

Manufacturer Series

ZU07

Maximum Input Pressure

0.45MPa

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-5°C

COO (Country of Origin):
JP

SMC ZU07 Series Vacuum Generator, 11 L/min Maximum Suction Flow, -90 kPa Maximum Vacuum Pressure - ZU07SA


This vacuum generator is designed for high efficiency in industrial applications. It operates with a maximum suction flow rate of 11 L/min and reaches an impressive maximum vacuum pressure of -90 kPa. The unit features a nozzle diameter of 0.7mm, making it versatile for various pneumatic tasks. Ideal for integration into automation systems, this generator operates effectively across temperature ranges from -5 °C to +50 °C.

Features & Benefits


• Lightweight resin construction ensures easy installation
• In-line design reduces space requirements in systems
• High vacuum efficiency optimises suction for various tasks
• One-touch fittings simplify connections for swift setups
• Safely handles maximum input pressure of 0.45 MPa
• Vacuum performance remains consistent across specified temperatures

Applications


• Suitable for use in assembly line automation
• Ideal for material handling and pick-and-place operations
• Effective in packaging processes requiring vacuum suction
• Utilised in electronics manufacturing for component handling

What is the compatibility of this device with different tubing?


The generator is designed to accommodate tubing with outer diameters of 5mm and 6mm, providing flexibility for diverse piping needs.

How does the design ensure efficient performance in automated systems?


The in-line type facilitates streamlined integration into existing piping layouts, allowing for effective operation without compromising system space.

What precautions should be taken during installation regarding pipe connections?


It is essential to avoid excessive loads or moments on the ejector body to maintain functional integrity and prevent damage during operation.
