RS PRO Drive Belt, belt section XPZ, 1010mm Length
- RS Stock No.:
- 205-6779
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£5.33
(exc. VAT)
£6.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.33 |
| 5 - 9 | £5.13 |
| 10 - 24 | £5.02 |
| 25 + | £4.89 |
*price indicative
- RS Stock No.:
- 205-6779
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Belt Section | XPZ | |
| Outer Length | 1023mm | |
| Datum Length | 1010mm | |
| Inside Length | 934mm | |
| Series | XP | |
| Top Width | 9.7mm | |
| Height | 8mm | |
| Material | Rubber | |
| Minimum Pulley Diameter | 50mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 1010mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Belt Section XPZ | ||
Outer Length 1023mm | ||
Datum Length 1010mm | ||
Inside Length 934mm | ||
Series XP | ||
Top Width 9.7mm | ||
Height 8mm | ||
Material Rubber | ||
Minimum Pulley Diameter 50mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Length 1010mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

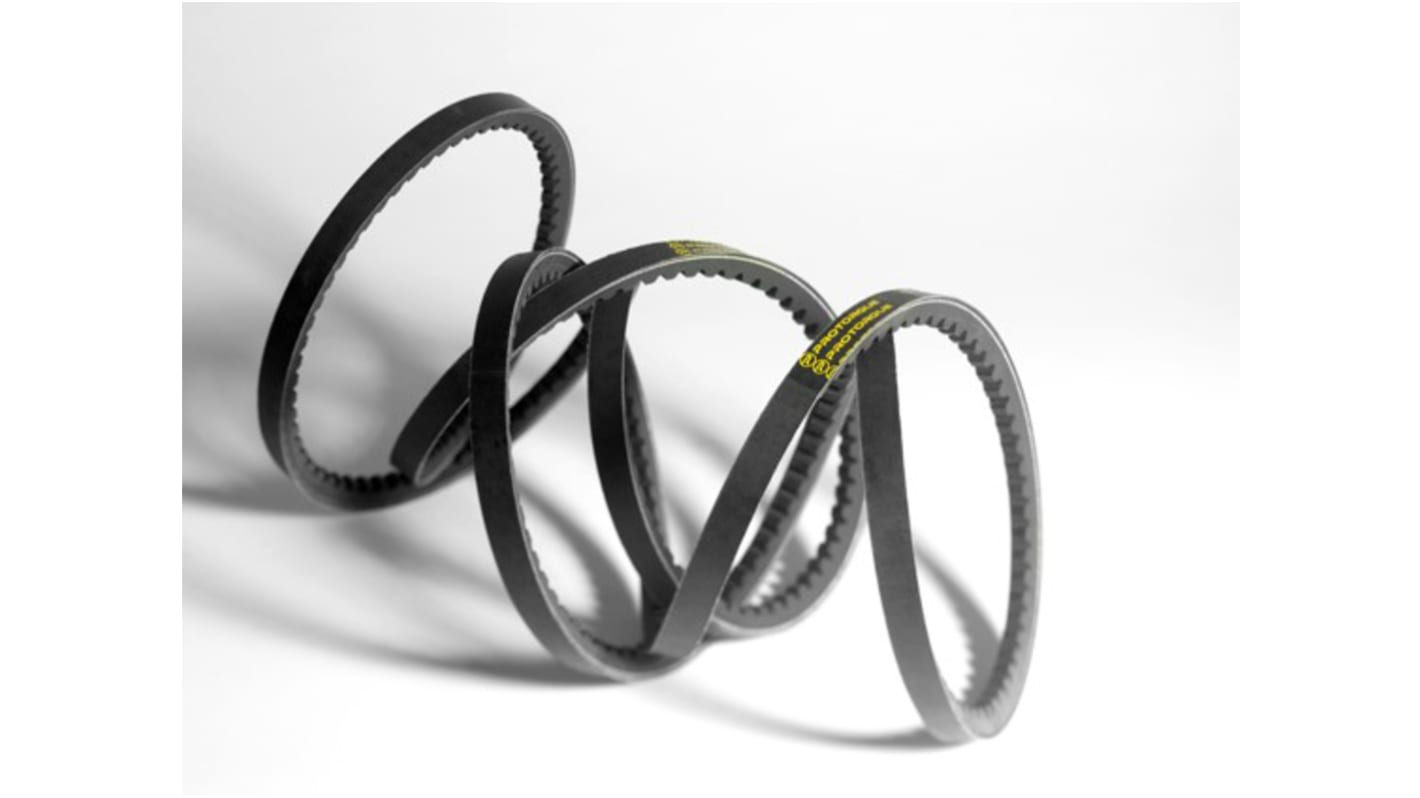

RS PRO Cogged Wedge Belt
Introducing the range of RS PRO Cogged Wedge Belts, ideal for applications that require optimum performance under more demanding conditions. The narrower design combined with the cogged slots and deeper cushioning allows for more compact, higher power and heavier-duty drives, in comparison to V belts. In addition to this, the RS PRO belts offer low slip, higher efficiency and longer service life, meaning less downtime for inspection, maintenance and repairs.
Features and Benefits:
- The high-quality RS PRO Cogged Wedge Belts are ideal for applications that require optimum performance and long service life under more demanding conditions
- By using a narrower design with cogged cushions, this belt offers more a compact, higher power and heavier duty drive than other types of belts
- The multi-layered industrial fabric supports tension cords to encourage effortless flexibility and cooler running, providing longer service life
- In addition to this, the increased power capacity compared to standard V belts allows for space and weight saving drives, that result in in significant cost savings
- Thanks to the optimal cog pattern, the belt can sustain higher dynamic power transmissions and reduced bending stresses
- This RS PRO cogged belt is suitable for transmitting the same power with fewer belts, or even extending the drive life of auxiliary components
Applications:
Cogged belts are a type of belt that have slots that run horizontally to the belts length to increase the flexibility and service life of it. Because they are more flexible than standard belts, they generally run cooler and have a better coefficient of friction which reduces the chance of belt slip, improve the service life of the belt, as well as the auxiliary pulleys that are being run by it, and can often tolerate applications where belt speeds are high. Cogged belts are now a commonly used component in:
- Automotive maintenance and repair
- Mining and quarrying
- Packaging
- Material handling
- Processing industries
- HVAC
Standards and Certifications:
- ISO 4184
