Bulk discount available
Subtotal (1 unit)*
£16.02
(exc. VAT)
£19.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 05 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £16.02 |
| 5 - 9 | £15.71 |
| 10 - 24 | £15.37 |
| 25 + | £15.04 |
*price indicative
- RS Stock No.:
- 173-9991
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |

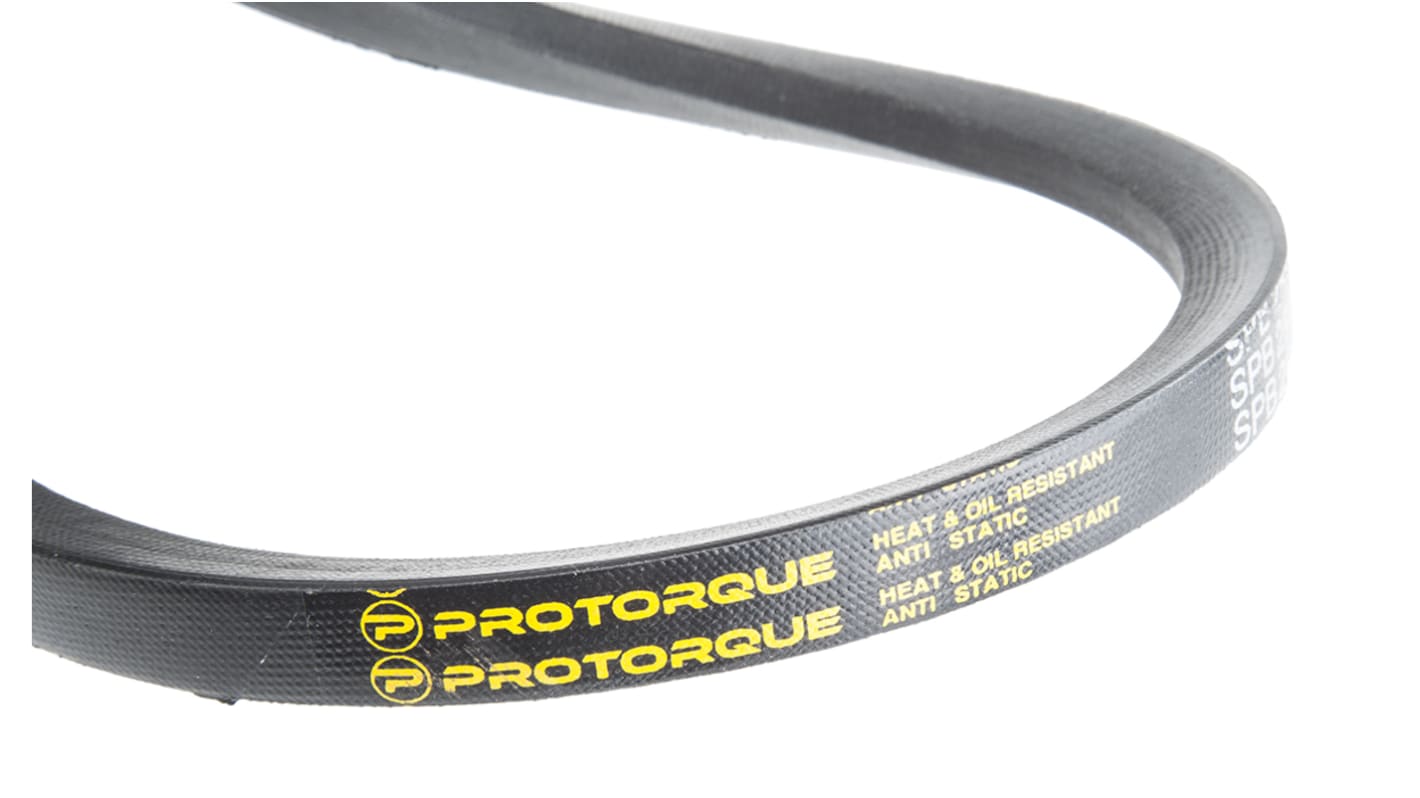

| Product Type | Drive Belt | |
| Belt Section | SPB | |
| Sub Type | Wedge Belt | |
| Series | SPB | |
| Belt Material | Rubber | |
| Cord Material | Polyester | |
| Belt Width | 16.3mm | |
| Outside Length | 2020mm | |
| Minimum Operating Temperature | -40°C | |
| Belt Height | 13mm | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHs and Reach | |
| Inside Length | 1960mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Drive Belt | ||
Belt Section SPB | ||
Sub Type Wedge Belt | ||
Series SPB | ||
Belt Material Rubber | ||
Cord Material Polyester | ||
Belt Width 16.3mm | ||
Outside Length 2020mm | ||
Minimum Operating Temperature -40°C | ||
Belt Height 13mm | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHs and Reach | ||
Inside Length 1960mm | ||
- COO (Country of Origin):
- CN
High Performance Wedge Belts are designed to deliver as much as double the power of conventional V Belts. This makes them suitable for all industrial applications where space, weight and high horsepower capacity are important.
Deeper profile promotes higher power
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
