Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Belt Section | SPZ | |
| Outer Length | 2253mm | |
| Datum Length | 2240mm | |
| Inside Length | 2202mm | |
| Top Width | 9.7mm | |
| Height | 8mm | |
| Material | Rubber | |
| Minimum Pulley Diameter | 63mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 2240mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Belt Section SPZ | ||
Outer Length 2253mm | ||
Datum Length 2240mm | ||
Inside Length 2202mm | ||
Top Width 9.7mm | ||
Height 8mm | ||
Material Rubber | ||
Minimum Pulley Diameter 63mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Length 2240mm | ||
- COO (Country of Origin):
- CN

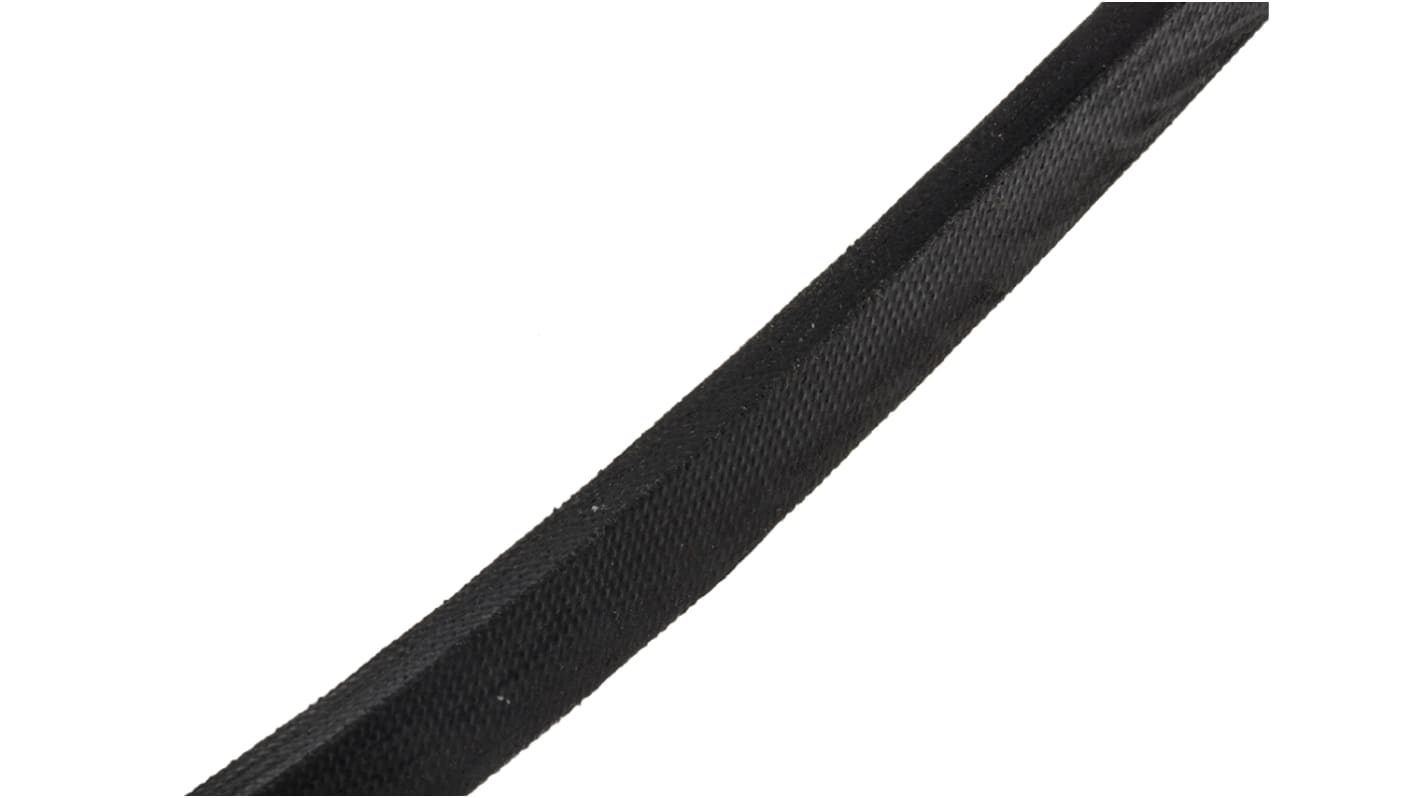

High Performance Wedge Belts are designed to deliver as much as double the power of conventional V Belts. This makes them suitable for all industrial applications where space, weight and high horsepower capacity are important.
Deeper profile promotes higher power
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
Consistent length
Temperature operating range from -40 deg C to +70 deg C
Oil, heat and ozone resistant
Antistatic
Excellent abrasion and wear resistance
