VLMU35CR41-275-120 Vishay, UVC LED, 265 → 280mm 37mW
- RS Stock No.:
- 253-7099
- Mfr. Part No.:
- VLMU35CR41-275-120
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 253-7099
- Mfr. Part No.:
- VLMU35CR41-275-120
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Number of LEDs | 1 | |
| UV Type | UVC | |
| Peak Wavelength | 265 → 280mm | |
| Radiant Flux | 37mW | |
| Package Type | SMT Ceramic | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Number of LEDs 1 | ||
UV Type UVC | ||
Peak Wavelength 265 → 280mm | ||
Radiant Flux 37mW | ||
Package Type SMT Ceramic | ||

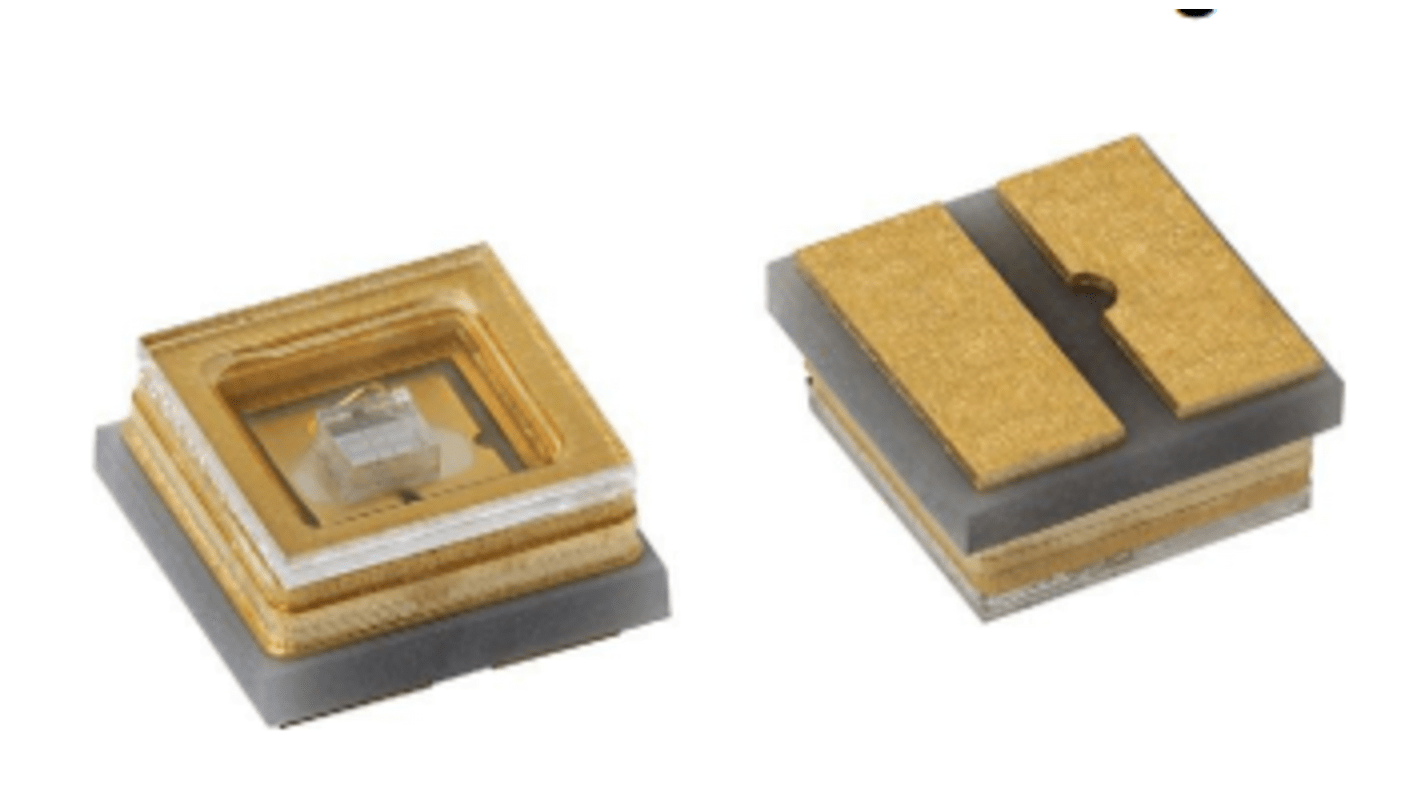

The Vishay high efficiency UVC LED with focus on maximum mW per dollar. The package size is 3.45 mm x 3.45 mm x 1.7 mm and the radiant power is typically 37 mW at 250 mA in a wavelength range of 265 nm to 280 nm, highly suitable for sterilization applications. The thermally optimized package technology with ceramic substrate and a quartz window, ensures a long service life.
Ceramic SMT package with quartz window
DC forward current up to 300 mA
Leads and terminations finish are gold plated
Reflow soldering method
DC forward current up to 300 mA
Leads and terminations finish are gold plated
Reflow soldering method
